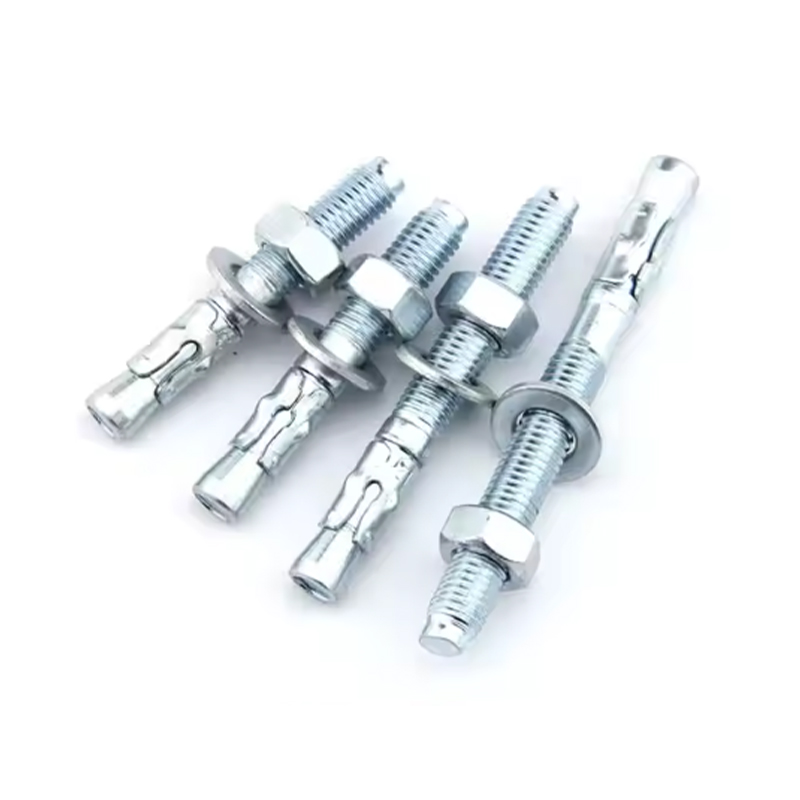

1. How to use：When using the wedge anchor, you need to first use an impact electric drill to drill a hole of the corresponding size on the fixed body, then install the bolt and expansion tube into the hole, and tighten the nut to expand the bolt, expansion tube, mounting piece and fixed body into one.
2. Characteristics: Wedge Anchors do not have high requirements for the depth and cleanliness of concrete cavities and are easy to install.
3. Application: Wedge anchors are usually used in heavy-duty facilities and are suitable for concrete and dense natural stone, metal structures, metal profiles, base plates, support plates, brackets, railings, windows, curtain walls, machines, beams, girders, brackets, etc.
| Product Name | Wedge Anchor |
| Material | Carbon steel, Stainless steel |

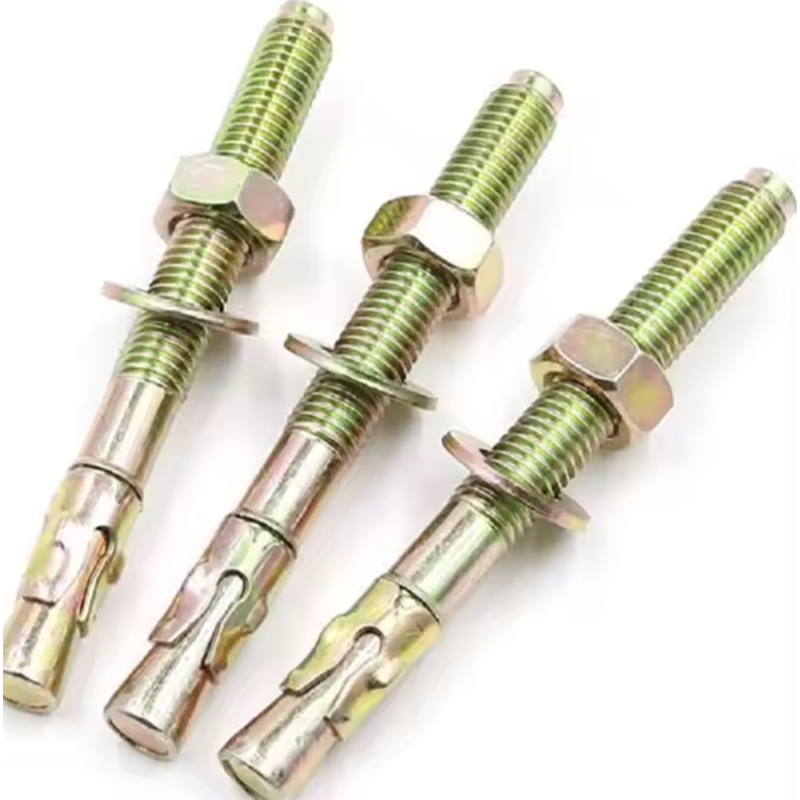

| Surface Finish | Yellow zinc, Blue and white zinc, Bleached |
| Colour | Yellow, Blue White, White |
| Standard Number | DIN,ASME,ASNI,ISO |
| Grade | 4 8 10 A2-70 |
| Diameter | M6 M8 M10 M12 M14 M16 M20 M24 |
| Thread form | Coarse thread, Fine thread |
| Place of origin | Hebei, China |
| Brand | Muyi |
| Pack | Box+cardboard carton+pallet |
| The product can be customized | |
| 1. How to use：When using the wedge anchor, you need to first use an impact electric drill to drill a hole of the corresponding size on the fixed body, then install the bolt and expansion tube into the hole, and tighten the nut to expand the bolt, expansion tube, mounting piece and fixed body into one. 2. Characteristics: Wedge Anchors do not have high requirements for the depth and cleanliness of concrete cavities and are easy to install. 3. Application: Wedge anchors are usually used in heavy-duty facilities and are suitable for concrete and dense natural stone, metal structures, metal profiles, base plates, support plates, brackets, railings, windows, curtain walls, machines, beams, girders, brackets, etc. |
|

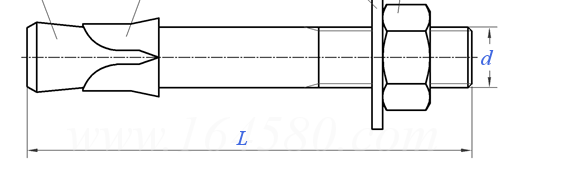

| Thread Spec d |
M6 | M8 | M10 | M12 | M14 | M16 | M20 | M24 | ||
| L | 40 | 50 | 60 | 70 | 80 | 85 | 120 | 190 | ||
| 45 | 55 | 65 | 75 | 95 | 90 | 125 | 215 | |||
| 55 | 60 | 70 | 80 | 110 | 100 | 160 | 250 | |||
| 65 | 65 | 75 | 85 | 130 | 105 | 170 | 300 | |||
| 70 | 70 | 80 | 90 | 160 | 120 | 180 | / | |||
| 85 | 75 | 85 | 95 | 180 | 125 | 200 | / | |||
| 100 | 80 | 90 | 100 | / | 140 | 215 | / | |||
| / | 85 | 95 | 115 | / | 145 | 220 | / | |||
| / | 90 | 100 | 120 | / | 150 | 260 | / | |||
| / | 95 | 115 | 130 | / | 175 | 160 | / | |||
| / | 100 | 120 | 135 | / | 180 | 180 | / | |||
| / | 105 | 130 | 140 | / | 190 | 200 | / | |||
| / | 110 | 140 | 150 | / | 200 | / | / | |||
| / | 115 | 150 | 160 | / | 215 | / | / | |||
| / | 120 | 160 | 170 | / | 220 | / | / | |||
| / | 130 | / | 180 | / | 240 | / | / | |||
| / | 135 | / | 200 | / | 250 | / | / | |||
| / | / | / | 240 | / | / | / | / | |||
| / | / | / | 300 | / | / | / | / | |||
