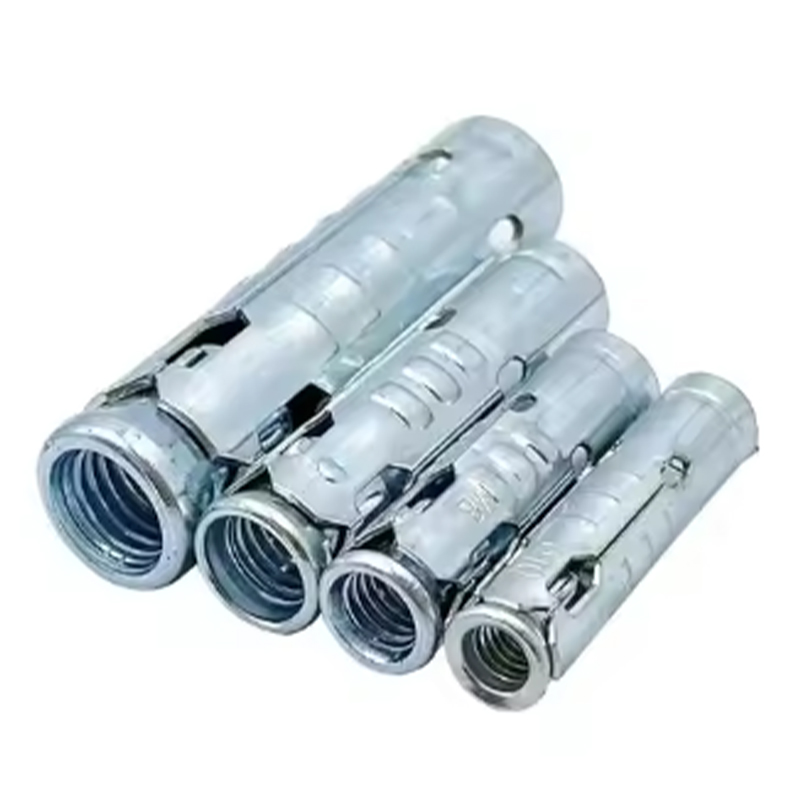

SS TAM Anchor

1. TAM Anchor is a special threaded connector, mainly used to fasten parts that need to withstand large tensile forces, such as bridges, buildings, etc.
2. Application:Tam anchors are widely used in many industries. In the auto maintenance industry, they are often used to fix and install lifts. In the construction industry, tam anchors can be used to fix various building accessories. In the hardware manufacturing industry, it can be used with other types of expansion bolts to fix various building components. Tam anchors can also be used in other occasions where pipes or equipment need to be fixed.

Submit application



Description

sign

Product Name	TAM Anchor
Material	Carbon steel, Stainless steel
Surface Finish	Yellow zinc, Blue and white zinc, Bleached
Colour	Yellow, Blue White, White
Standard Number	DIN,ASME,ASNI,ISO
Grade	4 8 10 A2-70
Diameter	M6 M8 M10 M12
Thread form	Coarse thread, Fine thread
Place of origin	Hebei, China
Brand	Muyi
Pack	Box+cardboard carton+pallet
The product can be customized
1. TAM Anchor is a special threaded connector, mainly used to fasten parts that need to withstand large tensile forces, such as bridges, buildings, etc. 2. Application:Tam anchors are widely used in many industries. In the auto maintenance industry, they are often used to fix and install lifts. In the construction industry, tam anchors can be used to fix various building accessories. In the hardware manufacturing industry, it can be used with other types of expansion bolts to fix various building components. Tam anchors can also be used in other occasions where pipes or equipment need to be fixed.

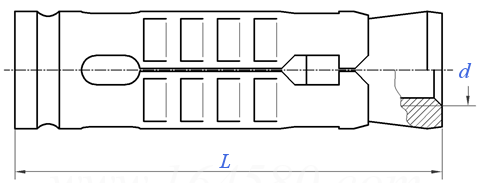

Size	Length	Drill diameter	Drill Depth	Setting Depth Min
M6	45	10	50	45
M8	50	12	55	50
M10	55	15	60	55
M12	70	18	75	70

Packing and delivery
