1. Sheep eye screws, also known as sheep eye, sheep eye rings, sheep eye nails, sheep eye screws, etc., are widely used in jewelry, toys, craft gifts, a variety of wooden handles and other hanging accessories, and is also one of the commonly used hardware accessories for architectural decoration.
2. Widely used : the eye bolt has the hanging function, which can be used to hang architectural ornaments under the suspended ceiling of cement precast board, wood board, gypsum board, decorative board or other plates; The eye bolt has large section diameter, long screw and thread length, and is safe and stable and not easy to loose when installed on the ceiling

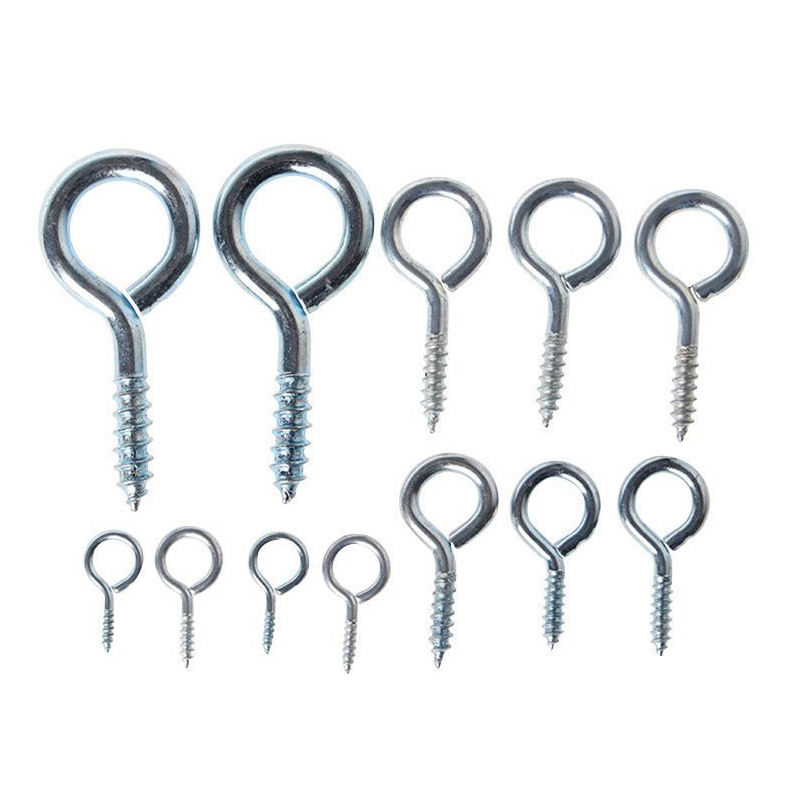

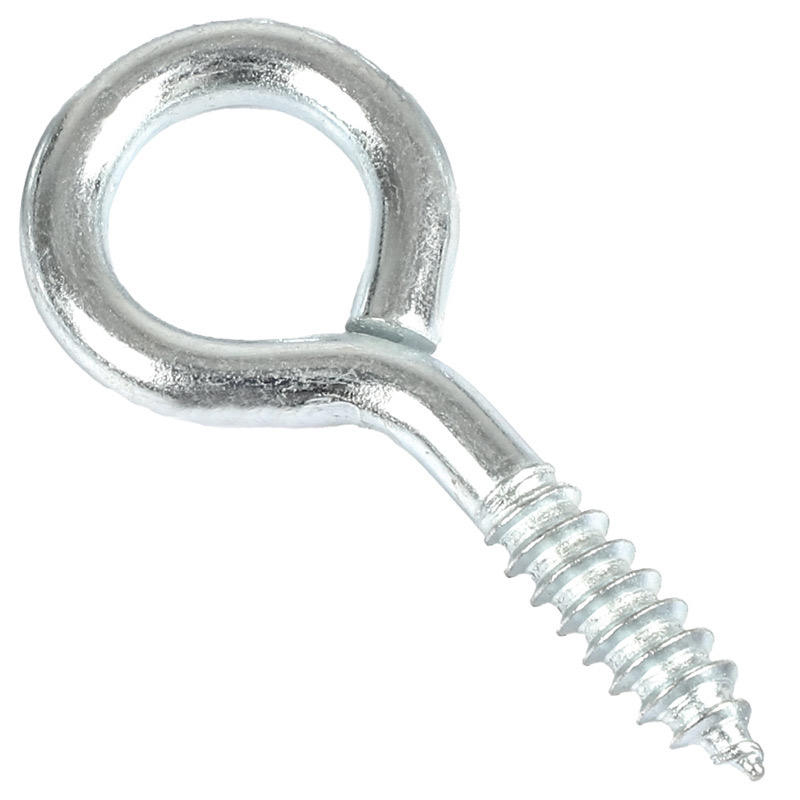

| Product Name | Self-tapping eye screws (closed) |
| Material | Carbon steel, Stainless steel |
| Surface Finish | Yellow zinc, Blackened, Blue and white zinc, Bleached |
| Colour | Yellow, Black, Blue White, White |
| Grade | 4.8/6.8/8.8/10.9/12.9 ; A2-70 |
| Diameter | 0#,1#,2#,3#,4#,5#,6#,8#,10#,12#,14# |
| Thread form | Coarse thread, Medium thread, Fine thread |
| Place of origin | Hebei, China |
| Brand | Muyi |
| Pack | Box+cardboard carton+pallet |
| The product can be customized | |
| 1. Sheep eye screws, also known as sheep eye, sheep eye rings, sheep eye nails, sheep eye screws, etc., are widely used in jewelry, toys, craft gifts, a variety of wooden handles and other hanging accessories, and is also one of the commonly used hardware accessories for architectural decoration.
2. Widely used : the eye bolt has the hanging function, which can be used to hang architectural ornaments under the suspended ceiling of cement precast board, wood board, gypsum board, decorative board or other plates; The eye bolt has large section diameter, long screw and thread length, and is safe and stable and not easy to loose when installed on the ceiling |
|

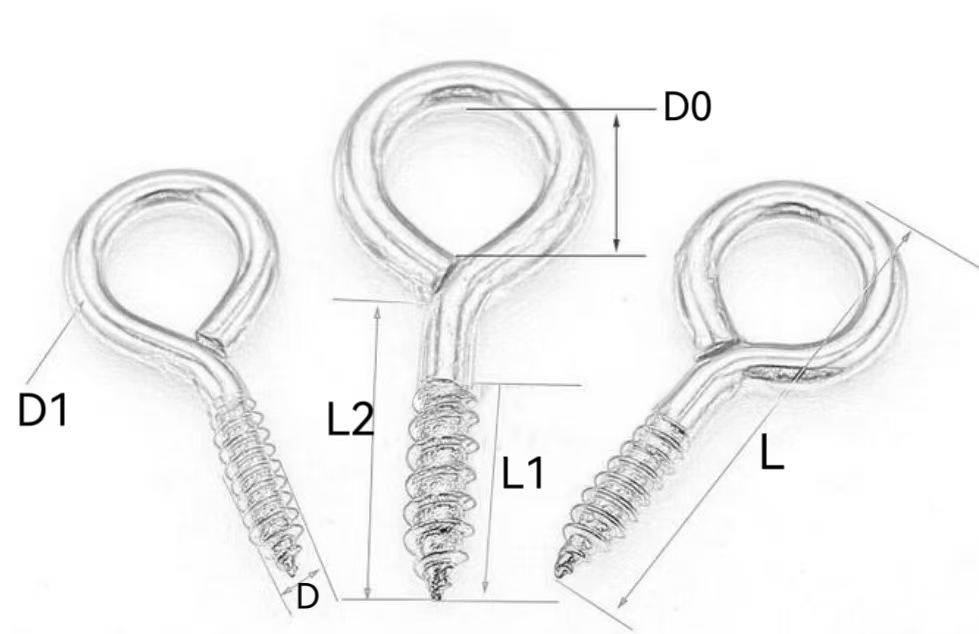

| Size | 0# | 1# | 2# | 3# | 4# | 5# | 6# | 8# | 10# | 12# | 14# |
| Thread diameter D |
1.65 | 1.84 | 2.03 | 2.32 | 2.83 | 2.94 | 3.66 | 4.07 | 4.72 | 5.12 | 6.03 |
| Total length L |
16.30 | 16.61 | 19.22 | 22.41 | 28.08 | 28.22 | 28.61 | 35.22 | 41.91 | 44.06 | 51.78 |
| Thread length L1 |
6.0 | 6.45 | 7.82 | 8.53 | 11.84 | 12.54 | 12.48 | 13.57 | 15.93 | 16.73 | 19.18 |
| Rod length L2 |
8.01 | 10.54 | 12.30 | 15.39 | 14.78 | 14.63 | 18.77 | 21.48 | 23.19 | 26.09 | |
| Rod diameter D1 |
1.49 | 1.77 | 1.89 | 2.38 | 2.47 | 2.98 | 3.31 | 3.74 | 4.13 | 4.94 | |
| Inside diameter D0 |
5.0 | 5.98 | 6.62 | 7.02 | 7.40 | 7.90 | 8.00 | 9.76 | 11.82 | 13.42 | 14.20 |
