1. TAM Anchor is a special threaded connector, mainly used to fasten parts that need to withstand large tensile forces, such as bridges, buildings, etc. 2. Application:Tam anchors are widely used in many industries. In the auto maintenance industry, they are often used to fix and install lifts. In the construction industry, tam anchors can be used to fix various building accessories. In the hardware manufacturing industry, it can be used with other types of expansion bolts to fix various building components. Tam anchors can also be used in other occasions where pipes or equipment need to be fixed.

1.The good expansion curve design greatly enhances the anchoring force of the anchor bolt, and the edge of the tube head can effectively prevent the expansion screw from entering the deep inside the hole due to drilling too deep 2. Widely used ‌ :Concrete, natural dense stone, solid brick, solid gray sand brick light concrete, hollow concrete brick, etc.;

1.Installation steps: ① Punch a hole ② Hammer the casing into the air ③ Screw the screw into the wall anchor ④ Installation is complete 2.Scope of application: Suitable for home decoration, industrial building materials, medical equipment, etc. 3.Product features: small and light, easy to carry, easy to take, strong and durable

Hollow wall anchor bolts, also known as hollow wall anchors or hollow expansion screws, are mainly used in hollow walls, gypsum boards, fiberboards, plastic boards, wooden boards and other walls. They are light load anchor bolts. The heads and nuts at both ends are of two types: “welded” and “integrated”. They can be directly installed with an electric screwdriver or pulled with special tools. Installation method: 1. The teeth on the head of the casing can be embedded in the hollow substrate, which can effectively prevent the casing from rotating in the hole during installation. 2. After installation, the expansion arm is opened behind the hollow substrate to form a large radius and large area of ​​contact, providing a reliable anchoring effect. 3. The matching screws can be easily removed, and the mounting parts can be repeatedly disassembled and assembled without affecting the anchoring effect. 4. Ordinary flat-blade or cross screwdrivers can be used for installation. If special installation tools are used, it can be more suitable for large-scale professional use occasions.

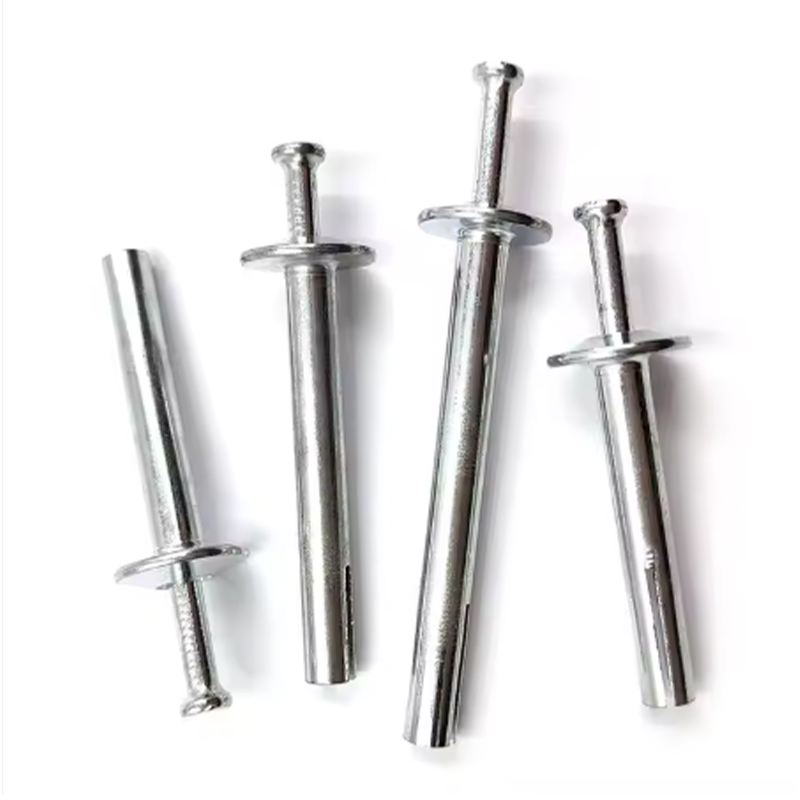

How to use:The new American-style core expansion nail only needs to make a 6mm hole on the ground or wall. The depth is the same as that of the expansion nail. Put the expansion nail into the hole and hammer the head of the expansion nail with a hammer. The tail of the core nail will expand during the hammering process. The nail will be tightly stuck in the casing and will not be pulled out. The use process saves time and effort, and is more beautiful than the pull-out screw. ① Drill a hole in the wall according to the size requirements; ②Insert the expansion screw through the fixed object into the hole; ③Hit the iron nail to expand the inside.

1.the small yellow croaker expansion screw is relatively strong, the small yellow croaker expansion screw tension is strong, can better play a fixed and stable role. When installing, be sure to tighten, screw in place, and then beat with a hammer, not only beautiful knot reliable with firm and stable fixed stable effect is particularly good. 2. especially suitable for hanging, arch structure, outdoor walls, stairs, radiators and other different occasions of columns, Angle steel, beams and other parts fixed and supported. The crosshead expansion screw is a kind of expansion screw, which is characterized by a variety of dimensions, convenient installation and firm fixing. Small yellow croaker expansion screw, the appearance is like a small fish, its main feature is shaped like a “hollow bolt” and has good expansion.

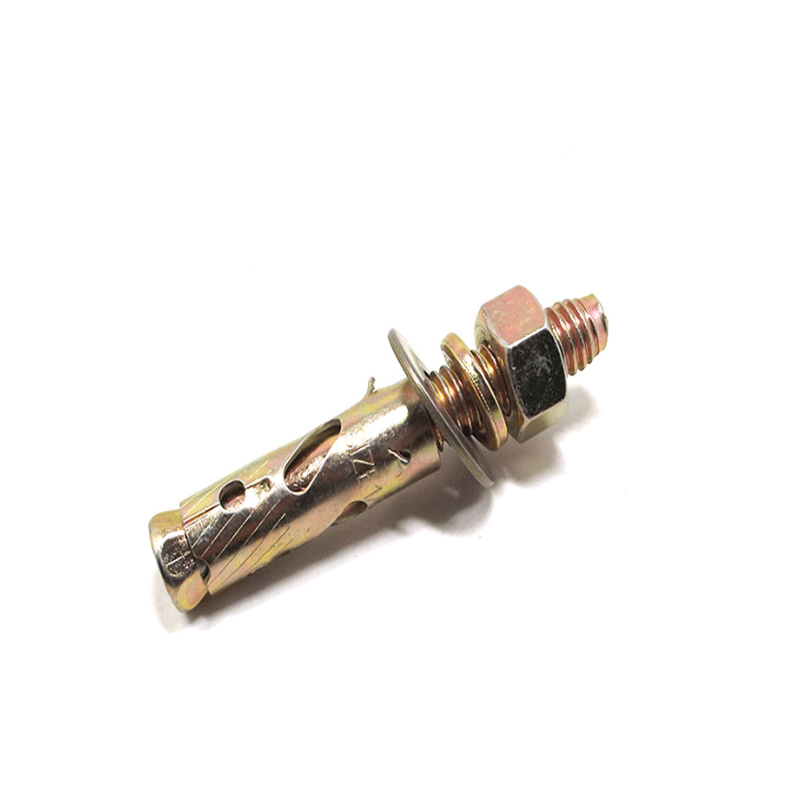

1.The sleeve anchor allows it to anchor into concrete, bricks and blocks. The sleeve anchor works when you insert the sleeve anchor into the pre-drilled hole in the substrate and then turn the nut to pull the working end of the sleeve anchor up through the sleeve. The anchor is then expanded and firmly anchored into the concrete, brick or block. The anchors are available in galvanized and stainless steel. The sleeve anchor is fully assembled and ready to use. 2.Suitable for all kinds of steel structures, cable lines, brackets, gates, stairs, steel ladders and other building components that bear heavy loads of vibration, with reliable post-expansion function for earthquake resistance and durability.

1. Metal-frame anchor are mainly used for expansion anchors of doors and windows. The product is mainly composed of expansion tube screw taper nut.It can firmly fix machines, doors and windows, structural parts, equipment or various appliances on walls, bases or concrete foundations. 2. Advantage: Metal frame anchors have many advantages such as simple installation, firm fixation and convenient construction. 3. Application: Metal frame anchors are widely used in many industries, such as door and window installation, floor installation, fixing heavy objects, etc. In the decoration industry, they can be used to fix decoration materials.

1. How to use：When using the wedge anchor, you need to first use an impact electric drill to drill a hole of the corresponding size on the fixed body, then install the bolt and expansion tube into the hole, and tighten the nut to expand the bolt, expansion tube, mounting piece and fixed body into one. 2. Characteristics: Wedge Anchors do not have high requirements for the depth and cleanliness of concrete cavities and are easy to install. 3. Application: Wedge anchors are usually used in heavy-duty facilities and are suitable for concrete and dense natural stone, metal structures, metal profiles, base plates, support plates, brackets, railings, windows, curtain walls, machines, beams, girders, brackets, etc.

1. How to use: ① Drill a hole equal to the diameter of the anchor to the smallest size. ② Clear the hole and insert the anchor into the hole with a hammer ③ Tighten the nut to expand the anchor to fix the object 2. Application: ① Can be used for concrete, blocks, bricks, stones, steel structures, machines, doors, stairs, floors ② Can be used to repair the load of exterior walls or windows

1. The products are generally carbon steel or stainless steel, and the surface of carbon steel is cold and hot galvanized and dacromet surface treatment. It is suitable for light steel keel ceiling, ventilation pipe, cable bridge, tunnel and other anchoring parts that need to be suspended. Anchors are divided into medium and light duty series and can also be specially designed and processed according to customer requirements. 2. Widely used ‌ : mainly used in heavy anchoring occasions, such as mechanical equipment anchor, elevator support anchor, curtain wall ceiling and other heavy anchoring occasions. Customers can choose bolts with various head functions according to actual needs, such as outer hexagon bolts, C-hook bolts, O-shaped eye bolts, etc

1. Core type expansion bolt is a common connector, widely used in construction, bridge, mechanical equipment and other fields. It has the advantages of simple installation, high bearing capacity, good seismic performance and so on 2 Core expansion is mainly used in buildings to install suspended ceilings, walls, steel structures, wire trough pipe supports, air pipes, door and window frames and other places that need to be fixed. The expansion anchor has the characteristics of simple installation, reliable, strong bearing capacity and wide application range. At the same time, it can also adjust the distance between the fixed object and the substrate by tightening the screws.
