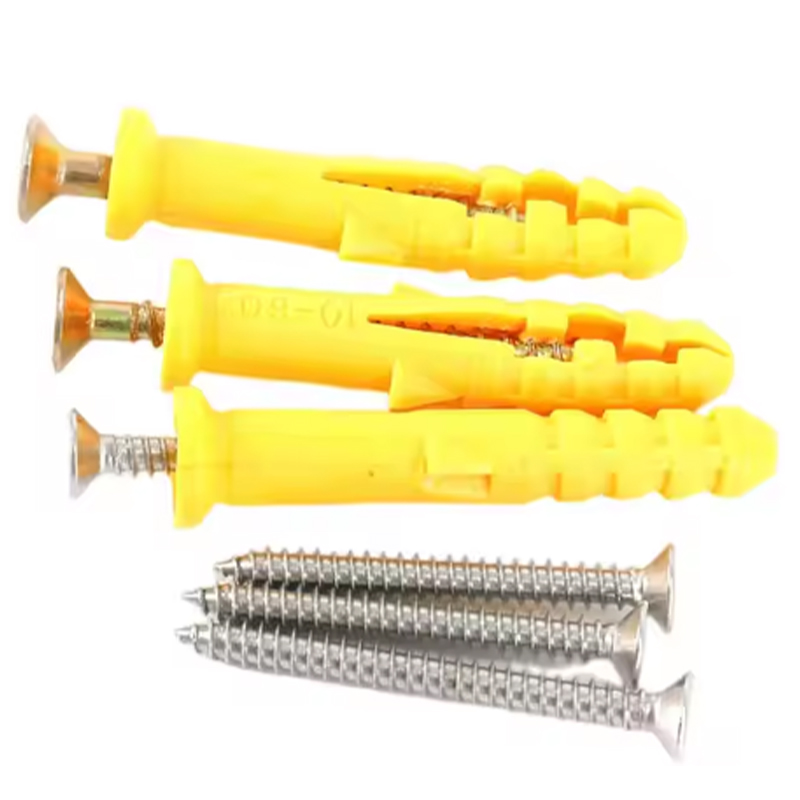

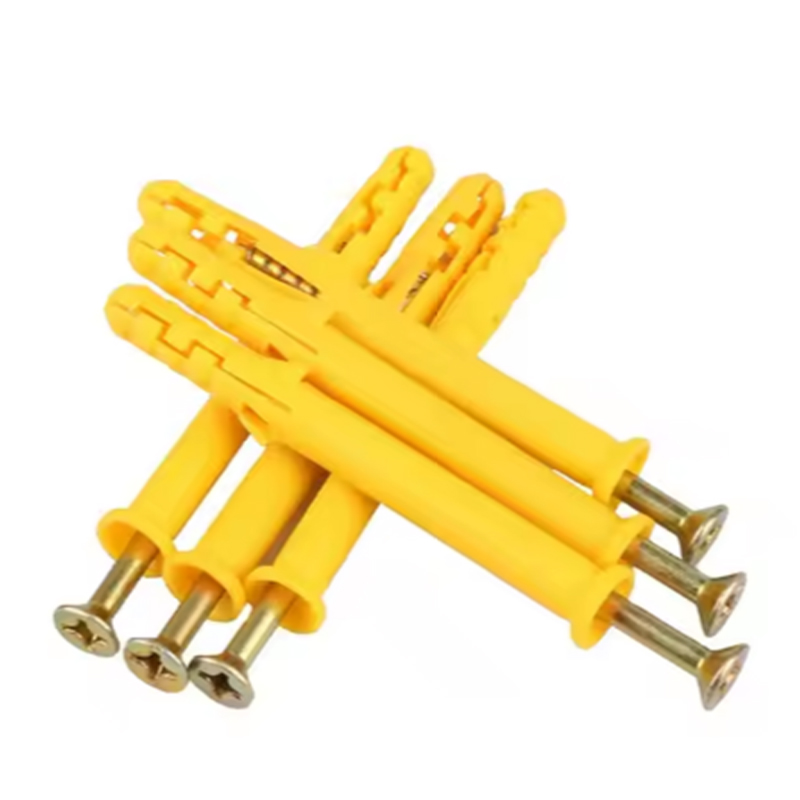

1.the small yellow croaker expansion screw is relatively strong, the small yellow croaker expansion screw tension is strong, can better play a fixed and stable role. When installing, be sure to tighten, screw in place, and then beat with a hammer, not only beautiful knot reliable with firm and stable fixed stable effect is particularly good.
2. especially suitable for hanging, arch structure, outdoor walls, stairs, radiators and other different occasions of columns, Angle steel, beams and other parts fixed and supported. The crosshead expansion screw is a kind of expansion screw, which is characterized by a variety of dimensions, convenient installation and firm fixing. Small yellow croaker expansion screw, the appearance is like a small fish, its main feature is shaped like a “hollow bolt” and has good expansion.
| Product Name | Plastic Rubber Plug Nylon Expansion Anchor |
| Material | Carbon steel, Stainless steel |
| Surface Finish | Yellow zinc, Blue and white zinc, Bleached |
| Colour | Yellow, Blue White, White |
| Standard Number | DIN/GB/ISO |
| Grade | 4.8 6.8 8.8 10.9 A2-70 |
| Diameter | M5*30 M5*40 M5*50 M6*35 M6*40 M6*50 M6*60 M6*70 M6*80 M8*40 M8*60 M8*80 M8*100 M8*120 M8*160 M8*160 M10*80 M10*100 M10*120 M10*135 M10*160 M10*180 |
| Thread form | Coarse thread, Fine thread |
| Place of origin | Hebei, China |
| Brand | Muyi |
| Pack | Box+cardboard carton+pallet |
| The product can be customized | |
| 1.the small yellow croaker expansion screw is relatively strong, the small yellow croaker expansion screw tension is strong, can better play a fixed and stable role. When installing, be sure to tighten, screw in place, and then beat with a hammer, not only beautiful knot reliable with firm and stable fixed stable effect is particularly good. 2. especially suitable for hanging, arch structure, outdoor walls, stairs, radiators and other different occasions of columns, Angle steel, beams and other parts fixed and supported. The crosshead expansion screw is a kind of expansion screw, which is characterized by a variety of dimensions, convenient installation and firm fixing. Small yellow croaker expansion screw, the appearance is like a small fish, its main feature is shaped like a "hollow bolt" and has good expansion. |
|

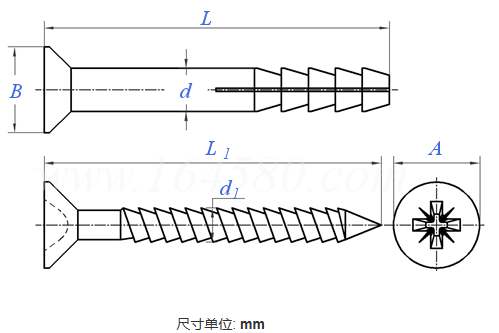

| Thread Spec D |
M5 | M5 | M5 | M6 | M6 | M6 | M6 | M6 | M6 | M8 | M8 | |
| ×30 | ×40 | ×50 | ×35 | ×40 | ×50 | ×60 | ×70 | ×80 | ×40 | ×60 | ||
| d | ±0.2 | 4.8 | 4.8 | 4.8 | 5.8 | 5.8 | 5.8 | 5.8 | 5.8 | 5.8 | 7.8 | 7.8 |
| B | ±0.3 | 8.6 | 8.6 | 8.6 | 9.5 | 9.5 | 9.5 | 9.5 | 9.5 | 9.5 | 11.8 | 11.8 |
| L | ±2 | 30 | 40 | 50 | 35 | 40 | 50 | 60 | 70 | 80 | 40 | 60 |
| d1 | 3.25~3.55 | 3.25~3.55 | 3.25~3.55 | 3.6~3.9 | 3.6~3.9 | 3.6~3.9 | 3.6~3.9 | 3.6~3.9 | 3.6~3.9 | 4.6~4.9 | 4.6~4.9 | |
| L1 | ±2 | 31 | 41 | 51 | 36 | 41 | 51 | 61 | 71 | 81 | 41 | 61 |
| A | 6.6~7.1 | 6.6~7.1 | 6.6~7.1 | 7.3~7.8 | 7.3~7.8 | 7.3~7.8 | 7.3~7.8 | 7.3~7.8 | 7.3~7.8 | 9.5~10.2 | 9.5~10.2 | |
| Thread Spec D |
M8 | M8 | M8 | M8 | M8 | M10 | M10 | M10 | M10 | M10 | M10 | |
| ×80 | ×100 | ×120 | ×140 | ×160 | ×80 | ×100 | ×120 | ×135 | ×160 | ×180 | ||
| d | ±0.2 | 7.8 | 7.8 | 7.8 | 7.8 | 7.8 | 9.8 | 9.8 | 9.8 | 9.8 | 9.8 | 9.8 |
| B | ±0.3 | 11.8 | 11.8 | 11.8 | 11.8 | 11.8 | 13.5 | 13.5 | 13.5 | 13.5 | 13.5 | 13.5 |
| L | ±2 | 80 | 100 | 120 | 140 | 160 | 80 | 100 | 120 | 135 | 160 | 180 |
| d1 | 4.6~4.9 | 4.6~4.9 | 4.6~4.9 | 4.6~4.9 | 4.6~4.9 | 5.6~6.0 | 5.6~6.0 | 5.6~6.0 | 5.6~6.0 | 5.6~6.0 | 5.6~6.0 | |
| L1 | ±2 | 81 | 101 | 121 | 141 | 161 | 81 | 101 | 121 | 136 | 161 | 181 |
| A | 9.5~10.2 | 9.5~10.2 | 9.5~10.2 | 9.5~10.2 | 9.5~10.2 | 10.8~11.6 | 10.8~11.6 | 10.8~11.6 | 10.8~11.6 | 10.8~11.6 | 10.8~11.6 | |
