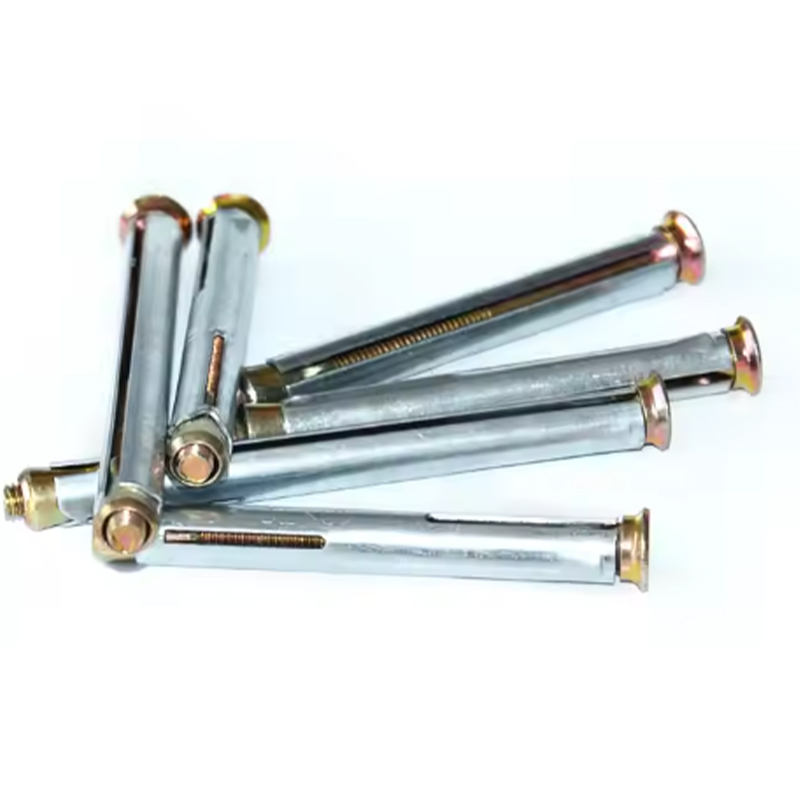

1. Metal-frame anchor are mainly used for expansion anchors of doors and windows. The product is mainly composed of expansion tube screw taper nut.It can firmly fix machines, doors and windows, structural parts, equipment or various appliances on walls, bases or concrete foundations.
2. Advantage: Metal frame anchors have many advantages such as simple installation, firm fixation and convenient construction.
3. Application: Metal frame anchors are widely used in many industries, such as door and window installation, floor installation, fixing heavy objects, etc. In the decoration industry, they can be used to fix decoration materials.
| Product Name | Metal-Frame Anchor |
| Material | Carbon steel, Stainless steel |
| Surface Finish | Yellow zinc, Blue and white zinc, Bleached |
| Colour | Yellow, Blue White, White |
| Standard Number | DIN,ASME,ASNI,ISO |
| Grade | 4 8 10 A2-70 |
| Diameter | M8 M10 |
| Thread form | Coarse thread, Fine thread |
| Place of origin | Hebei, China |
| Brand | Muyi |
| Pack | Box+cardboard carton+pallet |
| The product can be customized | |
| 1. Metal-frame anchor are mainly used for expansion anchors of doors and windows. The product is mainly composed of expansion tube screw taper nut.It can firmly fix machines, doors and windows, structural parts, equipment or various appliances on walls, bases or concrete foundations. 2. Advantage: Metal frame anchors have many advantages such as simple installation, firm fixation and convenient construction. 3. Application: Metal frame anchors are widely used in many industries, such as door and window installation, floor installation, fixing heavy objects, etc. In the decoration industry, they can be used to fix decoration materials. |
|

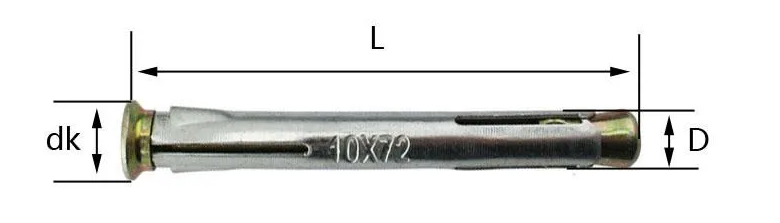

| Sizes | D | L | dk | Drilling Hole | |
| M8*72 | 8 | 82 | 10.5 | 8 | |
| M8*92 | 8 | 100 | 10.5 | 8 | |
| M8*112 | 8 | 120 | 10.5 | 8 | |
| M8*132 | 8 | 142 | 10.5 | 8 | |
| M8*152 | 8 | 162 | 10.5 | 8 | |
| M8*172 | 8 | 182 | 10.5 | 8 | |
| M10*52 | 10 | 62 | 13 | 10 | |
| M10*72 | 10 | 82 | 13 | 10 | |
| M10*92 | 10 | 102 | 13 | 10 | |
| M10*112 | 10 | 122 | 13 | 10 | |
| M10*132 | 10 | 142 | 13 | 10 | |
| M10*152 | 10 | 162 | 13 | 10 | |
| M10*182 | 10 | 190 | 13 | 10 | |
| M10*202 | 10 | 212 | 13 | 10 | |
1. Mechanical manufacturing: Hexagonal locking thin nuts are mainly used to connect and fix various mechanical components, such as screws, flanges, bearings, and camshafts, to ensure the normal operation of machines. 2. Automotive manufacturing: In the automotive manufacturing process, hexagonal locking thin nuts are used to connect and secure various automotive components such as engines, axles, and suspensions to ensure the safety and stability of the vehicle. 3. Construction field: Hexagonal locking thin nuts are widely used in the assembly of steel structures, such as bridges, factories, etc. They are lightweight and have good anti loosening properties, which can ensure the stability and safety of steel structures during use. 4. Electronic devices: In the field of electronic product manufacturing, such as mobile phones, computers, etc., hexagonal locking thin nuts are used to fix and connect various components, such as batteries, motherboards, displays, etc., to save space and reduce weight. 5. Home decoration: In the field of home decoration, hexagonal locking thin nuts are commonly used in the assembly of furniture, toys and other products, which can not only play a fixing role but also maintain a clean appearance. 6. General field: Hexagonal locking thin nuts are also widely used in the production and manufacturing processes of various mechanical equipment, instruments, household appliances, etc.
1. Core type expansion bolt is a common connector, widely used in construction, bridge, mechanical equipment and other fields. It has the advantages of simple installation, high bearing capacity, good seismic performance and so on 2 Core expansion is mainly used in buildings to install suspended ceilings, walls, steel structures, wire trough pipe supports, air pipes, door and window frames and other places that need to be fixed. The expansion anchor has the characteristics of simple installation, reliable, strong bearing capacity and wide application range. At the same time, it can also adjust the distance between the fixed object and the substrate by tightening the screws.
Hexagonal embedded locking nut is a type of fastener that can lock threads. It is widely used in fields such as mechanical manufacturing, automotive manufacturing, and electronic equipment. In high-speed mechanical equipment, locking nuts can effectively prevent thread loosening and ensure the safe and stable operation of the equipment.
Surface treatment: In order to improve the corrosion resistance, the joint bolts can adopt a variety of surface treatment methods, such as hot-dip galvanizing, infiltration plating, white plating, color plating, etc. In addition, high-strength bolts are usually treated with boiled black blue to enhance their appearance and corrosion resistance.
DIN928 welded square nuts are widely used in multiple fields, including mechanical manufacturing, automotive industry, aerospace, photovoltaics, transportation, construction, and more. The characteristics of these application areas require high-strength and reliable fasteners, and DIN928 welded square nuts precisely meet these requirements. It can withstand high-strength tensile and shear forces, suitable for situations that require strong forces and vibrations. The design of the four corners provides better welding performance, making the connection more secure and reliable. It can be installed through welding or threaded connection, making installation simple and convenient. Suitable for various industrial fields, ensuring stability and reliability of connections.
1.DIN7504K refers to a self-drilling screw with a hexagonal head, a flanged head, and a pointed end.The tail of a self-drilling screw is different from that of an ordinary screw. It is not a pointed tail, but is like a drill bit. This tail allows the screw to drill holes by itself without the need for pre-made holes when screwing into steel plates, wood, etc. 2. Advantages: The biggest advantage is that it does not require auxiliary processing, and can be directly drilled and tapped on the material, which greatly saves construction time. In addition, DIN7504K has higher toughness and maintenance, and will not easily loosen after long-term use, thereby enhancing the stability of the structure. 3. Wide application: Hex self-drilling screws are widely used in the construction industry, especially in the fixing of color steel tiles on steel structures. Because of their easy and firm installation, they can effectively improve construction efficiency and quality. In addition, hexa self-drilling screws are also commonly used to fix thin plates in simple buildings, showing their practicality in a variety of construction environments.
Product Name DIN6923 Hex Flange Nut Material Carbon steel Surface Finish Yellow zinc Colour...
1. Flange screw is a kind of fastener composed of two parts: hexagonal head and flange (the gasket under the hexagonal is fixed together with the hexagonal) and screw (cylinder with external thread), which needs to be matched with the nut for fastening and connecting two parts with through holes. 2. Hexagonal flange bolt is a particularly common industrial equipment used in industry, because it has the characteristics of accurate decoration and strong endurance, it has been widely used, it is widely used in road and railway Bridges, including industrial and civil construction, cranes, excavators and other heavy machinery
1. Adjust the tension of the steel wire rope: By using a lead screw for expansion and contraction, the tension of the steel wire rope can be adjusted, which is suitable for situations that require frequent adjustment 2. Fixation and binding: It can be used to bind and fasten steel wire ropes, especially suitable for power lines, especially as a positioning device for high-voltage tower tie rods 3. Provide support: It can be used to fix the bottom of the flower basket as a support point to ensure its stability 4. Multiple application scenarios: The application areas cover multiple industries such as electricity, logistics, and agriculture, such as cargo bundling, sling connections, and steel structure cable rod connectors in logistics
1. The characteristics of the Cup Head Square Neck Bolts are that the head is made into a semi-round ball, a square neck is made under the head, and a square hole is also made correspondingly on the connected parts connected with such bolts. When the bolt is inserted into the connecting piece and then screwed on the nut, the bolt will not rotate due to the square neck. Its head is relatively smooth, and it is not easy to hook other objects. 2. Cup Head Square Neck Bolts is mainly used for connecting parts due to structural limitations are not suitable for hex bolts or bolts are required to have a smooth exposed part of the occasion. Such as the feet of agricultural machinery, wall panels and other places. The bolt is divided into two kinds according to the head size: ordinary and large half round head. The head of the large Cup Head Square Neck Bolts is straight and the diameter is large, but its thickness is slightly thin. This kind of bolt is mostly used in trucks, barges, iron and wood looms, and other wooden structural parts, because the head support surface is large, it is not easy to fall into the wooden connector.
DIN557 single chamfered square nuts are mainly used in applications that require high-strength connections and corrosion resistance, such as power engineering, road transportation, home building materials, and other industries. The design features of this nut include a single-sided chamfer, which is easy to install and can improve the stability and reliability of the connection.
1. Achieving fast connection: Photovoltaic connectors are mainly used to achieve fast connection between junction boxes, combiner boxes, components, and inverters. They make the installation and maintenance process more convenient, reducing labor costs and time 2. Ensure the stability of electrical connections: Photovoltaic connectors ensure stable and reliable electrical connections between photovoltaic modules, which is crucial for the efficient operation of the entire photovoltaic system. The design of connectors needs to consider the requirements of current and voltage to ensure low loss and efficient power transmission 3. Provide waterproof and dustproof protection: Photovoltaic connectors need to have waterproof and dustproof performance to ensure stable operation of the circuit and avoid short circuits or damage caused by moisture or dust. This characteristic is particularly important for outdoor photovoltaic systems
1It is mainly used to fix pipes such as water pipes or sheet springs such as automobiles, and its material characteristics, density, bending strength, impact toughness, compression strength, elastic modulus, tensile strength, temperature resistance and color are determined according to the use environment 2. U-type is generally used in trucks, it is used to stabilize the chassis and frame of the car. For example, leaf springs are connected with U-bolts. U-bolt is widely used, the main uses: construction installation, mechanical parts connection, vehicles, ships, Bridges, tunnels and railways.
Hexagonal locking thin nuts are also widely used in the production and manufacturing processes of various mechanical equipment, instruments, household appliances, etc.
1.the small yellow croaker expansion screw is relatively strong, the small yellow croaker expansion screw tension is strong, can better play a fixed and stable role. When installing, be sure to tighten, screw in place, and then beat with a hammer, not only beautiful knot reliable with firm and stable fixed stable effect is particularly good. 2. especially suitable for hanging, arch structure, outdoor walls, stairs, radiators and other different occasions of columns, Angle steel, beams and other parts fixed and supported. The crosshead expansion screw is a kind of expansion screw, which is characterized by a variety of dimensions, convenient installation and firm fixing. Small yellow croaker expansion screw, the appearance is like a small fish, its main feature is shaped like a “hollow bolt” and has good expansion.
