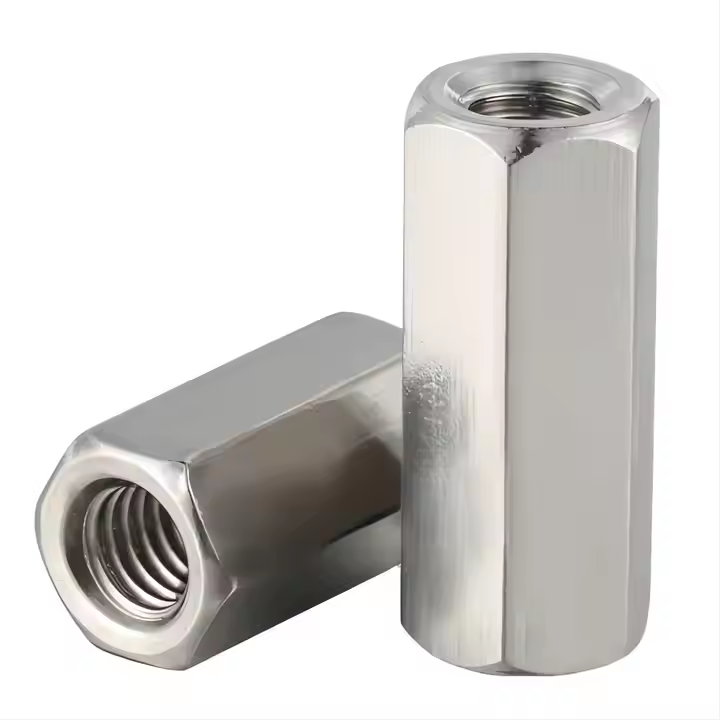

| Product Name | DIN6334 Hexagon Coupling Nuts |
| Material | Carbon steel, Stainless steel |
| Surface Finish | Yellow zinc, Blackened, Blue and white zinc, Bleached |
| Colour | Yellow, Black, Blue White, White |
| Standard Number | DIN6334 |
| Grade | 4.8/5.8/6.8/8.8/10.9/12.9/A2-70 |
| Diameter | M6 M8 M10 M12 M14 M16 M18 M20 M22 M24 M27 M30 M33 M36 |
| Thread form | Coarse thread, Medium thread, Fine thread |
| Place of origin | Hebei, China |
| Brand | Muyi |
| Pack | Box+cardboard carton+pallet |
| The product can be customized | |
| 1. Hex coupling nut is a slender hexagonal nut used to connect two threaded rods or bolts. It does not require tapping the internal thread, does not require welding the nut, has a strong riveting efficiency and is easy to use. 2.Wide application: Hex coupling nuts are suitable for fastening various metal plates, pipes and other manufacturing industries. They are widely used in the assembly of electromechanical and light industrial products such as automobiles, aviation, railways, refrigeration, elevators, switches, instruments, furniture, decoration, etc. |
|

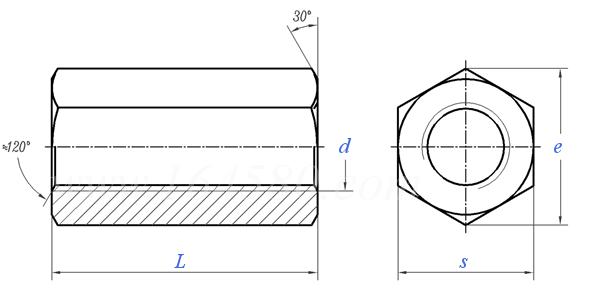

| Thread Spec d |
M6 | M8 | M10 | M12 | M14 | M16 | M18 | M20 | M22 | M24 | M27 | M30 | M33 | M36 | ||
| P | Pitch | 1 | 1.25 | 1.5 | 1.75 | 2 | 2 | 2.5 | 2.5 | 2.5 | 3 | 3 | 3.5 | 3.5 | 4 | |
| s | 10 | 13 | 17 | 19 | 22 | 24 | 27 | 30 | 32 | 36 | 41 | 46 | 50 | 55 | ||
| L | 18 | 24 | 30 | 36 | 42 | 48 | 54 | 60 | 66 | 72 | 81 | 90 | 99 | 108 | ||
| e | 11.05 | 14.38 | 18.9 | 21.1 | 24.49 | 26.75 | 29.56 | 33.53 | 35.03 | 39.98 | 45.2 | 50.85 | 55.37 | 60.79 | ||
1. Electronics industry: In the electronics industry, spring hooks are widely used, especially playing an important role in small electronic devices. For example, in devices such as mobile phones and computers, spring hooks are used to secure circuit boards and connect cables, ensuring the stability of the internal structure of the device and the reliability of the connection. In addition, spring hooks are also used for component positioning and fixation in precision instruments and household appliances, ensuring the stability and safety of the equipment during operation 2. Automobile manufacturing: In the field of automobile manufacturing, spring hooks also play an important role. Various components in a car, such as the engine, gearbox, suspension system, etc., cannot be separated from the fixation of spring hooks. For example, components such as exhaust manifolds and fuel pipes on engines are usually connected and fixed using spring hooks to ensure efficient engine operation
DIN937 hexagonal slotted thin nuts are mainly used for machines and equipment that require frequent disassembly, especially in situations where space is limited. This type of nut has six parallel short grooves at its bottom, which can be rotated using a wrench or pliers, making it easy to disassemble and install
1.High-quality material selection, genuine 304 stainless steel, resistant to high and low temperatures, no rust 2.Deep thread, deep thread pitch, uniform force, stable tightening force 3.Exquisite workmanship, smooth surface, no burrs, standard size, small error
DIN557 single chamfered square nuts are mainly used in applications that require high-strength connections and corrosion resistance, such as power engineering, road transportation, home building materials, and other industries. The design features of this nut include a single-sided chamfer, which is easy to install and can improve the stability and reliability of the connection.
The T-bolt can be directly placed into the aluminum profile groove, and it can automatically position and lock during installation. It is often used in conjunction with flange nuts and is a standard matching connector for installing corner pieces. It can be selected and used according to the width of the profile groove and different series of profiles.
1. TAM Anchor is a special threaded connector, mainly used to fasten parts that need to withstand large tensile forces, such as bridges, buildings, etc. 2. Application:Tam anchors are widely used in many industries. In the auto maintenance industry, they are often used to fix and install lifts. In the construction industry, tam anchors can be used to fix various building accessories. In the hardware manufacturing industry, it can be used with other types of expansion bolts to fix various building components. Tam anchors can also be used in other occasions where pipes or equipment need to be fixed.
As a common fastener, square head bolt is a special type of bolt with a square head and unique shape and characteristics. It is widely used in mechanical manufacturing, construction industry, automobile manufacturing and other fields. 1. Mechanical manufacturing: Square head bolts are widely used in the field of mechanical manufacturing, such as mechanical equipment, machine tools, transmission devices, etc. 2. Construction industry: In the construction field, square head bolts are commonly used to fix various components such as beams, slabs, columns, etc. 3. Automotive manufacturing: In the process of automotive manufacturing, square head bolts are used to secure automotive components such as engines, transmissions, etc.
1.The head of the bolt is spherical with holes, the spherical surface is smooth, the installation of the Eye Bolts is relatively simple, and it is often used for the occasion of opening and disassembling or the tooling assembly.The thread precision of the Eye Bolts is high, which can improve the quality of the whole workpiece as an accessory. 2.Eye Bolts are widely used in: low temperature and high pressure valves, pressure pipelines, fluid engineering, oil drilling and production equipment, oilfield equipment and other fields, often in the disconnecting occasions or tools such as the valve industry, folding bicycles, strollers are used, because the use of Eye Bolts is convenient and fast, and the use of matching nuts plays the role of connection fastening, a wide range of applications.
1. How to use: ① Drill a hole equal to the diameter of the anchor to the smallest size. ② Clear the hole and insert the anchor into the hole with a hammer ③ Tighten the nut to expand the anchor to fix the object 2. Application: ① Can be used for concrete, blocks, bricks, stones, steel structures, machines, doors, stairs, floors ② Can be used to repair the load of exterior walls or windows
Product Name DIN6923 Equipped with anti slip teeth Hex Flange Nut Material Carbon steel, S...
DIN935-1 hexagonal slotted nuts are mainly used to fix the front and rear axles of vehicles. By tightening the screws that pass through the front and rear axles, the frame and tires are fixed together. In order to prevent the nut from loosening, it is usually fixed by using an open-ended pin that passes through the groove of the slotted nut. The open-ended pin needs to pass through the middle of the wheel axle screw, and usually both ends of the wheel axle screw need to be drilled. The diameter of the hole and the width and depth of the slotted nut groove determine what specification of open-ended pin is selected.
The significant feature of the flange bolt with anti slip teeth is that its bottom is designed with serrated protrusions, which greatly enhances the fit between the bolt and nut, effectively avoiding loosening problems caused by vibration or prolonged operation. This feature makes toothed flange bolts an ideal choice for high load and high vibration situations, such as heavy machinery equipment, automotive power systems, and fine electronic equipment. In these applications, the stability and reliability of the connecting components are key factors in ensuring the quiet operation of the equipment, and the excellent anti loosening performance of the flange bolts with anti slip teeth has won widespread recognition and application.
1. Drop in Anchor is a kind of expansion bolt, Drop in Anchor thread is long and easy to install, usually used for heavy load facilities, so it is widely used, many industries can basically be used, generally play a fixed role, suitable for concrete and dense natural stone, metal structure, metal sheet, floor, support plate, bracket, railing and so on. 2. Widely used : the end of the pipe stretched into the hole of the tube plate by theDrop in Anchor rolls, resulting in continuous expansion of the inner wall of the tube, resulting in plastic deformation, the diameter of the tube increases, the tube head is completely fitted to the hole wall of the tube plate, and the tube plate is forced to produce elastic deformation. When the tube expander is removed, the elastic deformation of the tube plate wants to return to its original state, and the plastic deformation of the tube end can not be recovered, and the result is that the tube plate holds the tube end tightly, so as to achieve the purpose of sealing and firmly connecting the two.
1.DIN7504K refers to a self-drilling screw with a hexagonal head, a flanged head, and a pointed end.The tail of a self-drilling screw is different from that of an ordinary screw. It is not a pointed tail, but is like a drill bit. This tail allows the screw to drill holes by itself without the need for pre-made holes when screwing into steel plates, wood, etc. 2. Advantages: The biggest advantage is that it does not require auxiliary processing, and can be directly drilled and tapped on the material, which greatly saves construction time. In addition, DIN7504K has higher toughness and maintenance, and will not easily loosen after long-term use, thereby enhancing the stability of the structure. 3. Wide application: Hex self-drilling screws are widely used in the construction industry, especially in the fixing of color steel tiles on steel structures. Because of their easy and firm installation, they can effectively improve construction efficiency and quality. In addition, hexa self-drilling screws are also commonly used to fix thin plates in simple buildings, showing their practicality in a variety of construction environments.
1. Hex nuts are mainly used in conjunction with bolts or screws to achieve the connection and fastening of two or more parts. The design of hex nuts enables them to have good torque transmission capabilities and can withstand large axial and radial loads. 2. Characteristic: There must be enough operating space during installation. You can use an adjustable wrench, open-end wrench or glasses wrench during installation. All of the above wrenches require a large operating space. 3. Wide application: It is widely used and is characterized by its strong tightening force. Hex nuts cover almost all areas where fasteners are needed. For example: construction engineering, machinery manufacturing, electronic products and home repair, etc.
Hexagonal embedded locking nut is a type of fastener that can lock threads. It is widely used in fields such as mechanical manufacturing, automotive manufacturing, and electronic equipment. In high-speed mechanical equipment, locking nuts can effectively prevent thread loosening and ensure the safe and stable operation of the equipment.
