1. The automobile industry
Because of their applicability in metal applications, hexagonal head screws are often used in the automotive machinery industry for fixing and connecting components. Hexagon head screws add a strong and reliable connection to a variety of automotive and mechanical parts, and their installation process is relatively simple, providing convenience for many workers.
2. Furniture and cabinets
Furniture production is a key area that pays attention to the capability and durability of hexagonal head screws. Hexagonal head screws ensure the robustness of the connection and the desired effect in the long term. Standard hexagonal head parts are the perfect choice for furniture and cabinets, ensuring a rugged, high-quality connection.”

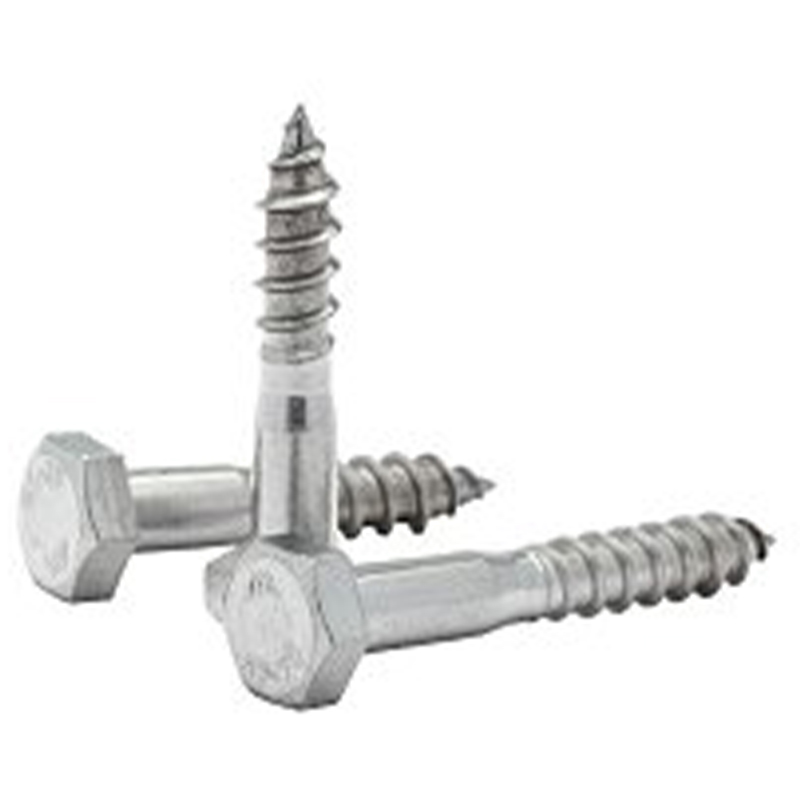

| Product Name | Hexagon Head Wood Screws |
| Material | Carbon steel, Stainless steel |
| Surface Finish | Yellow zinc, Blackened, Blue and white zinc, Bleached |
| Colour | Yellow, Black, Blue White, White |
| Standard Number | DIN571 |
| Grade | 4.8 6.8 8.8 10.9 A2-70 |
| Diameter | M4 M5 M6 M 7M8 M10 M12 M16 M20 |
| Thread form | Coarse thread, Fine thread |
| Place of origin | Hebei, China |
| Brand | Muyi |
| Pack | Box+cardboard carton+pallet |
| The product can be customized | |
| 1. The automobile industry Because of their applicability in metal applications, hexagonal head screws are often used in the automotive machinery industry for fixing and connecting components. Hexagon head screws add a strong and reliable connection to a variety of automotive and mechanical parts, and their installation process is relatively simple, providing convenience for many workers. 2. Furniture and cabinets |
|

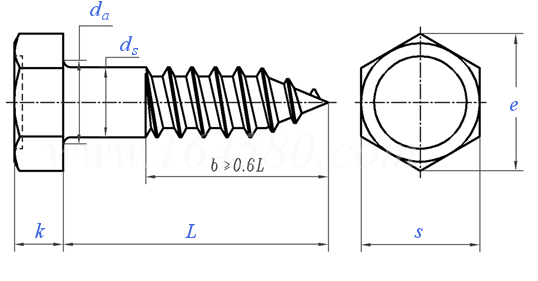

| Thread Spec D |
M4 | M5 | M6 | M7 | M8 | M10 | M12 | M16 | M20 | |
| ds | max | 4 | 5 | 6 | 7 | 8 | 10 | 12 | 16 | 20 |
| min | 3.52 | 4.52 | 5.52 | 6.42 | 7.42 | 9.42 | 11.3 | 15.3 | 19.3 | |
| da | max | 5 | 6 | 7.2 | 8.2 | 10.2 | 12.2 | 15.2 | 19.2 | 24.4 |
| k | nominal | 2.8 | 3.5 | 4 | 5 | 5.5 | 7 | 8 | 10 | 13 |
| max | 3.1 | 3.88 | 4.38 | 5.38 | 5.88 | 7.45 | 8.45 | 10.45 | 13.9 | |
| min | 2.5 | 3.13 | 3.63 | 4.63 | 5.13 | 6.55 | 7.55 | 9.55 | 12.1 | |
| s | max=nominal | 7 | 8 | 10 | 12 | 13 | 17 | 19 | 24 | 30 |
| min | 6.64 | 7.64 | 9.64 | 11.57 | 12.57 | 16.57 | 18.48 | 23.16 | 29.16 | |
| e | min | 7.5 | 8.63 | 10.89 | 13.07 | 14.2 | 18.72 | 20.88 | 26.17 | 32.95 |
Through its specially designed shape, DIN981 round nuts can provide high locking force, ensuring a tight connection between components. This type of nut comes in multiple specifications, suitable for different bolt diameters and connection requirements. Made of galvanized or stainless steel materials, it has good corrosion resistance and is suitable for various environments. Tightening and loosening can be achieved through simple rotation movements, making the operation simple.
Hexagonal embedded locking nut is a type of fastener that can lock threads. It is widely used in fields such as mechanical manufacturing, automotive manufacturing, and electronic equipment. In high-speed mechanical equipment, locking nuts can effectively prevent thread loosening and ensure the safe and stable operation of the equipment.
1. Mechanical manufacturing: Hexagonal locking thin nuts are mainly used to connect and fix various mechanical components, such as screws, flanges, bearings, and camshafts, to ensure the normal operation of machines. 2. Automotive manufacturing: In the automotive manufacturing process, hexagonal locking thin nuts are used to connect and secure various automotive components such as engines, axles, and suspensions to ensure the safety and stability of the vehicle. 3. Construction field: Hexagonal locking thin nuts are widely used in the assembly of steel structures, such as bridges, factories, etc. They are lightweight and have good anti loosening properties, which can ensure the stability and safety of steel structures during use. 4. Electronic devices: In the field of electronic product manufacturing, such as mobile phones, computers, etc., hexagonal locking thin nuts are used to fix and connect various components, such as batteries, motherboards, displays, etc., to save space and reduce weight. 5. Home decoration: In the field of home decoration, hexagonal locking thin nuts are commonly used in the assembly of furniture, toys and other products, which can not only play a fixing role but also maintain a clean appearance. 6. General field: Hexagonal locking thin nuts are also widely used in the production and manufacturing processes of various mechanical equipment, instruments, household appliances, etc.
1. Achieving fast connection: Photovoltaic connectors are mainly used to achieve fast connection between junction boxes, combiner boxes, components, and inverters. They make the installation and maintenance process more convenient, reducing labor costs and time 2. Ensure the stability of electrical connections: Photovoltaic connectors ensure stable and reliable electrical connections between photovoltaic modules, which is crucial for the efficient operation of the entire photovoltaic system. The design of connectors needs to consider the requirements of current and voltage to ensure low loss and efficient power transmission 3. Provide waterproof and dustproof protection: Photovoltaic connectors need to have waterproof and dustproof performance to ensure stable operation of the circuit and avoid short circuits or damage caused by moisture or dust. This characteristic is particularly important for outdoor photovoltaic systems
DIN557 single chamfered square nuts are mainly used in applications that require high-strength connections and corrosion resistance, such as power engineering, road transportation, home building materials, and other industries. The design features of this nut include a single-sided chamfer, which is easy to install and can improve the stability and reliability of the connection.
In construction engineering, the expansion screw of hexagonal flange sleeve significantly improves installation efficiency and simplifies the installation process. Its design is exquisite, easy to operate, and greatly saves construction time and cost.
1.Eye wood screws, also known as sheep eye, sheep eye ring, sheep eye nail, sheep eye bolt, etc., have flat head, pointed head, open head and closed head. The welding methods of eye wood screws are spot welding and full welding. 2. Wide application: Eye wood screws are widely used as accessories for hanging accessories and are also one of the commonly used hardware accessories for architectural decoration.They are used to fix and connect various decorative materials.Eye wood screws are also widely used in ports, electric power, steel, shipbuilding, petrochemicals, mining, railways, construction, metallurgy and chemical industry, automobile manufacturing, plastic machinery, industrial control, highways, large-scale transportation, pipeline auxiliary installation, slope tunnels, shaft management and protection, maritime rescue, marine engineering, airport construction, bridges, aviation, aerospace, venues and other important industries as well as mechanical equipment of infrastructure projects.
1.Sleeve Anchor with Hook is a special threaded connecting piece used to fix pipe support, lift, bracket or equipment on the wall, floor and column. 2. Stainless steel expansion hook is widely used, mainly used in the integrated installation of multimedia classrooms, installation of manhole protective mesh, installation of power Wells, water Wells and other manhole cover protective mesh, curtain hanging and other fields. Lanterns can also be hung on the top, bird cages can also be used horizontally, and more manhole protection nets can be installed.
Hexagonal locking thin nuts are also widely used in the production and manufacturing processes of various mechanical equipment, instruments, household appliances, etc.
In the construction industry, square head bolts are used to fix steel mesh to ensure the stability of building structures. In mechanical manufacturing, square head bolts are used to connect various components of mechanical equipment, such as bearing covers, gearboxes, etc. In the automotive industry, square head bolts are used to secure components such as the vehicle body and engine, ensuring the safety performance of the vehicle. In furniture production, square head bolts are used to connect various parts of wooden furniture, improving the stability of the furniture. In electrical engineering, square head bolts are used to secure cable supports, switchgear, and other equipment to ensure the safe operation of circuits.
DIN928 welded square nuts are widely used in multiple fields, including mechanical manufacturing, automotive industry, aerospace, photovoltaics, transportation, construction, and more. The characteristics of these application areas require high-strength and reliable fasteners, and DIN928 welded square nuts precisely meet these requirements. It can withstand high-strength tensile and shear forces, suitable for situations that require strong forces and vibrations. The design of the four corners provides better welding performance, making the connection more secure and reliable. It can be installed through welding or threaded connection, making installation simple and convenient. Suitable for various industrial fields, ensuring stability and reliability of connections.
1.The serrated lock washer is a single ring washer, open type dislocation, when the wrench tighten the nut, the wrong opening of the tooth above the serration will be inlaid to the surface of the member, to prevent the nut from loosening. 2. The lock washer is mainly used with the nut and installed on the bolt, which is a bit like the role of the spring washer. The Serrated Lock Washers is generally used under the bolt head and nut.
Cage nut, also known as square hole card nut or floating nut, consists of an elastic material shell and a square nut. The groove structure of its shell positions the nut in the pre drilled square hole, and due to the gap between the combination of the shell and the square nut, it can compensate for the positional deviation of the installation hole. Cage nuts have high-strength threaded fastening function, quick and convenient installation, can be disassembled and repositioned, and can also be tilted and fixed.
As a common fastener, square head bolt is a special type of bolt with a square head and unique shape and characteristics. It is widely used in mechanical manufacturing, construction industry, automobile manufacturing and other fields. 1. Mechanical manufacturing: Square head bolts are widely used in the field of mechanical manufacturing, such as mechanical equipment, machine tools, transmission devices, etc. 2. Construction industry: In the construction field, square head bolts are commonly used to fix various components such as beams, slabs, columns, etc. 3. Automotive manufacturing: In the process of automotive manufacturing, square head bolts are used to secure automotive components such as engines, transmissions, etc.
1. The products are generally carbon steel or stainless steel, and the surface of carbon steel is cold and hot galvanized and dacromet surface treatment. It is suitable for light steel keel ceiling, ventilation pipe, cable bridge, tunnel and other anchoring parts that need to be suspended. Anchors are divided into medium and light duty series and can also be specially designed and processed according to customer requirements. 2. Widely used : mainly used in heavy anchoring occasions, such as mechanical equipment anchor, elevator support anchor, curtain wall ceiling and other heavy anchoring occasions. Customers can choose bolts with various head functions according to actual needs, such as outer hexagon bolts, C-hook bolts, O-shaped eye bolts, etc
DIN127 spring washers are mainly used in bolt connections, especially in bolt connections with a strength grade of 5.8 or below. Its main purpose is to prevent bolt loosening by increasing the axial rebound force to compensate for the loss of preload force caused by compression, thereby preventing the loosening of threaded connections.
