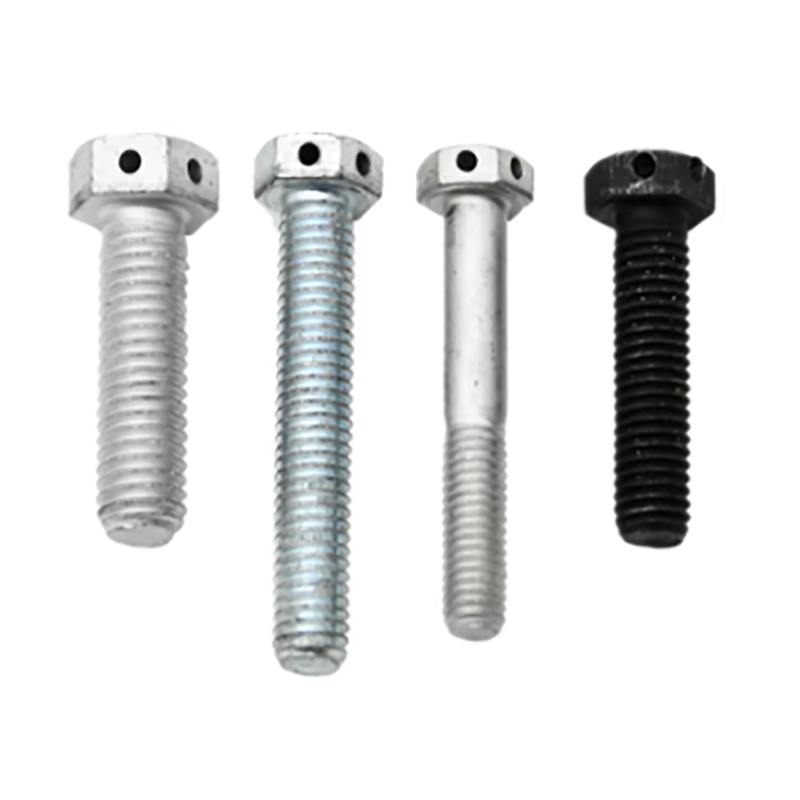

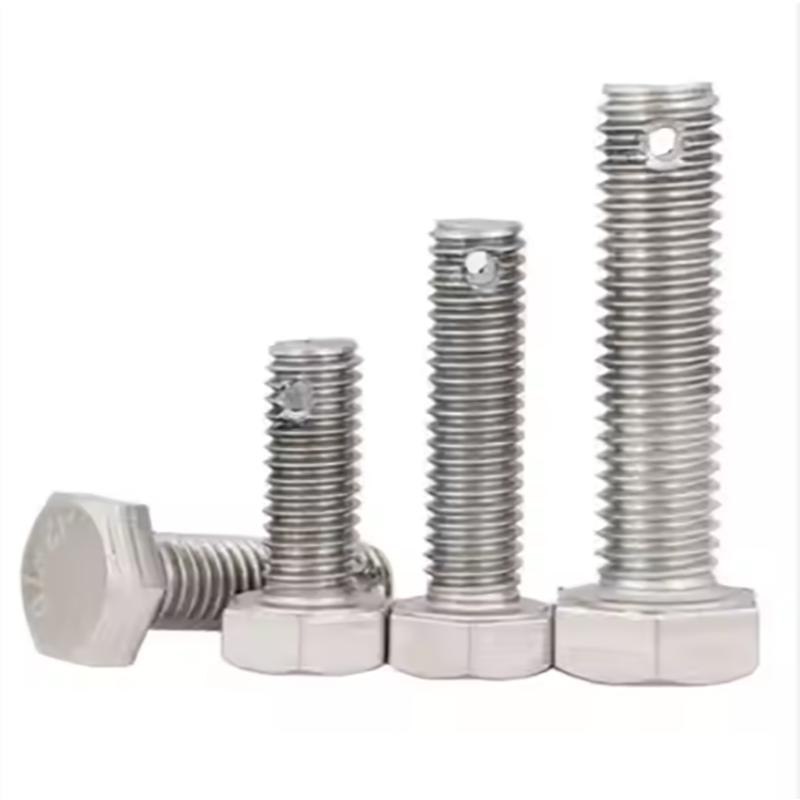

Product description: Hexagonal tail punch bolts are also called opening holes and safety hole screws. Common standards include GB/T31.1. They are mainly used to prevent the workpiece from loosening after the equipment is fastened and connected. They are mainly used to prevent the bolts from vibrating and loosening during use, so they are also called safety hole screws.
| Product Name | Hexagon head screw with hole |
| Material | Carton steel,Stainless steel |
| Surface Finish | Yellow zinc, Blackened, Blue and white zinc, Dacromet，HDG |
| Colour | Yellow, Black, Blue White, White |
| Standard Number | DIN,ASME,ASNI,ISO,GB |
| Grade | 4.8 5.8 8.8 10.9 A2-70 |
| Diameter | M6 M8 M10 M12 M14 M16 M18 M20 M22 M24 M27 M30 M36 M42 M48 |
| Thread form | Coarse thread, Fine thread |
| Place of origin | Hebei, China |
| Brand | Muyi |
| Pack | Box+cardboard carton+pallet |
| The product can be customized | |
| 1.Product description: Hexagonal tail punch bolts are also called opening holes and safety hole screws. Common standards include GB/T31.1. They are mainly used to prevent the workpiece from loosening after the equipment is fastened and connected. They are mainly used to prevent the bolts from vibrating and loosening during use, so they are also called safety hole screws. | |

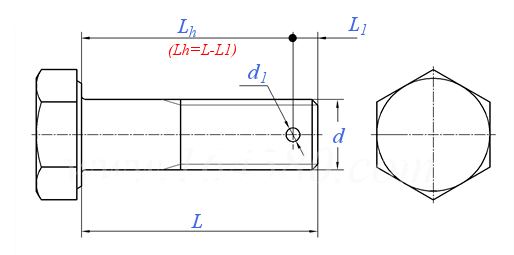

| Thread Spec d |
M6 | M8 | M10 | M12 | (M14) | M16 | (M18) | M20 | (M22) | M24 | (M27) | M30 | M36 | M42 | M48 | |
| P | Pitch | 1 | 1.25 | 1.5 | 1.75 | 2 | 2 | 2.5 | 2.5 | 2.5 | 3 | 3 | 3.5 | 4 | 4.5 | 5 |
| d1 | Max | 1.85 | 2.25 | 2.75 | 3.5 | 3.5 | 4.3 | 4.3 | 4.3 | 5.3 | 5.3 | 5.3 | 6.66 | 6.66 | 8.36 | 8.36 |
| Min | 1.6 | 2 | 2.5 | 3.2 | 3.2 | 4 | 4 | 4 | 5 | 5 | 5 | 6.3 | 6.3 | 8 | 8 | |
| L1 | Nominal | 3.3 | 4 | 5 | 6 | 6.5 | 7 | 8 | ③ | 9 | 10 | 10 | 12 | 13 | 15 | 16 |
