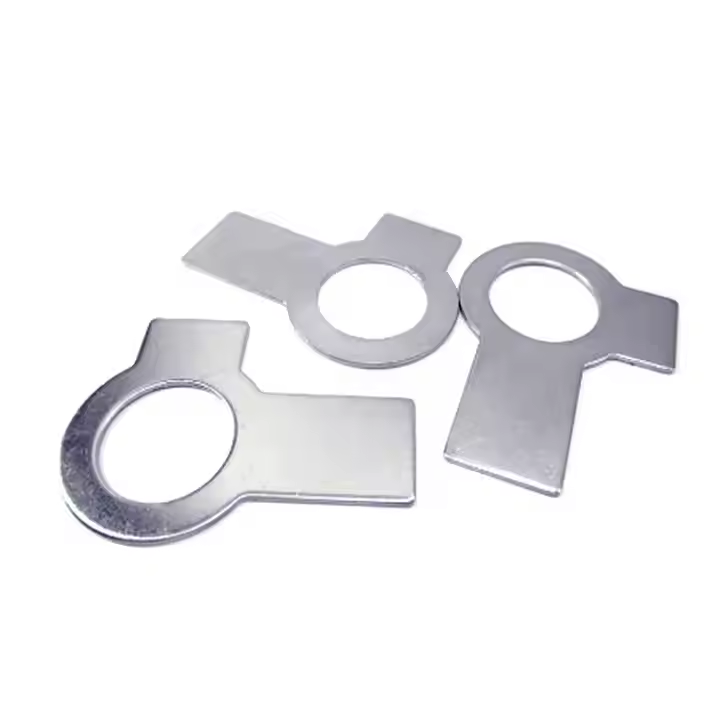

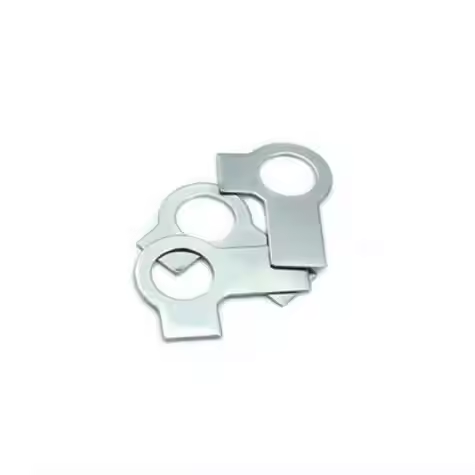

GB855 Tab Washers With Long Tab And Wing are mainly used to prevent bolts or nuts from loosening, and are commonly used in mechanical connections that require high reliability and stability. Its structural feature is that one ear is folded towards the bolt head, and the other ear is folded towards the connecting piece (with a small hole on the connecting piece), achieving the anti loosening function of the bolt through this design.
| Product Name | GB855 Tab Washers With Long Tab And Wing |
| Material | Stainless steel |
| Surface Finish | Decolourize |
| Colour | White |
| Standard Number | GB855 |
| Grade | 200HV |
| Diameter | 4 5 6 8 10 12 14 16 18 20 22 24 27 30 33 36 39 42 48 |
| Place of origin | Hebei, China |
| Brand | Muyi |
| Pack | Box+cardboard carton+pallet |
| The product can be customized | |
| GB855 Tab Washers With Long Tab And Wing are mainly used to prevent bolts or nuts from loosening, and are commonly used in mechanical connections that require high reliability and stability. Its structural feature is that one ear is folded towards the bolt head, and the other ear is folded towards the connecting piece (with a small hole on the connecting piece), achieving the anti loosening function of the bolt through this design. | |

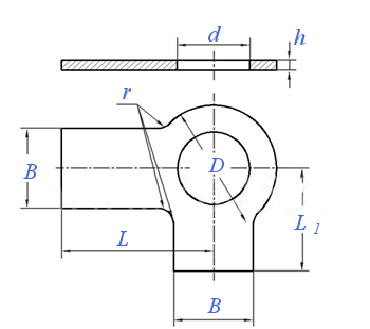

| Size | M4 | M5 | M6 | M8 | M10 | M12 | (M14) | M16 | (M18) | M20 | (M22) | M24 | (M27) | M30 | M36 | M42 | M48 | |
| d | max | 4.5 | 5.6 | 6.76 | 8.76 | 10.93 | 13.43 | 15.43 | 17.43 | 19.52 | 21.52 | 23.52 | 25.52 | 28.52 | 31.62 | 37.62 | 43.62 | 50.62 |
| min | 4.2 | 5.3 | 6.4 | 8.4 | 10.5 | 13 | 15 | 17 | 19 | 21 | 23 | 25 | 28 | 31 | 37 | 43 | 50 | |
| D | max | 8 | 9 | 11 | 14 | 17 | 22 | 22 | 27 | 32 | 32 | 36 | 36 | 41 | 46 | 55 | 65 | 75 |
| min | 7.64 | 8.64 | 10.57 | 13.57 | 16.57 | 21.48 | 21.48 | 26.48 | 31.38 | 31.38 | 35.38 | 35.38 | 40.38 | 45.38 | 54.26 | 64.26 | 74.26 | |
| L | nominal | 14 | 16 | 18 | 20 | 22 | 28 | 28 | 32 | 36 | 36 | 42 | 42 | 48 | 52 | 62 | 70 | 80 |
| min | 13.65 | 15.65 | 17.65 | 19.58 | 21.58 | 27.58 | 27.58 | 31.5 | 35.5 | 35.5 | 41.5 | 41.5 | 47.5 | 51.4 | 61.4 | 69.4 | 79.4 | |
| max | 14.35 | 16.35 | 18.35 | 20.42 | 22.42 | 28.42 | 28.42 | 32.5 | 36.5 | 36.5 | 42.5 | 42.5 | 48.5 | 52.6 | 62.6 | 70.6 | 80.6 | |
| L1 | nominal | 7 | 8 | 9 | 11 | 13 | 16 | 16 | 20 | 22 | 22 | 25 | 25 | 30 | 32 | 38 | 44 | 50 |
| min | 6.71 | 7.71 | 8.71 | 10.65 | 12.65 | 15.65 | 15.65 | 19.58 | 21.58 | 21.58 | 24.58 | 24.58 | 29.58 | 31.5 | 37.5 | 43.5 | 49.5 | |
| max | 7.29 | 8.29 | 9.29 | 11.35 | 13.35 | 16.35 | 16.35 | 20.42 | 22.42 | 22.42 | 25.42 | 25.42 | 30.42 | 32.5 | 38.5 | 44.5 | 50.5 | |
| B | 5 | 6 | 7 | 8 | 10 | 12 | 12 | 15 | 18 | 18 | 20 | 20 | 24 | 26 | 30 | 35 | 40 | |
| h | 0.4 | 0.5 | 0.5 | 0.5 | 0.5 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | |
| r | 1 | 1 | 1 | 2 | 2 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 4 | 4 | |
| 1000 pcs/weight kg |
0.3 | 0.48 | 0.64 | 0.81 | 1.11 | 3.78 | 3.43 | 5.32 | 5.27 | 6.78 | 9.01 | 10.43 | 17.54 | 20.95 | 29.39 | 39.81 | 51.84 | |
