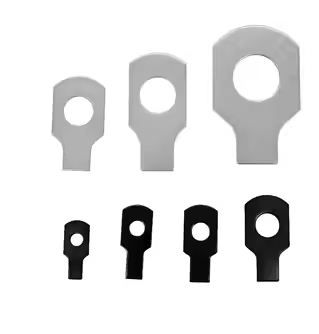

| Product Name | GB854 Tab Washers With Long Tab |
| Material | Carbon steel, Stainless steel |
| Surface Finish | Blackened,Decolourize |
| Colour | Black, White |
| Standard Number | GB854 |
| Grade | 100HV 200HV |
| Diameter | 4 5 6 8 10 12 14 16 18 20 22 24 27 30 33 36 39 42 48 |
| Place of origin | Hebei, China |
| Brand | Muyi |
| Pack | Box+cardboard carton+pallet |
| The product can be customized | |
| GB854 Tab Washers With Long Tab is mainly used to prevent bolts or nuts from loosening in vibration environments, ensuring the stability of the connection. | |

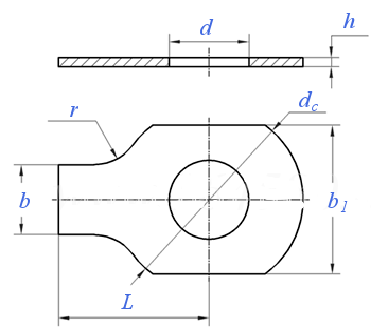

| Size | M4 | M5 | M6 | M8 | M10 | M12 | (M14) | M16 | (M18) | M20 | (M22) | M24 | (M27) | M30 | M36 | M42 | M48 | |
| d | max | 4.5 | 5.6 | 6.76 | 8.76 | 10.93 | 13.43 | 15.43 | 17.43 | 19.52 | 21.52 | 23.52 | 25.52 | 28.52 | 31.62 | 37.62 | 43.62 | 50.62 |
| min | 4.2 | 5.3 | 6.4 | 8.4 | 10.5 | 13 | 15 | 17 | 19 | 21 | 23 | 25 | 28 | 31 | 37 | 43 | 50 | |
| dc | max | 14 | 17 | 19 | 22 | 26 | 32 | 32 | 40 | 45 | 45 | 50 | 50 | 58 | 63 | 75 | 88 | 100 |
| min | 13.57 | 16.57 | 18.48 | 21.48 | 25.48 | 31.38 | 31.38 | 39.38 | 44.38 | 44.38 | 49.38 | 49.38 | 57.26 | 62.26 | 74.26 | 87.13 | 99.13 | |
| L | nominal | 14 | 16 | 18 | 20 | 22 | 28 | 28 | 32 | 36 | 36 | 42 | 42 | 48 | 52 | 62 | 70 | 80 |
| min | 13.65 | 15.65 | 17.65 | 19.58 | 21.58 | 27.58 | 27.58 | 31.5 | 35.5 | 36.5 | 41.5 | 41.5 | 47.5 | 51.4 | 61.4 | 69.4 | 79.4 | |
| max | 14.35 | 16.35 | 18.35 | 20.42 | 22.42 | 28.42 | 28.42 | 32.5 | 36.5 | 36.5 | 42.5 | 42.5 | 48.5 | 52.6 | 62.6 | 70.6 | 80.6 | |
| h | 0.4 | 0.5 | 0.5 | 0.5 | 0.5 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | |
| b | 5 | 6 | 7 | 8 | 10 | 12 | 12 | 15 | 18 | 18 | 20 | 20 | 24 | 26 | 30 | 35 | 40 | |
| b1 | 9 | 11 | 12 | 16 | 19 | 21 | 25 | 32 | 38 | 38 | 39 | 42 | 48 | 55 | 65 | 78 | 90 | |
| r | 2.5 | 2.5 | 4 | 4 | 6 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 16 | 16 | 16 | 16 | 16 | |
| 1000 pcs/weight kg |
0.42 | 0.74 | 0.91 | 1.27 | 1.7 | 4.8 | 5.12 | 8.21 | 10.93 | 11.83 | 12.61 | 12.68 | 25.81 | 31.17 | 43.81 | 60.28 | 77.9 | |
