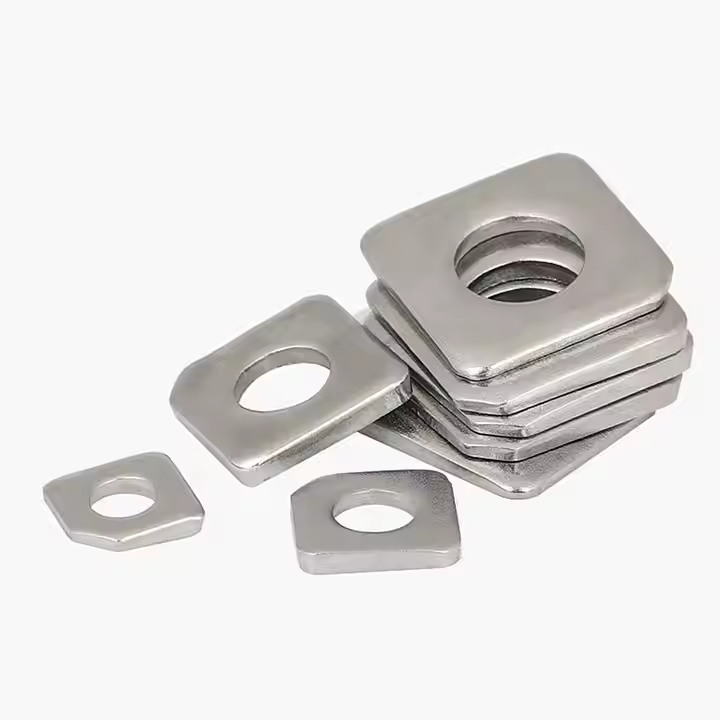

GB 853 square diagonal washers are mainly used for connecting channel steel, especially in situations where fastening is required along the groove direction of the channel steel. The GB 853 standard provides detailed specifications for the size range, tolerance requirements, material selection, and performance indicators of square diagonal washers for channel steel, ensuring that the washers can effectively disperse loads and prevent local stress concentration at the connection points.

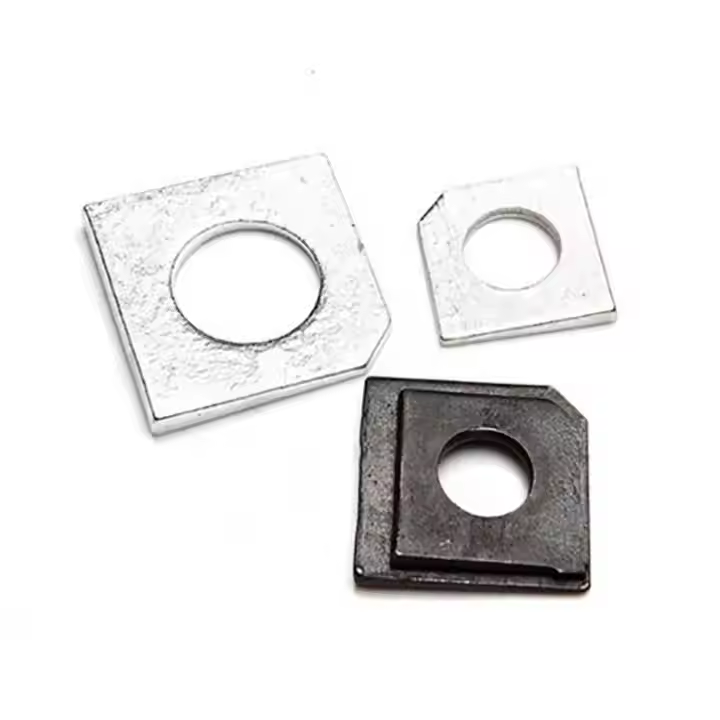

| Product Name | GB853 Square Taper Washers For Slot Section |
| Material | Carbon steel, Stainless steel |
| Surface Finish | Yellow zinc, Blackened,Decolourize |
| Colour | Yellow, Black, White |
| Standard Number | GB853 |
| Grade | 100HV 200HV |
| Diameter | 6 8 10 12 14 16 18 20 22 24 27 30 36 |
| Place of origin | Hebei, China |
| Brand | Muyi |
| Pack | Box+cardboard carton+pallet |
| The product can be customized | |
| GB 853 square diagonal washers are mainly used for connecting channel steel, especially in situations where fastening is required along the groove direction of the channel steel. The GB 853 standard provides detailed specifications for the size range, tolerance requirements, material selection, and performance indicators of square diagonal washers for channel steel, ensuring that the washers can effectively disperse loads and prevent local stress concentration at the connection points.100% | |

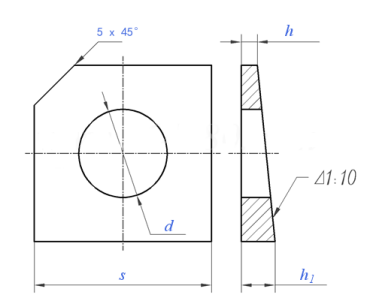

| Size | M6 | M8 | M10 | M12 | M16 | (M18) | M20 | (M22) | M24 | (M27) | M30 | M36 | |
| d | max | 6.96 | 9.36 | 11.43 | 13.93 | 17.93 | 20.52 | 22.52 | 24.52 | 26.52 | 30.52 | 33.62 | 39.62 |
| min | 6.6 | 9 | 11 | 13.5 | 17.5 | 20 | 22 | 24 | 26 | 30 | 33 | 39 | |
| s | 16 | 18 | 22 | 28 | 35 | 40 | 40 | 40 | 50 | 50 | 60 | 70 | |
| h | 2 | 2 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | |
| h1 | 3.6 | 3.8 | 4.2 | 4.8 | 5.4 | 7 | 7 | 7 | 8 | 8 | 9 | 10 | |
| 1000 pcs/weight kg |
4.75 | 5.79 | 9.31 | 16.9 | 28.22 | 30 | 47.43 | 44.61 | 84.33 | 76.78 | 128.3 | 187.7 | |
