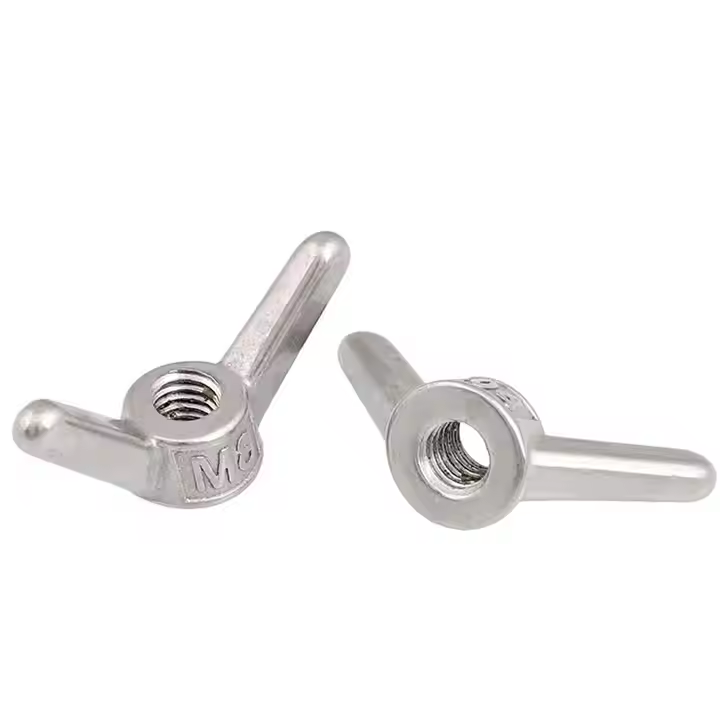

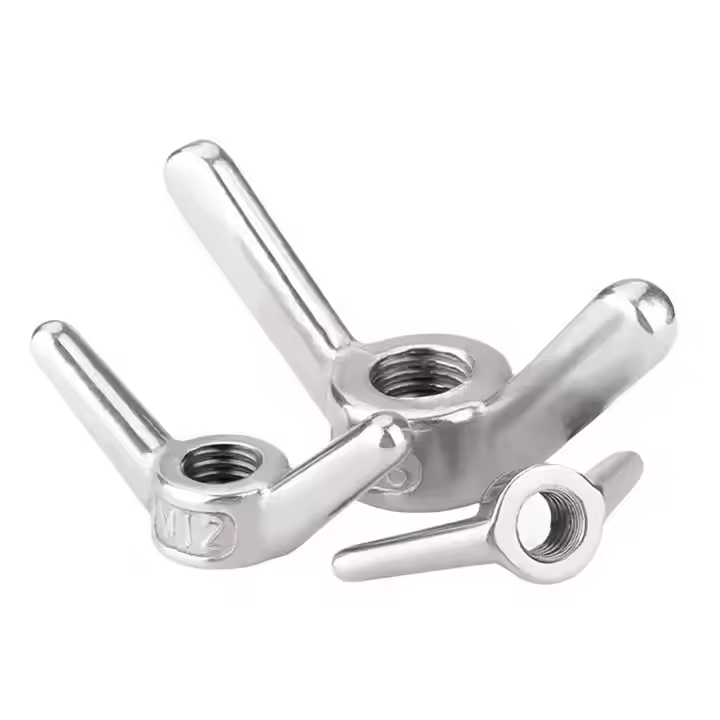

GB62.2 Butterfly Nut (Square Wing Butterfly Nut) is mainly used in occasions that require frequent disassembly and installation, especially suitable for furniture, mechanical equipment, and automotive fields. Its design features include flat square wings on both sides, allowing the nut to be easily rotated by fingers without the need for tools, thereby improving the convenience and efficiency of operation.
| Product Name | GB62.2 Wing Nut-Square Wing |
| Material | Carbon steel, Stainless steel |
| Surface Finish | Blue and white zinc, Decolourize,White Zinc |
| Colour | Blue White, White |
| Standard Number | GB62.2 |
| Grade | 4 A2-70 |
| Diameter | M3 M4 M5 M6 M8 M10 M12 M14 M16 |
| Thread form | Coarse thread |
| Place of origin | Hebei, China |
| Brand | Muyi |
| Pack | Box+cardboard carton+pallet |
| The product can be customized | |
| GB62.2 Butterfly Nut (Square Wing Butterfly Nut) is mainly used in occasions that require frequent disassembly and installation, especially suitable for furniture, mechanical equipment, and automotive fields. Its design features include flat square wings on both sides, allowing the nut to be easily rotated by fingers without the need for tools, thereby improving the convenience and efficiency of operation. | |

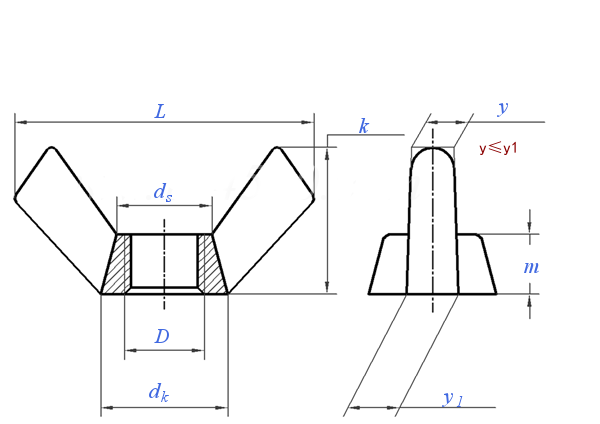

| Thread Spec D |
M3 | M4 | M5 | M6 | M8 | M10 | M12 | (M14) | M16 | |
| dk | min | 6.5 | 6.5 | 8 | 10 | 13 | 16 | 20 | 20 | 27 |
| ds | ≈ | 4 | 4 | 6 | 7 | 10 | 12 | 16 | 16 | 22 |
| L | nominal | 17 | 17 | 21 | 27 | 31 | 36 | 48 | 48 | 68 |
| max | 18.5 | 18.5 | 22.5 | 28.5 | 33 | 38 | 50 | 50 | 70 | |
| min | 15.5 | 15.5 | 19.5 | 25.5 | 29 | 34 | 46 | 46 | 66 | |
| k | nominal | 9 | 9 | 11 | 13 | 16 | 18 | 23 | 23 | 35 |
| max | 10.5 | 10.5 | 12.5 | 14.5 | 17.5 | 19.5 | 24.5 | 24.5 | 37 | |
| min | 7.5 | 7.5 | 9.5 | 11.5 | 14.5 | 16.5 | 21.5 | 21.5 | 33 | |
| m | min | 3 | 3 | 4 | 4.5 | 6 | 7.5 | 9 | 9 | 12 |
| y | max | 3 | 3 | 3.5 | 4 | 4.5 | 5.5 | 7 | 7 | 8 |
| y1 | min | 4 | 4 | 4.5 | 5 | 5.5 | 6.5 | 8 | 8 | 9 |
