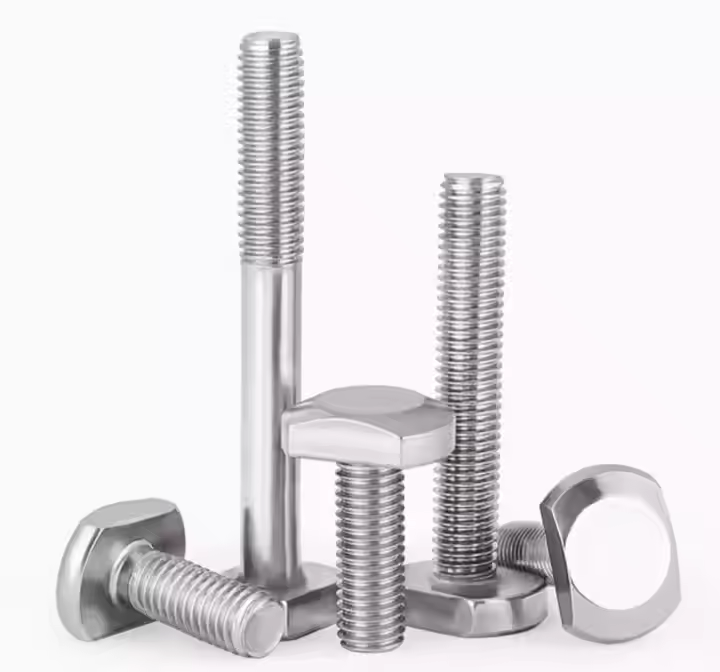

The T-bolt can be directly placed into the aluminum profile groove, and it can automatically position and lock during installation. It is often used in conjunction with flange nuts and is a standard matching connector for installing corner pieces. It can be selected and used according to the width of the profile groove and different series of profiles.

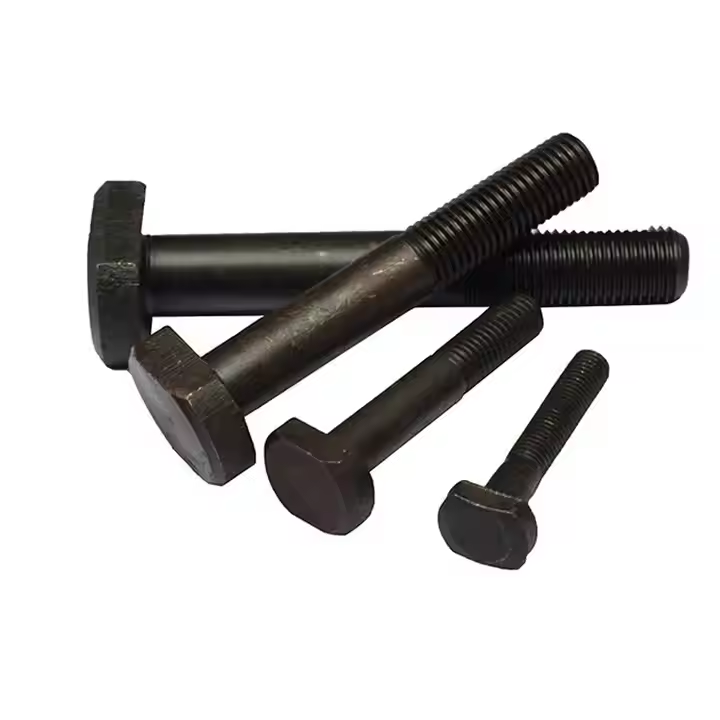

| Product Name | GB37 T-head bolt Half thread |
| Material | Carbon steel |
| Surface Finish | White zinc, Blackened, Natural color |
| Colour | Black, White |
| Standard Number | GB37 |
| Grade | 4.8 6.8 8.8 |
| Diameter | M8 M10 M12 M14 M16 M18 M20 M22 M24 M27 M30 M36 |
| Length | 20 25 30 35 40 45 50 55 60 70 120 130 140 150 |
| Thread form | Coarse thread |
| Thread | Half thread |
| Place of origin | Hebei, China |
| Brand | Muyi |
| Pack | Box+cardboard carton+pallet |
| The product can be customized | |
| The T-bolt can be directly placed into the aluminum profile groove, and it can automatically position and lock during installation. It is often used in conjunction with flange nuts and is a standard matching connector for installing corner pieces. It can be selected and used according to the width of the profile groove and different series of profiles. | |

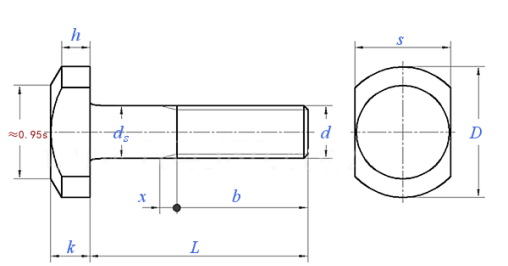

| Thread Spec d |
M8 | M10 | M12 | M16 | M20 | M24 | M30 | M36 | ||
| P | flight lead | 1.25 | 1.5 | 1.75 | 2 | 2.5 | 3 | 3.5 | 4 | |
| b | L≤125 | 22 | 26 | 30 | 38 | 46 | 54 | 66 | 78 | |
| 125＜L≤200 | 28 | 32 | 36 | 44 | 52 | 60 | 72 | 84 | ||
| L＞200 | / | / | / | 57 | 65 | 73 | 85 | 97 | ||
| ds | max | 8 | 10 | 12 | 16 | 20 | 24 | 30 | 36 | |
| min | 7.64 | 9.64 | 11.57 | 15.57 | 19.48 | 23.48 | 29.48 | 35.38 | ||
| D | 20 | 25 | 30 | 38 | 46 | 58 | 75 | 85 | ||
| k | max | 6.24 | 7.29 | 8.89 | 11.95 | 14.35 | 16.35 | 20.42 | 24.42 | |
| min | 5.76 | 6.71 | 8.31 | 11.25 | 13.65 | 15.65 | 19.58 | 23.58 | ||
| h | 4.1 | 4.8 | 6.5 | 9 | 10.4 | 11.8 | 14.5 | 18.5 | ||
| s | max | 14 | 18 | 22 | 28 | 34 | 44 | 56 | 67 | |
| min | 13.57 | 17.57 | 21.16 | 27.16 | 33 | 43 | 54.8 | 65.1 | ||
| x | max | 3.2 | 3.8 | 4.2 | 5 | 6.3 | 7.5 | 8.8 | 10 | |
DIN127 spring washers are mainly used in bolt connections, especially in bolt connections with a strength grade of 5.8 or below. Its main purpose is to prevent bolt loosening by increasing the axial rebound force to compensate for the loss of preload force caused by compression, thereby preventing the loosening of threaded connections.
1. DIN7991 adopts countersunk head design, countersunk head screw design so that it can be flush on the surface, will not protrude, increase the aesthetic. At the same time, the hex provides better torque transfer, reducing the possibility of sliding and damage. When the high strength grade (usually 10.9 grade) made of alloy steel is used, it has good tensile and shear resistance. DIN7991 screws make screws easier to install and tighten, and are suitable for applications where frequent disassembly is required 2. Hexagon flat head screw DIN7991 is widely used in many fields, such as automobiles and automobile new energy field, military aerospace field, shipbuilding heavy industry field, medical equipment field, food machinery field, electronic communication equipment field and wind power field.
1. The slotted structure of the slotted nut allows the nut to easily slide into the bolt or threaded rod without fully rotating. This design feature makes it easier to tighten in small or hard-to-reach Spaces and improves installation efficiency. 2. Slotted nuts have a wide range of applications, covering construction, machinery, electronics and other fields. In building structures, slotted nuts are often used to connect structural elements such as beams and columns. In mechanical assembly, it can be used to fix parts to ensure the normal operation of the machine; In the field of electronics, slotted nuts can be used to mount circuit boards and various devices.
DIN928 welded square nuts are widely used in multiple fields, including mechanical manufacturing, automotive industry, aerospace, photovoltaics, transportation, construction, and more. The characteristics of these application areas require high-strength and reliable fasteners, and DIN928 welded square nuts precisely meet these requirements. It can withstand high-strength tensile and shear forces, suitable for situations that require strong forces and vibrations. The design of the four corners provides better welding performance, making the connection more secure and reliable. It can be installed through welding or threaded connection, making installation simple and convenient. Suitable for various industrial fields, ensuring stability and reliability of connections.
1.Installation steps: ① Punch a hole ② Hammer the casing into the air ③ Screw the screw into the wall anchor ④ Installation is complete 2.Scope of application: Suitable for home decoration, industrial building materials, medical equipment, etc. 3.Product features: small and light, easy to carry, easy to take, strong and durable

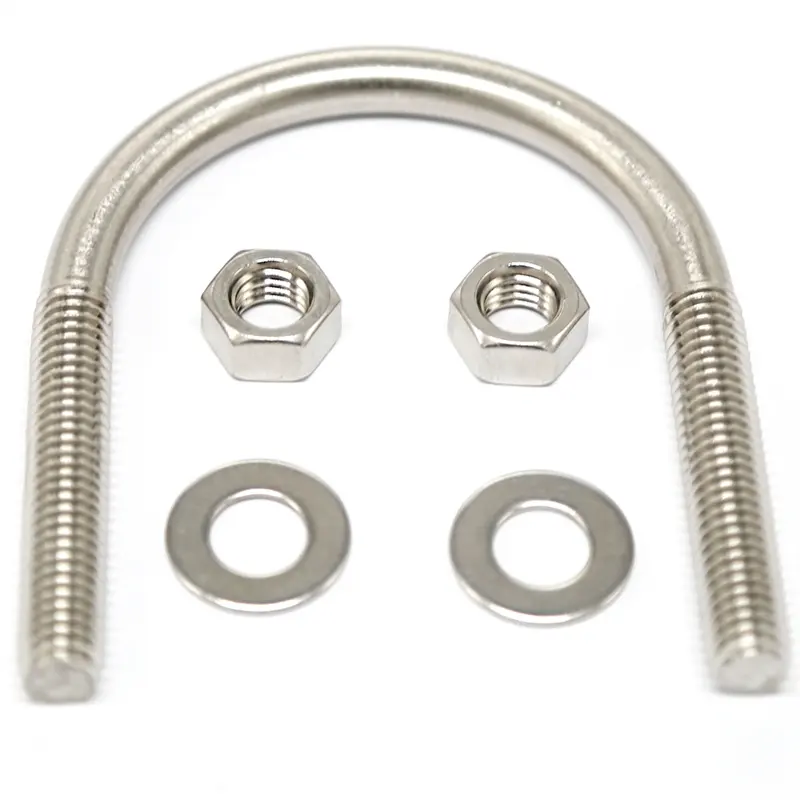

1. Fixation and connection: The main function of U-bolts is to fix and connect various equipment or objects. Due to its unique U-shaped design, it can firmly secure tubular or sheet-like objects, ensuring that they do not loosen or move during use. For example, in the automotive industry, U-bolts are commonly used to connect and secure steel plate springs to maintain the stability of the car chassis 2. Able to withstand multiple forces: U-bolts can withstand tensile and shear forces, and have strong vibration resistance. This means that it can maintain stability under different stress conditions, making it suitable for applications that require high stability. For example, in bridge, tunnel, and railway construction, U-bolts are widely used to ensure the stability and safety of the structure In summary, U-bolts play an important role in fixing, connecting, withstanding various forces, space utilization, and wide application fields. Its design and material selection make it one of the indispensable fasteners in many industries.
