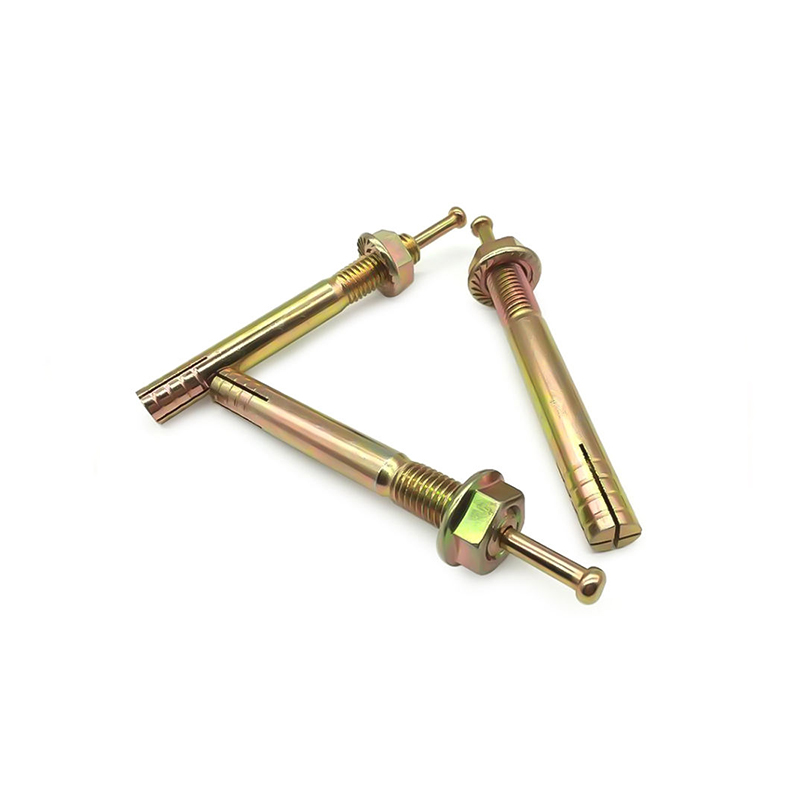

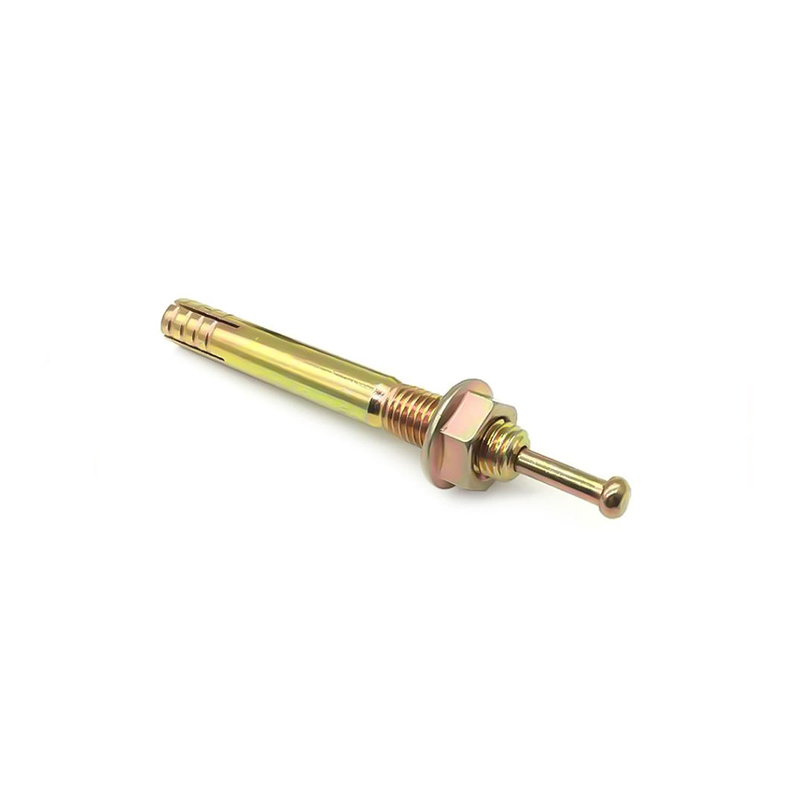

1. Core type expansion bolt is a common connector, widely used in construction, bridge, mechanical equipment and other fields. It has the advantages of simple installation, high bearing capacity, good seismic performance and so on
2 Core expansion is mainly used in buildings to install suspended ceilings, walls, steel structures, wire trough pipe supports, air pipes, door and window frames and other places that need to be fixed. The expansion anchor has the characteristics of simple installation, reliable, strong bearing capacity and wide application range. At the same time, it can also adjust the distance between the fixed object and the substrate by tightening the screws.
| Product Name | GB/T 22795-2008 Expansion anchors for use in concrete |
| Material | Carbon steel, Stainless steel |
| Surface Finish | Yellow zinc, Blackened, Blue and white zinc, Bleached |
| Colour | Yellow, Black, Blue White, White |
| Standard Number | DIN/ASME/ISO/GB |
| Grade | 4.8/6.8/8.8/10.9/12.9 ; A2-70 |
| Diameter | M1.4 M1.6 M2 M2.5 M3 M4......M80 M90 M100... |
| Thread form | Coarse thread, Medium thread, Fine thread |
| Place of origin | Hebei, China |
| Brand | Muyi |
| Pack | Box+cardboard carton+pallet |
| The product can be customized | |
| 1. Core type expansion bolt is a common connector, widely used in construction, bridge, mechanical equipment and other fields. It has the advantages of simple installation, high bearing capacity, good seismic performance and so on
2 Core expansion is mainly used in buildings to install suspended ceilings, walls, steel structures, wire trough pipe supports, air pipes, door and window frames and other places that need to be fixed. The expansion anchor has the characteristics of simple installation, reliable, strong bearing capacity and wide application range. At the same time, it can also adjust the distance between the fixed object and the substrate by tightening the screws. |
|

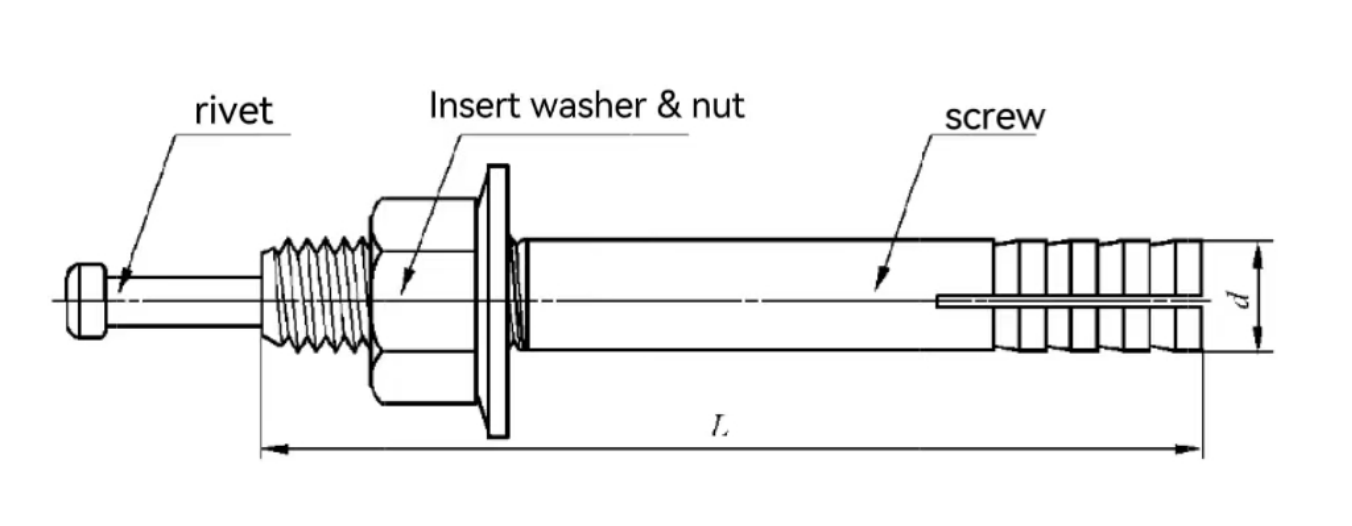

| size | M6 | M8 | M10 | M12 | M16 | M20 |
| Nominal diameter （d） |
6 | 8 | 10 | 12 | 14 | 20 |
| Nominal length （L） |
||||||
| 40 | √ | |||||
| 45 | √ | |||||
| 50 | √ | √ | √ | |||
| 60 | √ | √ | √ | |||
| 65 | √ | √ | √ | |||
| 70 | √ | |||||
| 75 | √ | √ | √ | |||
| 80 | √ | √ | √ | |||
| 90 | √ | √ | ||||
| 100 | √ | √ | √ | √ | ||
| 120 | √ | √ | √ | |||
| 130 | √ | |||||
| 150 | √ | √ | √ | |||
| 154 | √ | |||||
| 190 | √ | √ | ||||
| 230 | √ | |||||
