1.A washer is a seal that fills the gap between two mating surfaces, allowing the two workpieces to be connected together without leakage even when compressed.
2.A washer can fill some irregularities on the surface, allowing for some imperfections in the mating surfaces of the workpieces. washer are generally made by cutting and splitting thin sheets.
3.Generally speaking, the ideal washer material is one that allows a certain degree of deformation so that it can deform and fill the corresponding space (including some slight irregularities) during assembly. Some washer require the addition of sealants directly to the surface in order for the gasket to work properly.

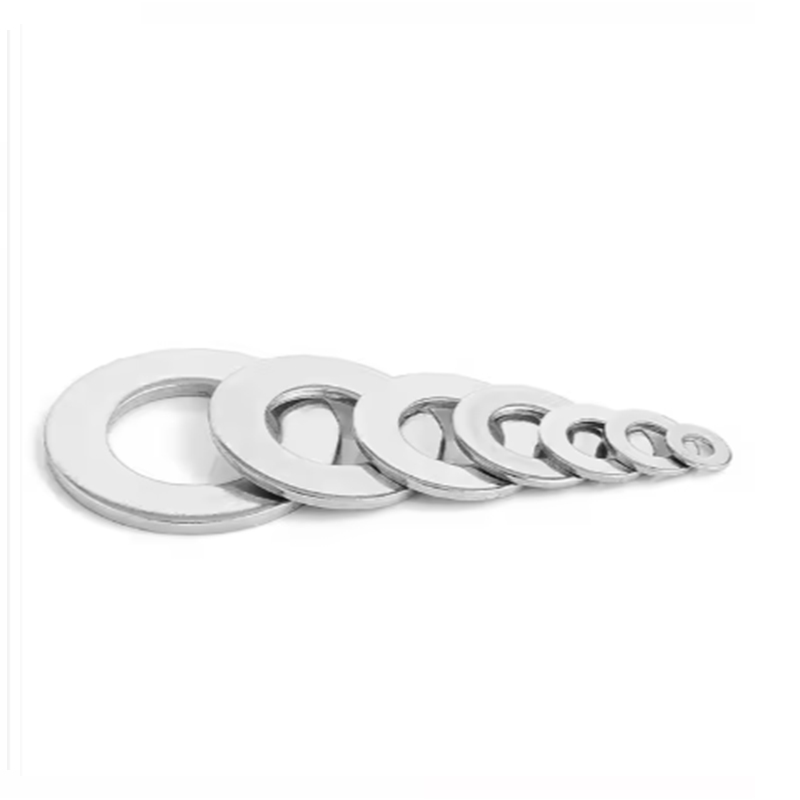

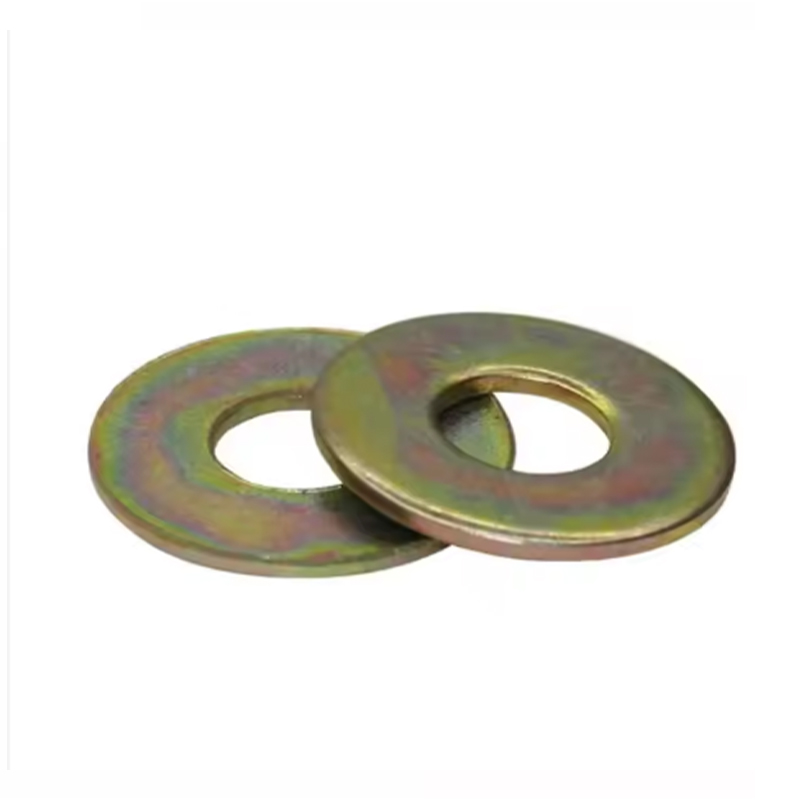

| Product Name | Flat Washer |
| Material | Carbon steel, Stainless steel |
| Surface Finish | Yellow zinc, Blackened, Blue and white zinc, Bleached |
| Colour | Yellow, Black, Blue White, White |
| Standard Number | DIN,ASME,ASNI,ISO |
| Grade | 4.8 5.8 8.8 10.9 A2-70 |
| Diameter | M1.6 M2 M4 M5 M6 M7 M8 M10 M12 M14 M16 M18 M20 M45 M48 M52 M56 M60 M64 |
| Thread form | Coarse thread, Fine thread |
| Place of origin | Hebei, China |
| Brand | Muyi |

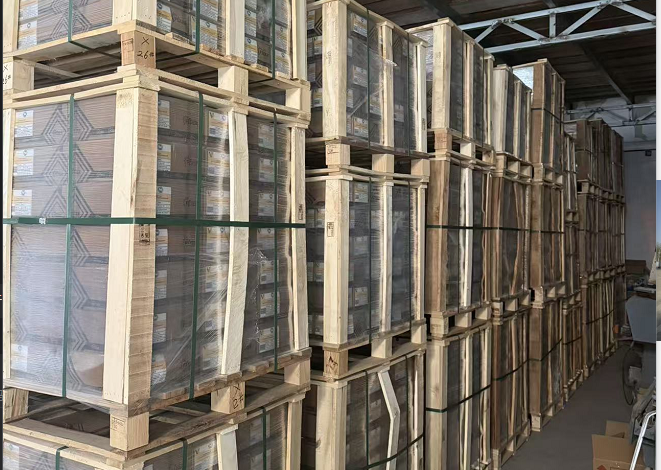

| Pack | Box+cardboard carton+pallet |
| The product can be customized | |
| 1.A washer is a seal that fills the gap between two mating surfaces, allowing the two workpieces to be connected together without leakage even when compressed. 2.A washer can fill some irregularities on the surface, allowing for some imperfections in the mating surfaces of the workpieces. washer are generally made by cutting and splitting thin sheets. 3.Generally speaking, the ideal washer material is one that allows a certain degree of deformation so that it can deform and fill the corresponding space (including some slight irregularities) during assembly. Some washer require the addition of sealants directly to the surface in order for the gasket to work properly. |
|

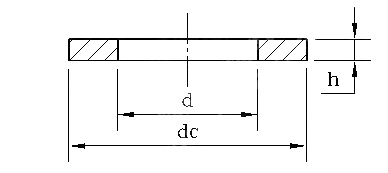

| Thread Spec d |
M1.6 | M2 | M2.5 | M3 | M4 | M5 | M6 | M8 | M10 | M12 | M14 | M16 | M18 | M20 | |||
| d | max | 1.84 | 2.34 | 2.84 | 3. 38 | 4.48 | 5.48 | 6.62 | 8.62 | 10.77 | 13.27 | 15. 27 | 17.27 | 19.38 | 21.33 | ||
| min | 1.7 | 2.2 | 2.7 | 3.2 | 4.3 | 5.3 | 6.4 | 8.4 | 10.5 | 13 | 15 | 17 | 19 | 21 | |||
| dc | max | 4 | 5 | 6 | 7 | 9 | 10 | 12 | 16 | 20 | 24 | 28 | 30 | 34 | 37 | ||
| min | 3.7 | 4.7 | 5.7 | 6.64 | 8.64 | 9.64 | 11.57 | 15.57 | 19.48 | 23.48 | 27.48 | 29.48 | 33.38 | 36.38 | |||
| h | Nominal | 0.3 | 0.3 | 0.5 | 0.5 | 0.8 | 1 | 1.6 | 1.6 | 2 | 2.5 | 2.5 | 3 | 3 | 3 | ||
| max | 0.35 | 0.35 | 0.55 | 0.55 | 0.9 | 1.1 | 1.8 | 1.8 | 2.2 | 2.7 | 2.7 | 3.3 | 3.3 | 3.3 | |||
| min | 0.25 | 0.25 | 0.45 | 0.45 | 0.7 | 0.9 | 1.4 | 1.4 | 1.8 | 2.3 | 2.3 | 2.7 | 2.7 | 2.7 | |||
| Thread Spec d |
M22 | M24 | M27 | M30 | M33 | M36 | M39 | M42 | M45 | M48 | M52 | M56 | M60 | M64 | |||
| d | max | 23.33 | 25.33 | 28.33 | 31.39 | 34.62 | 37.62 | 42.62 | 45.62 | 48.62 | 52.74 | 56.74 | 62.74 | 66.74 | 70.74 | ||
| min | 23 | 25 | 28 | 31 | 34 | 37 | 42 | 45 | 48 | 52 | 56 | 62 | 66 | 70 | |||
| dc | max | 39 | 44 | 50 | 56 | 60 | 66 | 72 | 78 | 85 | 92 | 98 | 105 | 110 | 115 | ||
| min | 38.38 | 43.38 | 49.38 | 55.26 | 58.8 | 64.8 | 70.8 | 76.8 | 83.6 | 90.6 | 96.6 | 103.6 | 108.6 | 113.6 | |||
| h | Nominal | 3 | 4 | 4 | 4 | 5 | 5 | 6 | 8 | 8 | 8 | 8 | 10 | 10 | 10 | ||
| max | 3.3 | 4.3 | 4.3 | 4.3 | 5.6 | 5.6 | 6.6 | 9 | 9 | 9 | 9 | 11 | 11 | 11 | |||
| min | 2.7 | 3.7 | 3.7 | 3.7 | 4.4 | 4.4 | 5.4 | 7 | 7 | 7 | 7 | 9 | 9 | 9 | |||
Hexagonal embedded locking nut is a type of fastener that can lock threads. It is widely used in fields such as mechanical manufacturing, automotive manufacturing, and electronic equipment. In high-speed mechanical equipment, locking nuts can effectively prevent thread loosening and ensure the safe and stable operation of the equipment.
1. The cap nut and stainless steel hexagonal slotted nut are matched with an open pin and threaded bolt with holes to withstand vibration and alternating loads, which can prevent the nut from loosening and coming out. 2. Cap shaped nuts with inserts, which rely on tightening the nut to tap the internal thread, can provide anti loosening effect and have good elasticity. The purpose of the 3-cap nut is the same as that of the hex nut. Its characteristic is that when assembling and disassembling, a wrench is used to clamp the main nut, which is not easy to slip. However, only an adjustable wrench, a fixed wrench, a dual-purpose wrench (for the opening part), or a specially designed square hole socket wrench can be used for assembly and disassembly. Mostly used on rough and simple components. 4. Cap nuts are suitable for high-strength fasteners, mechanical fasteners, furniture fasteners, vehicle fasteners, machining special-shaped parts, cold heading special-shaped fasteners, double headed foot U-wires, and building decoration fasteners
1. A threaded rod, also known as a stud, is a relatively long rod that is threaded on both ends; the thread may extend along the complete length of the rod.They are designed to be used in tension. 2. First, threaded rods can be used as transmission elements in mechanical devices. Second, threaded rods can also be used to fasten structures. In addition, threaded rods can also be used in adjustment devices. In addition, threaded rods also play an important role in the field of scientific experiments and measurements. 3. Wide application: Threaded rods are usually used in conjunction with nuts. By rotating the threaded rods, the purpose of clamping, fixing or adjusting objects can be achieved.It is widely used in engineering, construction and scientific experiments. Its main function is to support or connect mechanical components. Through threaded rods, mechanical components can be stably supported, reliably connected, powered, and precisely adjusted.
1. T-head bolts are characterized by high load carrying capacity and tensile strength, and can be used in a variety of different environments. Because of their unique shape, T-bolts can be easily used with nuts and washers, which allows for better load distribution and less stress concentration. In addition, T-bolts also have good seismic performance and can be used in vibration and shock environments. 2. T-head bolts have a wide range of uses and can be used to fix various equipment and components, such as machine frames, panels, supports, guides and so on. It can also be used in Bridges, construction, automobiles, ships and other fields. In these fields, T-bolts are widely used in a variety of structural connection and fastening occasions.
The T-bolt can be directly placed into the aluminum profile groove, and it can automatically position and lock during installation. It is often used in conjunction with flange nuts and is a standard matching connector for installing corner pieces. It can be selected and used according to the width of the profile groove and different series of profiles.
DIN127 spring washers are mainly used in bolt connections, especially in bolt connections with a strength grade of 5.8 or below. Its main purpose is to prevent bolt loosening by increasing the axial rebound force to compensate for the loss of preload force caused by compression, thereby preventing the loosening of threaded connections.
GB855 Tab Washers With Long Tab And Wing are mainly used to prevent bolts or nuts from loosening, and are commonly used in mechanical connections that require high reliability and stability. Its structural feature is that one ear is folded towards the bolt head, and the other ear is folded towards the connecting piece (with a small hole on the connecting piece), achieving the anti loosening function of the bolt through this design.
1. Fixation and connection: The main function of U-bolts is to fix and connect various equipment or objects. Due to its unique U-shaped design, it can firmly secure tubular or sheet-like objects, ensuring that they do not loosen or move during use. For example, in the automotive industry, U-bolts are commonly used to connect and secure steel plate springs to maintain the stability of the car chassis 2. Able to withstand multiple forces: U-bolts can withstand tensile and shear forces, and have strong vibration resistance. This means that it can maintain stability under different stress conditions, making it suitable for applications that require high stability. For example, in bridge, tunnel, and railway construction, U-bolts are widely used to ensure the stability and safety of the structure In summary, U-bolts play an important role in fixing, connecting, withstanding various forces, space utilization, and wide application fields. Its design and material selection make it one of the indispensable fasteners in many industries.
The significant feature of the flange bolt with anti slip teeth is that its bottom is designed with serrated protrusions, which greatly enhances the fit between the bolt and nut, effectively avoiding loosening problems caused by vibration or prolonged operation. This feature makes toothed flange bolts an ideal choice for high load and high vibration situations, such as heavy machinery equipment, automotive power systems, and fine electronic equipment. In these applications, the stability and reliability of the connecting components are key factors in ensuring the quiet operation of the equipment, and the excellent anti loosening performance of the flange bolts with anti slip teeth has won widespread recognition and application.
1. Casting: Steel wire rope clamps are commonly used for static tying and rope tensioning, such as for power and communication lines, bundling and fastening. 2. Forging: Forged steel wire rope clamps are commonly used for lifting and carrying loads, such as various engineering lifting machinery, metallurgical mining equipment, oilfield derricks, port and railway loading and unloading, forestry machinery, power equipment, aviation and sea transportation, land transportation, engineering rescue, salvaging sunken ships, factory and mining enterprise lifting, hoisting, and traction rigging. 3. Stainless steel wire rope clamps are used in environments such as ship parts, chemical plants, and radiation due to their corrosion resistance and resistance to rusting
As a common fastener, square head bolt is a special type of bolt with a square head and unique shape and characteristics. It is widely used in mechanical manufacturing, construction industry, automobile manufacturing and other fields. 1. Mechanical manufacturing: Square head bolts are widely used in the field of mechanical manufacturing, such as mechanical equipment, machine tools, transmission devices, etc. 2. Construction industry: In the construction field, square head bolts are commonly used to fix various components such as beams, slabs, columns, etc. 3. Automotive manufacturing: In the process of automotive manufacturing, square head bolts are used to secure automotive components such as engines, transmissions, etc.
1. DIN7991 adopts countersunk head design, countersunk head screw design so that it can be flush on the surface, will not protrude, increase the aesthetic. At the same time, the hex provides better torque transfer, reducing the possibility of sliding and damage. When the high strength grade (usually 10.9 grade) made of alloy steel is used, it has good tensile and shear resistance. DIN7991 screws make screws easier to install and tighten, and are suitable for applications where frequent disassembly is required 2. Hexagon flat head screw DIN7991 is widely used in many fields, such as automobiles and automobile new energy field, military aerospace field, shipbuilding heavy industry field, medical equipment field, food machinery field, electronic communication equipment field and wind power field.

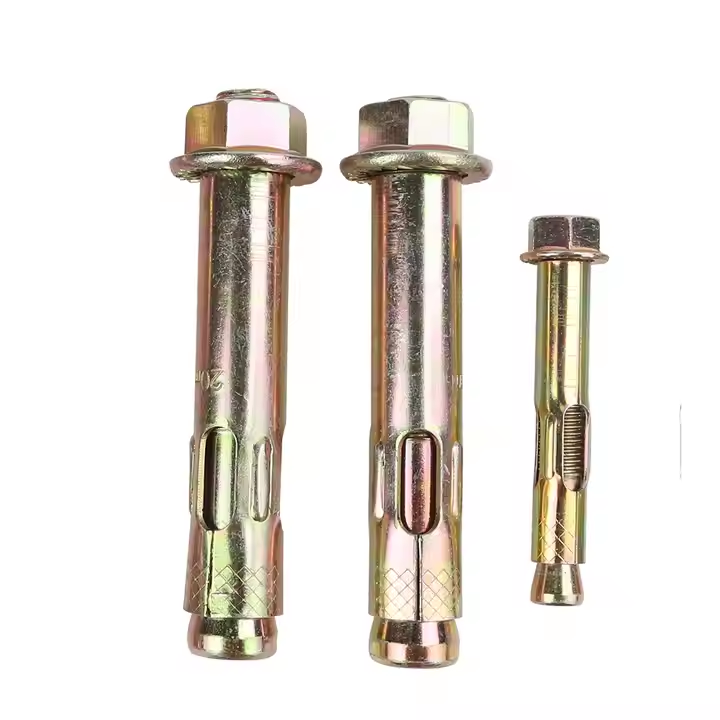

1.The good expansion curve design greatly enhances the anchoring force of the anchor bolt, and the edge of the tube head can effectively prevent the expansion screw from entering the deep inside the hole due to drilling too deep 2. Widely used :Concrete, natural dense stone, solid brick, solid gray sand brick light concrete, hollow concrete brick, etc.;

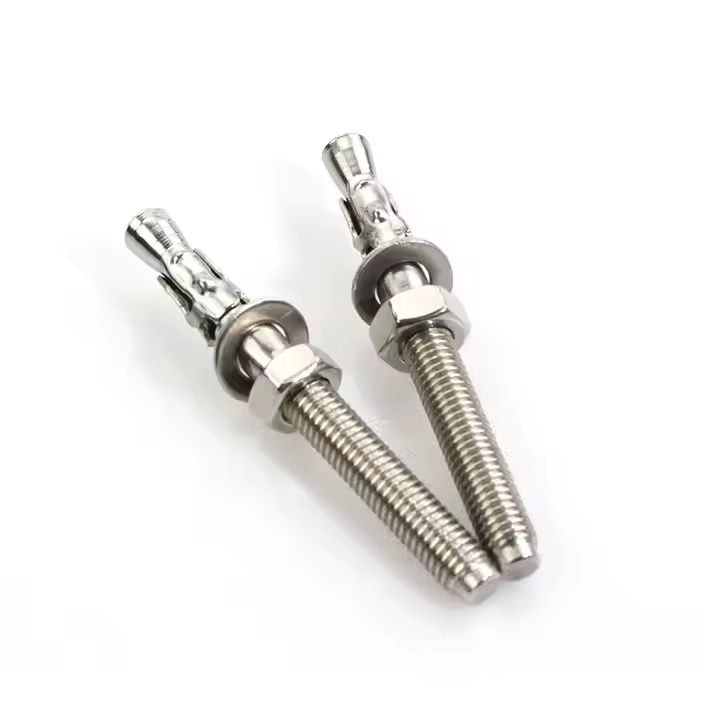

Wedge anchors are mainly used for heavy-duty equipment such as pipe gallery hangers, seismic support hangers, glass exterior walls, elevator brackets, shelves, and railings. In addition, it is also suitable for concrete and dense natural stone, metal structures, metal profiles, bottom plates, support plates, brackets, machine beams, beams, brackets, etc.
