Corrosion resistance: Flat cone semi hollow rivets can provide good corrosion resistance due to their enlarged head. This characteristic makes it particularly suitable for riveting applications in highly corrosive environments such as ship hulls, boiler water tanks, etc

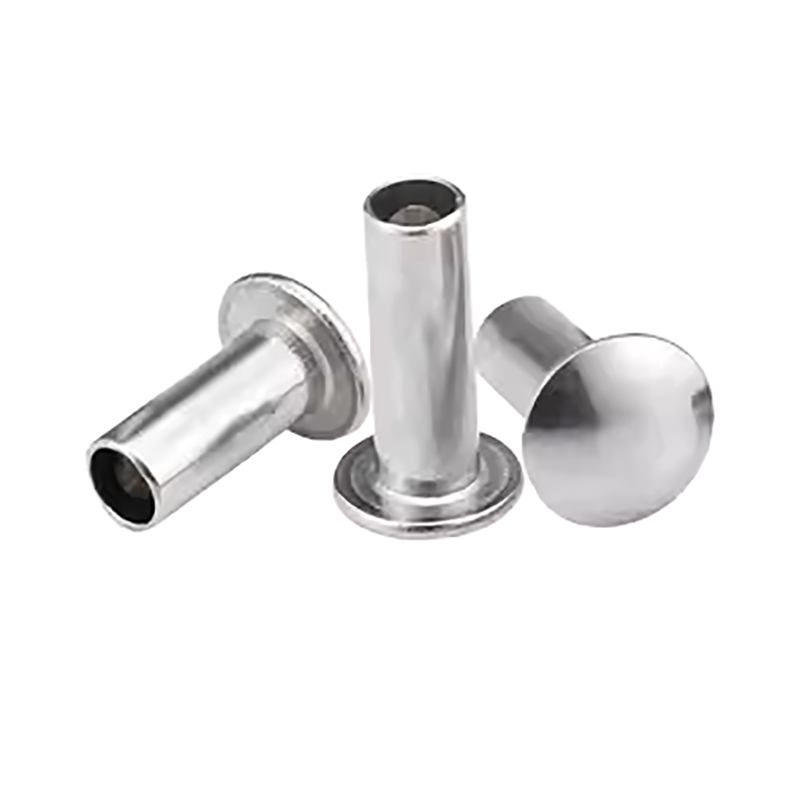

| Product Name | flat taper head socket shank rivet |
| Material | Carbon steel, Stainless steel |
| Surface Finish | Yellow zinc, Blackened, Blue and white zinc, Bleached |
| Colour | Yellow, Black, Blue White, White |
| Standard Number | |
| Grade | 4 8 10 A2-70 |
| Diameter | Φ1.4 Φ1.6 Φ2 Φ2.4 Φ3 Φ3.5 Φ4 Φ5 Φ6 Φ8 Φ10 |
| Thread form | |
| Place of origin | Hebei, China |
| Brand | Muyi |
| Pack | Box+cardboard carton+pallet |
| The product can be customized | |
| 1. Corrosion resistance: Flat cone semi hollow rivets can provide good corrosion resistance due to their enlarged head. This characteristic makes it particularly suitable for riveting applications in highly corrosive environments such as ship hulls, boiler water tanks, etc 2. Structural strength: The structural design of the flat cone head semi hollow rivet enables it to exhibit good stability under certain loads. Although its nail head is large, during the riveting process, the rivet can firmly fix the parts of the riveted part through its own deformation or interference fit connection 3. Smooth surface: Although the head of the flat cone head semi hollow rivet is larger, it is also suitable for certain applications, such as riveting situations where the surface needs to be kept smooth and the load is not large. This indicates that this type of rivet has a certain flexibility in balancing strength and appearance |
|

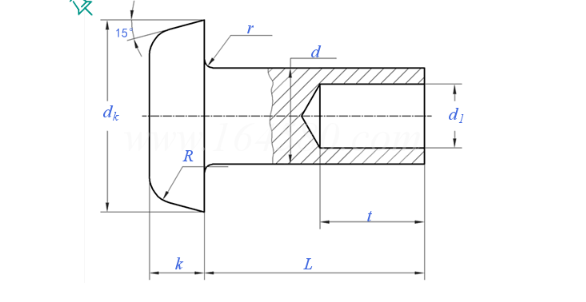

| 公称直径 | Φ1.4 | (Φ1.6) | Φ2 | Φ2.5 | Φ3 | (Φ3.5) | Φ4 | Φ5 | Φ6 | Φ8 | Φ10 | |||
| d | 最大值 | 1.46 | 1.66 | 2.06 | 2.56 | 3.06 | 3.58 | 4.08 | 5.08 | 6.08 | 8.1 | 10.1 | ||
| 最小值 | 1.34 | 1.54 | 1.94 | 2.44 | 2.94 | 3.42 | 3.92 | 4.92 | 5.92 | 7.9 | 9.9 | |||
| dk | 最大值 | 2.7 | 3.2 | 3.84 | 4.74 | 5.64 | 6.59 | 7.49 | 9.29 | 11.15 | 14.75 | 18.35 | ||
| 最小值 | 2.3 | 2.8 | 3.36 | 4.26 | 5.16 | 6.01 | 6.91 | 8.71 | 10.45 | 14.05 | 17.65 | |||
| k | 最大值 | 0.9 | 0.9 | 1.2 | 1.5 | 1.7 | 2 | 2.2 | 2.7 | 3.2 | 4.24 | 5.24 | ||
| 最小值 | 0.7 | 0.7 | 0.8 | 1.1 | 1.3 | 1.6 | 1.8 | 2.3 | 2.8 | 3.76 | 4.76 | |||
| d1 | 黑色金属 | 最大值 | 0.77 | 0.87 | 1.12 | 1.62 | 2.12 | 2.32 | 2.62 | 3.66 | 4.66 | 6.16 | 7.7 | |
| 最小值 | 0.65 | 0.75 | 0.94 | 1.44 | 1.94 | 2.14 | 2.44 | 3.42 | 4.42 | 5.92 | 7.4 | |||
| 有色金属 | 最大值 | 0.77 | 0.87 | 1.12 | 1.62 | 2.12 | 2.32 | 2.52 | 3.46 | 4.16 | 4.66 | 7.7 | ||
| 最小值 | 0.65 | 0.75 | 0.94 | 1.44 | 1.94 | 2.14 | 2.34 | 3.22 | 3.92 | 4.42 | 7.4 | |||
| t | 最大值 | 1.64 | 1.84 | 2.24 | 2.74 | 3.24 | 3.79 | 4.29 | 5.29 | 6.29 | 8.35 | 10.35 | ||
| 最小值 | 1.16 | 1.36 | 1.76 | 2.26 | 2.76 | 3.21 | 3.71 | 4.71 | 5.71 | 7.65 | 9.65 | |||
| r | 最大值 | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | ||
| R | 最大值 | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | 1 | 1 | 1 | 1 | 1 | 1 | ||
