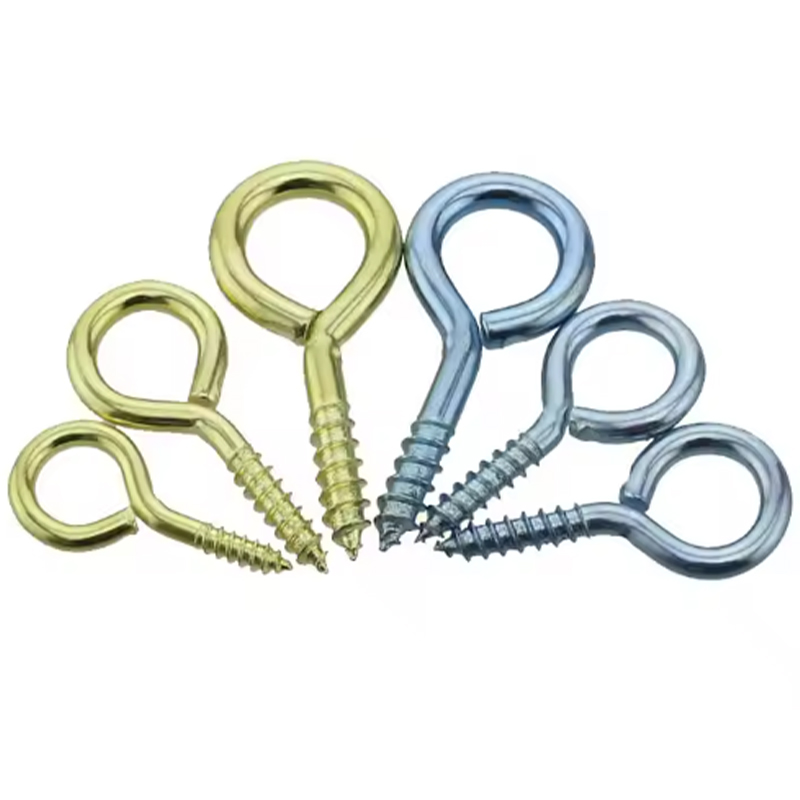

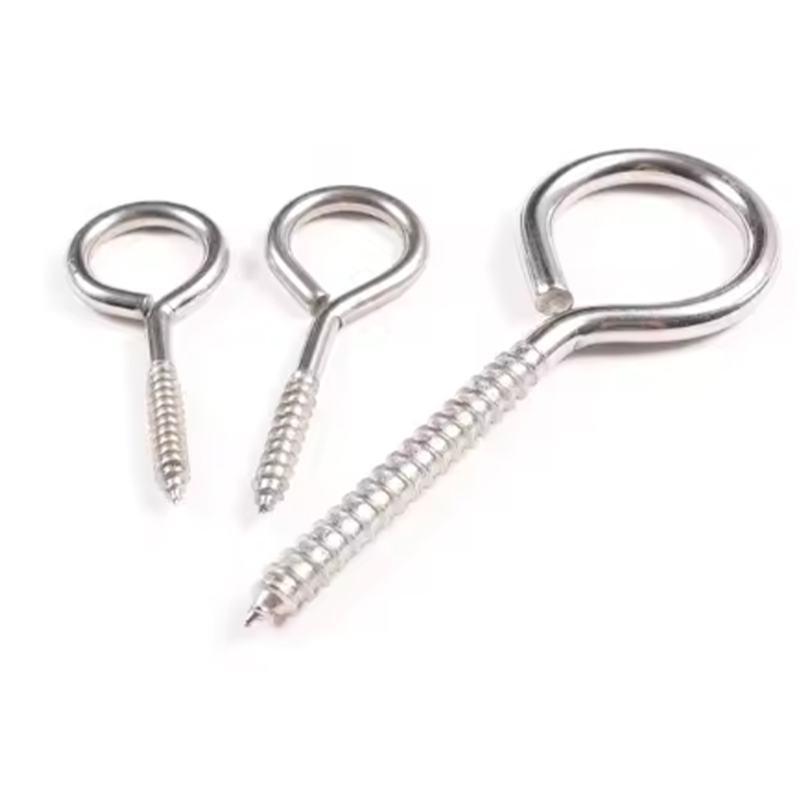

1.Eye wood screws, also known as sheep eye, sheep eye ring, sheep eye nail, sheep eye bolt, etc., have flat head, pointed head, open head and closed head. The welding methods of eye wood screws are spot welding and full welding.
2. Wide application: Eye wood screws are widely used as accessories for hanging accessories and are also one of the commonly used hardware accessories for architectural decoration.They are used to fix and connect various decorative materials.Eye wood screws are also widely used in ports, electric power, steel, shipbuilding, petrochemicals, mining, railways, construction, metallurgy and chemical industry, automobile manufacturing, plastic machinery, industrial control, highways, large-scale transportation, pipeline auxiliary installation, slope tunnels, shaft management and protection, maritime rescue, marine engineering, airport construction, bridges, aviation, aerospace, venues and other important industries as well as mechanical equipment of infrastructure projects.
| Product Name | Eyes Wood Screws |
| Material | Carbon steel, Stainless steel |
| Surface Finish | Yellow zinc, Blackened, Blue and white zinc, Bleached |
| Colour | Yellow, Black, Blue White, White |
| Standard Number | DIN/GB/ASME/ASNI/ISO |
| Grade | 4.8/5.8/6.8/8.8/10.9/12.9 |
| Diameter | M2.5 M3 M3.5 M4 M4.5 M5 M6 |
| Thread form | Coarse thread, Fine thread |
| Place of origin | Hebei, China |
| Brand | Muyi |
| Pack | Box+cardboard carton+pallet |
| The product can be customized | |
| 1.Eye wood screws, also known as sheep eye, sheep eye ring, sheep eye nail, sheep eye bolt, etc., have flat head, pointed head, open head and closed head. The welding methods of eye wood screws are spot welding and full welding. 2. Wide application: Eye wood screws are widely used as accessories for hanging accessories and are also one of the commonly used hardware accessories for architectural decoration.They are used to fix and connect various decorative materials.Eye wood screws are also widely used in ports, electric power, steel, shipbuilding, petrochemicals, mining, railways, construction, metallurgy and chemical industry, automobile manufacturing, plastic machinery, industrial control, highways, large-scale transportation, pipeline auxiliary installation, slope tunnels, shaft management and protection, maritime rescue, marine engineering, airport construction, bridges, aviation, aerospace, venues and other important industries as well as mechanical equipment of infrastructure projects. |
|

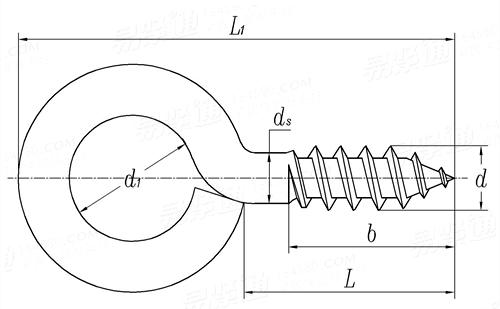

| Thread Spec | 2.25 | 2.5 | 3 | 3 | 3.5 | 4 | 4.5 | 5 | 6 | 6 | ||
| d | 1 | max | 3 | 3.3 | 4.2 | 4.2 | 4.5 | 5 | 6 | 7 | 7.8 | 7.8 |
| min | 2.6 | 2.9 | 3.7 | 3.7 | 4 | 4.5 | 5.5 | 6 | 7.4 | 7.4 | ||
| P | 1 | Pitch | 1.1 | 1.2 | 1.5 | 1.5 | 1.6 | 1.75 | 2 | 2 | 2.9 | 2.9 |
| d | 2 | max | 2.25 | 2.5 | 3 | 3 | 3.5 | 4 | 4.5 | 5 | 6 | 6 |
| min | 2 | 2.2 | 2.6 | 2.6 | 3 | 3.5 | 4 | 4.5 | 5.5 | 5.5 | ||
| P | 2 | Pitch | 1.1 | 1.25 | 1.5 | 1.5 | 1.5 | 1.75 | 2 | 2 | 2.5 | 2.5 |
| ds | max | 2.25 | 2.5 | 3 | 3 | 3.5 | 4 | 4.5 | 5 | 6 | 6 | |
| min | 2 | 2.2 | 2.6 | 2.6 | 3 | 3.4 | 3.8 | 4.3 | 5.3 | 5.3 | ||
| d1 | max | 5.4 | 6.4 | 7.4 | 9.5 | 9.5 | 10.5 | 12.5 | 14.6 | 14.6 | 16.6 | |
| min | 5 | 6 | 7 | 9 | 9 | 10 | 12 | 14 | 14 | 16 | ||
As a common fastener, square head bolt is a special type of bolt with a square head and unique shape and characteristics. It is widely used in mechanical manufacturing, construction industry, automobile manufacturing and other fields. 1. Mechanical manufacturing: Square head bolts are widely used in the field of mechanical manufacturing, such as mechanical equipment, machine tools, transmission devices, etc. 2. Construction industry: In the construction field, square head bolts are commonly used to fix various components such as beams, slabs, columns, etc. 3. Automotive manufacturing: In the process of automotive manufacturing, square head bolts are used to secure automotive components such as engines, transmissions, etc.
DIN557 single chamfered square nuts are mainly used in applications that require high-strength connections and corrosion resistance, such as power engineering, road transportation, home building materials, and other industries. The design features of this nut include a single-sided chamfer, which is easy to install and can improve the stability and reliability of the connection.
1. This Strut Channel Support Solar Panel Bracket features a sturdy steel construction, ensuring a long-lasting and reliable mounting solution for solar panel system. 3. Wide application: The cross-sectional shape of c shape u strut channel steel gives it excellent strength and rigidity, and has good compressive resistance. C shape u strut channel steel is widely used in building structures, supporting structures, and machinery manufacturing.

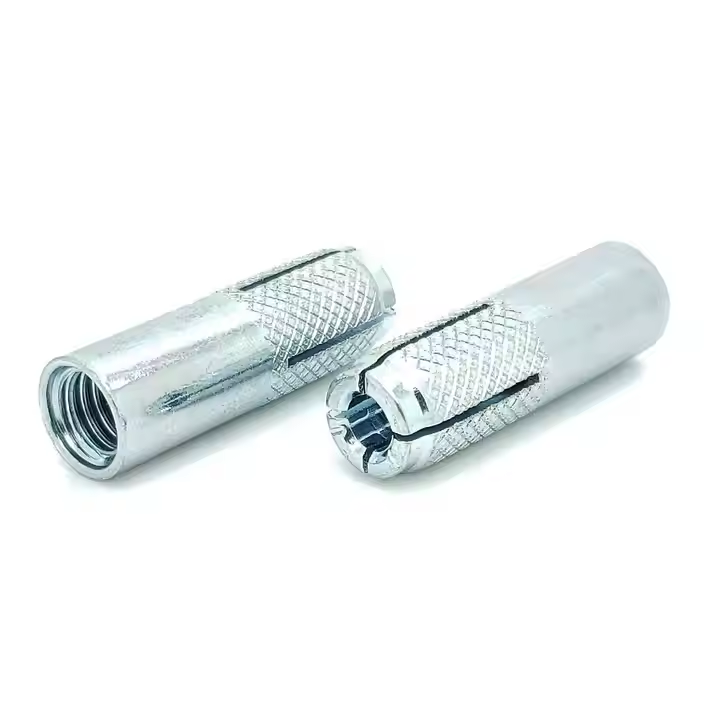

1. Drop in Anchor is a kind of expansion bolt, Drop in Anchor thread is long and easy to install, usually used for heavy load facilities, so it is widely used, many industries can basically be used, generally play a fixed role, suitable for concrete and dense natural stone, metal structure, metal sheet, floor, support plate, bracket, railing and so on. 2. Widely used : the end of the pipe stretched into the hole of the tube plate by theDrop in Anchor rolls, resulting in continuous expansion of the inner wall of the tube, resulting in plastic deformation, the diameter of the tube increases, the tube head is completely fitted to the hole wall of the tube plate, and the tube plate is forced to produce elastic deformation. When the tube expander is removed, the elastic deformation of the tube plate wants to return to its original state, and the plastic deformation of the tube end can not be recovered, and the result is that the tube plate holds the tube end tightly, so as to achieve the purpose of sealing and firmly connecting the two.
