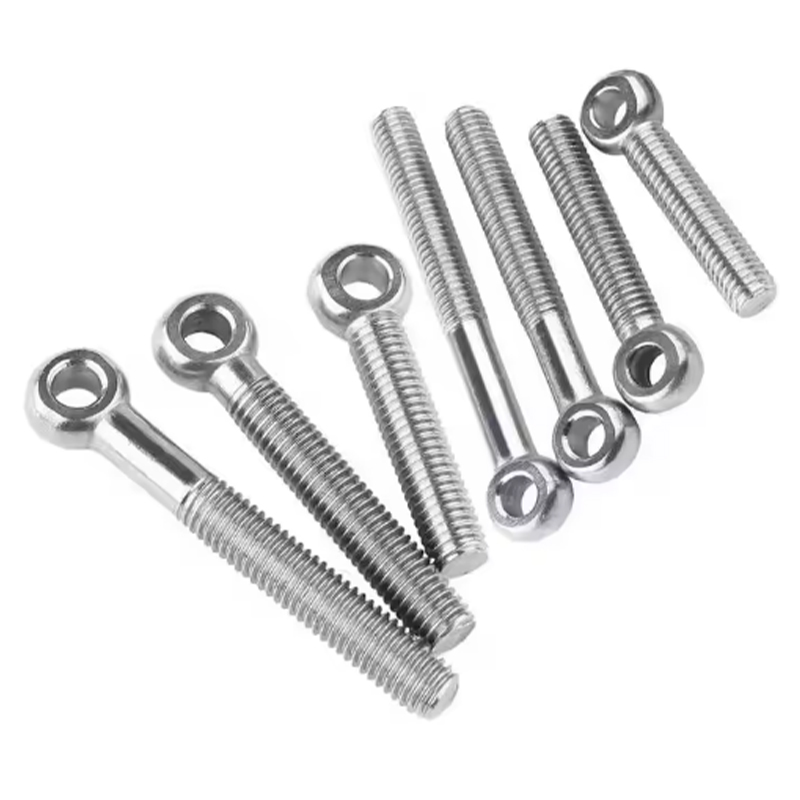

1.The head of the bolt is spherical with holes, the spherical surface is smooth, the installation of the Eye Bolts is relatively simple, and it is often used for the occasion of opening and disassembling or the tooling assembly.The thread precision of the Eye Bolts is high, which can improve the quality of the whole workpiece as an accessory.
2.Eye Bolts are widely used in: low temperature and high pressure valves, pressure pipelines, fluid engineering, oil drilling and production equipment, oilfield equipment and other fields, often in the disconnecting occasions or tools such as the valve industry, folding bicycles, strollers are used, because the use of Eye Bolts is convenient and fast, and the use of matching nuts plays the role of connection fastening, a wide range of applications.
| Product Name | Eye Bolt /Loose Joint Bolt |
| Material | Carbon steel, Stainless steel |

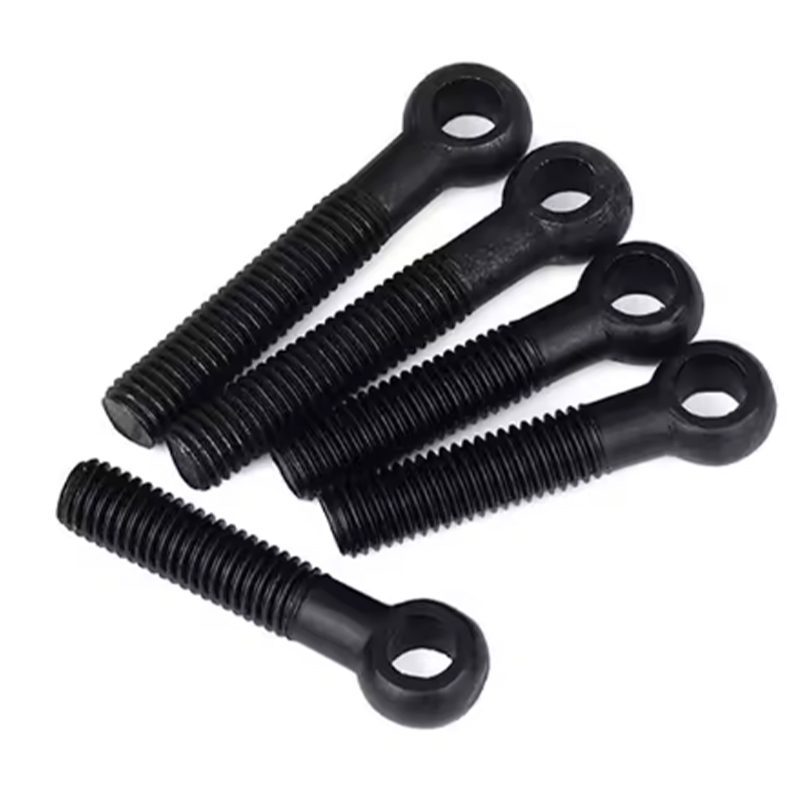

| Surface Finish | Yellow zinc, Blackened, Blue and white zinc, Bleached |
| Colour | Yellow, Black, Blue White, White |
| Standard Number | DIN/GB/ISO |
| Grade | 4.8 6.8 8.8 10.9 A2-70 |
| Diameter | M5 M6 M8 M10 M12 M16 M20 M24 M27*24 M27*25 M30*27 M30*28 M33 M36*32 M36*33 M39*35 M39*36 M39 |
| Thread form | Coarse thread, Fine thread |
| Place of origin | Hebei, China |
| Brand | Muyi |
| Pack | Box+cardboard carton+pallet |
| The product can be customized | |
| 1.The head of the bolt is spherical with holes, the spherical surface is smooth, the installation of the Eye Bolts is relatively simple, and it is often used for the occasion of opening and disassembling or the tooling assembly.The thread precision of the Eye Bolts is high, which can improve the quality of the whole workpiece as an accessory. 2.Eye Bolts are widely used in: low temperature and high pressure valves, pressure pipelines, fluid engineering, oil drilling and production equipment, oilfield equipment and other fields, often in the disconnecting occasions or tools such as the valve industry, folding bicycles, strollers are used, because the use of Eye Bolts is convenient and fast, and the use of matching nuts plays the role of connection fastening, a wide range of applications. |
|

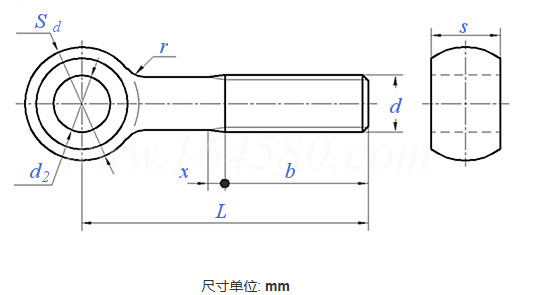

| Thread Spec D |
M5 | M6 | M8 | M10 | M12 | M16 | M20 | M24 | (M27) | |||
| d | ×24 | |||||||||||
| P | thread pitch | 0.8 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2.5 | 3 | 3 | ||
| b | L≤125 | 16 | 18 | 22 | 26 | 30 | 38 | 46 | 54 | 60 | ||
| 125＜L≤200 | - | - | 28 | 32 | 36 | 44 | 52 | 60 | 66 | |||
| L＞200 | - | - | - | - | 49 | 57 | 65 | 73 | 79 | |||
| d2 | nominal | 5 | 6 | 8 | 10 | 12 | 16 | 18 | 22 | 24 | ||
| A and B | min | 5.07 | 6.07 | 8.08 | 10.08 | 12.095 | 16.095 | 18.095 | 22.11 | 24.11 | ||
| max | 5.145 | 6.145 | 8.17 | 10.17 | 12.205 | 16.205 | 18.205 | 22.24 | 24.24 | |||
| C | min | 5.07 | 6.07 | 8.08 | 10.08 | 12.095 | 16.095 | 18.095 | 22.11 | 24.11 | ||
| max | 5.19 | 6.19 | 8.23 | 10.23 | 12.275 | 16.275 | 18.275 | 22.32 | 24.32 | |||
| Sd | max | 12 | 14 | 18 | 20 | 25 | 32 | 40 | 45 | 50 | ||
| A and B | min | 10.9 | 12.9 | 16.9 | 18.7 | 23.7 | 30.4 | 38.4 | 43.4 | 48.4 | ||
| C | min | 11.57 | 13.57 | 17.57 | 19.48 | 24.48 | 31.38 | 39.38 | 44.38 | 49.38 | ||
| r | nominal | 2.5 | 4 | 4 | 4 | 6 | 6 | 6 | 10 | 10 | ||
| max | 4 | 6 | 6 | 6 | 9 | 9 | 9 | 15 | 15 | |||
| min | 2 | 3 | 3 | 3 | 4.5 | 4.5 | 4.5 | 7.5 | 7.5 | |||
| s | A and B | max | 6 | 7 | 9 | 12 | 14 | 17 | 22 | 25 | 27 | |
| min | 5.52 | 6.42 | 8.42 | 11.3 | 13.3 | 16.3 | 21.16 | 24.16 | 26.16 | |||
| C | max | 8 | 9 | 11 | 14 | 17 | 19 | 24 | 28 | 30 | ||
| min | 7.42 | 8.42 | 10.3 | 13.3 | 16.3 | 18.16 | 23.16 | 27.16 | 29.16 | |||
| Thread Spec D |
(M27) | M30 | M30 | (M33) | M36 | M36 | (M39) | (M39) | ||||
| d | ×25 | ×27 | ×28 | ×32 | ×33 | ×35 | ×36 | |||||
| P | thread pitch | 3 | 3.5 | 3.5 | 3.5 | 4 | 4 | 4 | 4 | |||
| b | L≤125 | 60 | 66 | 66 | - | - | - | - | - | |||
| 125＜L≤200 | 66 | 72 | 72 | 78 | 84 | 84 | 90 | 90 | ||||
| L＞200 | 79 | 85 | 85 | 91 | 97 | 97 | 103 | 103 | ||||
| d2 | nominal | 25 | 27 | 28 | 30 | 32 | 33 | 35 | 36 | |||
| A and B | min | 25.11 | 27.11 | 28.11 | 30.11 | 32.12 | 33.12 | 35.12 | 36.12 | |||
| max | 25.24 | 27.24 | 28.24 | 30.24 | 32.28 | 32.28 | 35.28 | 36.28 | ||||
| C | min | 25.11 | 27.11 | 28.11 | 30.11 | 32.12 | 33.12 | 35.12 | 36.12 | |||
| max | 25.32 | 27.32 | 28.32 | 30.32 | 32.37 | 33.37 | 35.37 | 36.337 | ||||
| Sd | max | 50 | 55 | 55 | 60 | 65 | 65 | 70 | 70 | |||
| A and B | min | 48.4 | 53.1 | 53.1 | 58.1 | 63.1 | 63.1 | 68.1 | 68.1 | |||
| C | min | 49.38 | 54.26 | 54.26 | 59.26 | 64.26 | 64.26 | 69.26 | 69.26 | |||
| r | nominal | 10 | 10 | 10 | 16 | 16 | 16 | 16 | 16 | |||
| max | 15 | 15 | 15 | 22.4 | 22.4 | 22.4 | 22.4 | 22.4 | ||||
| min | 7.5 | 7.5 | 7.5 | 12.8 | 12.8 | 12.8 | 12.8 | 12.8 | ||||
| s | A and B | max | 27 | 30 | 30 | 34 | 38 | 38 | 41 | 41 | ||
| min | 26.16 | 29 | 29 | 33 | 37 | 37 | 40 | 40 | ||||
| C | max | 30 | 34 | 34 | 38 | 41 | 41 | 46 | 46 | |||
| min | 29.16 | 33 | 33 | 37 | 40 | 40 | 45 | 45 | ||||
