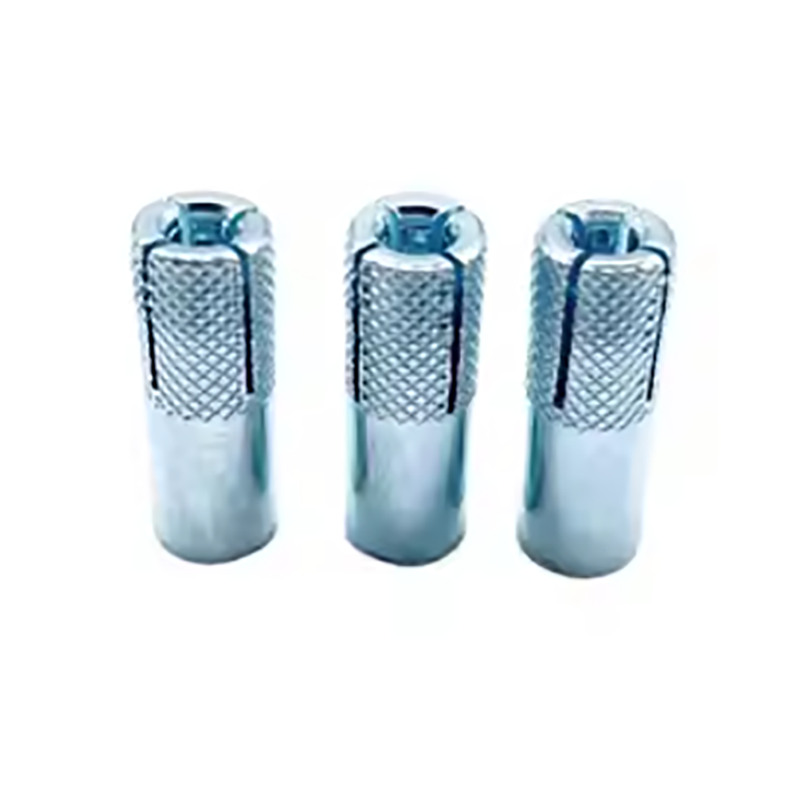

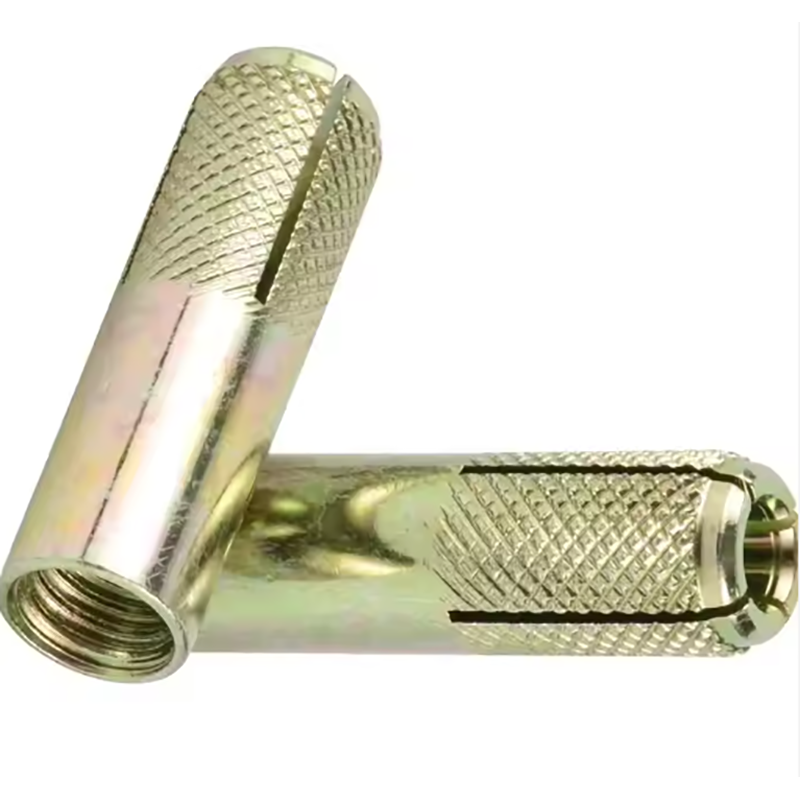

| Product Name | Drop in anchor |
| Material | Carbon steel, Stainless steel |
| Surface Finish | Yellow zinc, Blue and white zinc, Bleached |
| Colour | Yellow, Blue White, White |
| Standard Number | DIN,ASME,ASNI,ISO,GB |
| Grade | 4.8/6.8/8.8/10.9/12.9 ; A2-70 |
| Diameter | M6 M8 M10 M12 M16 M20 |
| Thread form | Coarse thread, Medium thread, Fine thread |
| Place of origin | Hebei, China |
| Brand | Muyi |
| Pack | Box+cardboard carton+pallet |
| The product can be customized | |
| 1. The function of the forced expansion fastening bolt is to expand the expansion sheet by knocking, thereby fixing the object on the wall. 2. Drop in anchors are suitable for situations where the connection needs to be maintained under vibration, impact or shear force. For example, in engineering fields such as mechanical equipment, bridges, and highway guardrails, drop in anchors are often used as common structural connectors to ensure that the connection parts can remain stable and firm in various complex environments. 3. Wide application: Drop in anchors are widely used in construction, machinery, automobiles, aviation and other fields due to their strong fastening force and good shear resistance, becoming an indispensable fastener product. |
|

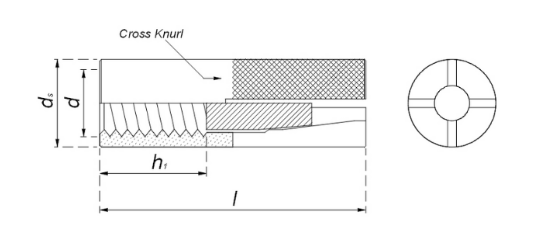

| Thread Spec d |
M6 | M8 | M10 | M12 | M16 | M20 | ||
| ds | 8 | 10 | 12 | 16 | 20 | 25 | ||
| h1 | 11 | 13.5 | 17.5 | 22 | 30.5 | 31.5 | ||
| l | 25 | 30 | 40 | 50 | 65 | 80 | ||
DIN928 welded square nuts are widely used in multiple fields, including mechanical manufacturing, automotive industry, aerospace, photovoltaics, transportation, construction, and more. The characteristics of these application areas require high-strength and reliable fasteners, and DIN928 welded square nuts precisely meet these requirements. It can withstand high-strength tensile and shear forces, suitable for situations that require strong forces and vibrations. The design of the four corners provides better welding performance, making the connection more secure and reliable. It can be installed through welding or threaded connection, making installation simple and convenient. Suitable for various industrial fields, ensuring stability and reliability of connections.
DIN127 spring washers are mainly used in bolt connections, especially in bolt connections with a strength grade of 5.8 or below. Its main purpose is to prevent bolt loosening by increasing the axial rebound force to compensate for the loss of preload force caused by compression, thereby preventing the loosening of threaded connections.
DIN125 Flat Washer are mainly used to connect two objects, fill gaps, and play a role in sealing, supporting, and fastening. It is widely used in various mechanical equipment, pipeline systems and other connections, with good sealing performance and mechanical strength.
1. The characteristics of the Cup Head Square Neck Bolts are that the head is made into a semi-round ball, a square neck is made under the head, and a square hole is also made correspondingly on the connected parts connected with such bolts. When the bolt is inserted into the connecting piece and then screwed on the nut, the bolt will not rotate due to the square neck. Its head is relatively smooth, and it is not easy to hook other objects. 2. Cup Head Square Neck Bolts is mainly used for connecting parts due to structural limitations are not suitable for hex bolts or bolts are required to have a smooth exposed part of the occasion. Such as the feet of agricultural machinery, wall panels and other places. The bolt is divided into two kinds according to the head size: ordinary and large half round head. The head of the large Cup Head Square Neck Bolts is straight and the diameter is large, but its thickness is slightly thin. This kind of bolt is mostly used in trucks, barges, iron and wood looms, and other wooden structural parts, because the head support surface is large, it is not easy to fall into the wooden connector.
Hexagonal expansion stainless steel is widely used in steel structures, mechanical equipment, bridge engineering, construction engineering, power equipment, subway engineering and other fields. It is suitable for steel, brick walls, concrete and other materials with hollow or solid substrates, and has strong adaptability and reliability.
1.Hex washer head tapping screws with inserts are a common fastener, which is characterized by a hex head and an insert (washer). This design allows the screw to better distribute pressure during tightening, preventing the screw from loosening, while also protecting the surface of the connected parts. 2. Wide application: Hex washer head tapping screws with inserts have been widely used in many fields due to their unique design and excellent performance. Whether in home decoration, machinery manufacturing, electronic products or construction projects, they can play an important role.
In the construction industry, square head bolts are used to fix steel mesh to ensure the stability of building structures. In mechanical manufacturing, square head bolts are used to connect various components of mechanical equipment, such as bearing covers, gearboxes, etc. In the automotive industry, square head bolts are used to secure components such as the vehicle body and engine, ensuring the safety performance of the vehicle. In furniture production, square head bolts are used to connect various parts of wooden furniture, improving the stability of the furniture. In electrical engineering, square head bolts are used to secure cable supports, switchgear, and other equipment to ensure the safe operation of circuits.
The outer tongue stop washer can distribute the load on the screw or bolt to a larger surface, thereby reducing the possibility of loosening and improving the reliability of the connection. During the assembly process, the outer tongue stop washer can serve as a buffer and protection to prevent scratches and damage to threads, surfaces, and parts.
DIN582 lifting ring nuts are mainly used to connect chains and steel wire ropes, and can also be used for lightweight lifting. The hanging ring nut refers to a component that is screwed together with a bolt or screw to provide a fastening effect, and is a necessary component for all production and manufacturing machinery.
As a common fastener, square head bolt is a special type of bolt with a square head and unique shape and characteristics. It is widely used in mechanical manufacturing, construction industry, automobile manufacturing and other fields. 1. Mechanical manufacturing: Square head bolts are widely used in the field of mechanical manufacturing, such as mechanical equipment, machine tools, transmission devices, etc. 2. Construction industry: In the construction field, square head bolts are commonly used to fix various components such as beams, slabs, columns, etc. 3. Automotive manufacturing: In the process of automotive manufacturing, square head bolts are used to secure automotive components such as engines, transmissions, etc.
Surface treatment: In order to improve the corrosion resistance, the joint bolts can adopt a variety of surface treatment methods, such as hot-dip galvanizing, infiltration plating, white plating, color plating, etc. In addition, high-strength bolts are usually treated with boiled black blue to enhance their appearance and corrosion resistance.
Hexagonal embedded locking nut is a type of fastener that can lock threads. It is widely used in fields such as mechanical manufacturing, automotive manufacturing, and electronic equipment. In high-speed mechanical equipment, locking nuts can effectively prevent thread loosening and ensure the safe and stable operation of the equipment.
GB62.2 Butterfly Nut (Square Wing Butterfly Nut) is mainly used in occasions that require frequent disassembly and installation, especially suitable for furniture, mechanical equipment, and automotive fields. Its design features include flat square wings on both sides, allowing the nut to be easily rotated by fingers without the need for tools, thereby improving the convenience and efficiency of operation.
1.Sleeve Anchor with Hook is a special threaded connecting piece used to fix pipe support, lift, bracket or equipment on the wall, floor and column. 2. Stainless steel expansion hook is widely used, mainly used in the integrated installation of multimedia classrooms, installation of manhole protective mesh, installation of power Wells, water Wells and other manhole cover protective mesh, curtain hanging and other fields. Lanterns can also be hung on the top, bird cages can also be used horizontally, and more manhole protection nets can be installed.
Hex coupling nut is a slender hexagonal nut used to connect two threaded rods or bolts. It does not require tapping the internal thread, does not require welding the nut, has a strong riveting efficiency and is easy to use.
DIN929 welded hex nuts are mainly used in scenarios that require high-strength connections and special shaped connections. This type of nut is connected to the connector by welding and is suitable for situations where conventional bolt connections cannot be made, such as when the connector is too thin or irregularly shaped. The welding process is equivalent to turning two separate parts into a whole, melting the metal at high temperature, mixing it together, and then cooling it. An alloy is added in the middle, relying on molecular force, and its strength is generally greater than that of the parent material.
