Hexagonal embedded locking nut is a type of fastener that can lock threads. It is widely used in fields such as mechanical manufacturing, automotive manufacturing, and electronic equipment. In high-speed mechanical equipment, locking nuts can effectively prevent thread loosening and ensure the safe and stable operation of the equipment.
| Product Name | DIN982 Hex Lock Nut with white |
| Material | Carbon steel |
| Surface Finish | Dacromet ,White zinc |
| Colour | White |
| Standard Number | DIN982 |
| Grade | 4 8 |
| Diameter | M5 M6 M8 M10 M12 M14 M16 M24 |
| Thread form | Coarse thread |
| Place of origin | Hebei, China |
| Brand | Muyi |
| Pack | Box+cardboard carton+pallet |
| The product can be customized | |
| Hexagonal embedded locking nut is a type of fastener that can lock threads. It is widely used in fields such as mechanical manufacturing, automotive manufacturing, and electronic equipment. In high-speed mechanical equipment, locking nuts can effectively prevent thread loosening and ensure the safe and stable operation of the equipment. | |

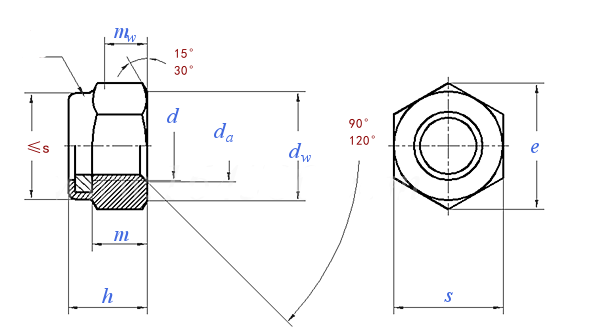

| Thread Spec D |
M3 | M4 | M5 | M6 | M8 | M10 | M12 | (M14) | M16 | M20 | M24 | M30 | M36 | |
| P | flight lead | 0.5 | 0.7 | 0.8 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2 | 2.5 | 3 | 3.5 | 4 |
| da | min | 3.45 | 4.6 | 5.75 | 6.75 | 8.75 | 10.8 | 13 | 15.1 | 17.3 | 21.6 | 25.9 | 32.4 | 38.9 |
| max | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 14 | 16 | 20 | 24 | 30 | 36 | |
| dw | min | 4.57 | 5.88 | 6.88 | 8.88 | 11.63 | 14.63 | 16.63 | 19.64 | 22.49 | 27.7 | 33.25 | 42.75 | 51.11 |
| e | min | 6.01 | 7.66 | 8.79 | 11.05 | 14.38 | 17.77 | 20.03 | 23.36 | 26.75 | 32.95 | 39.55 | 50.85 | 60.79 |
| h | max | 4.5 | 6 | 6.8 | 8 | 9.5 | 11.9 | 14.9 | 17 | 19.1 | 22.8 | 27.1 | 32.6 | 38.9 |
| min | 4.02 | 5.52 | 6.22 | 7.42 | 8.92 | 11.2 | 14.2 | 15.9 | 17.8 | 20.7 | 25 | 30.1 | 36.4 | |
| m | min | 2.15 | 2.9 | 4.4 | 4.9 | 6.44 | 8.04 | 10.37 | 12.1 | 14.1 | 16.9 | 20.2 | 24.3 | 29.4 |
| mw | min | 1.72 | 2.32 | 3.52 | 3.92 | 5.15 | 6.43 | 8.3 | 9.68 | 11.28 | 13.52 | 16.16 | 19.44 | 23.52 |
| s | max | 5.5 | 7 | 8 | 10 | 13 | 16 | 18 | 21 | 24 | 30 | 36 | 46 | 55 |
| min | 5.32 | 6.78 | 7.78 | 9.78 | 12.73 | 15.73 | 17.73 | 20.67 | 23.67 | 29.16 | 35 | 45 | 53.8 | |
1. Fixed function: Chemical anchor bolts are mainly used for installing and fixing various components, such as post embedded parts in curtain wall and marble dry hanging construction, equipment installation, bridge guardrails, highway and building reinforcement and renovation, etc. It uses a special chemical adhesive to bond and fix the screw in the drilled hole of the concrete substrate, achieving anchoring of the fixed parts 2. Reinforcement function: In building reinforcement engineering, chemical anchor bolts are commonly used to improve the bearing capacity and stability of components. It can be used in conjunction with a concrete base to firmly fix the screw in the borehole through chemical adhesives, thereby enhancing the overall performance of the structure 3. Easy installation: The installation process of chemical anchor bolts is relatively fast, with rapid solidification and saving construction time. It does not require pre embedding and can be installed at any time during the construction process, suitable for various complex construction environments
DIN937 hexagonal slotted thin nuts are mainly used for machines and equipment that require frequent disassembly, especially in situations where space is limited. This type of nut has six parallel short grooves at its bottom, which can be rotated using a wrench or pliers, making it easy to disassemble and install
1.The good expansion curve design greatly enhances the anchoring force of the anchor bolt, and the edge of the tube head can effectively prevent the expansion screw from entering the deep inside the hole due to drilling too deep 2. Widely used :Concrete, natural dense stone, solid brick, solid gray sand brick light concrete, hollow concrete brick, etc.;
1.DIN6923 hexagon flange nut and general hexagon nut compared with the size and thread specifications are basically the same, but more than the hexagon nut with one ring flange, equivalent to the washer and nut are integrated, and there is a ring of non-slip tooth grain on the flange surface, also known as tooth flange nut. 2. Widely used : hexagon flange nuts mainly play a role in increasing the contact surface with the workpiece, mostly used in pipelines, fasteners and some stamping parts and casting parts. The flange face of DIN6923 flange nut itself has the function of anti-slip and stop, and it does not need to add flat pad and spring pad when assembling, which is more convenient to use
1.A washer is a seal that fills the gap between two mating surfaces, allowing the two workpieces to be connected together without leakage even when compressed. 2.A washer can fill some irregularities on the surface, allowing for some imperfections in the mating surfaces of the workpieces. washer are generally made by cutting and splitting thin sheets. 3.Generally speaking, the ideal washer material is one that allows a certain degree of deformation so that it can deform and fill the corresponding space (including some slight irregularities) during assembly. Some washer require the addition of sealants directly to the surface in order for the gasket to work properly.
Hexagonal embedded locking nut is a type of fastener that can lock threads. It is widely used in fields such as mechanical manufacturing, automotive manufacturing, and electronic equipment. In high-speed mechanical equipment, locking nuts can effectively prevent thread loosening and ensure the safe and stable operation of the equipment.
Product Name Din7504k Hex flange head self drilling roofing screw Material Carbon steel, Stain...
1.DIN912 hex socket screw, also known as hex socket cylindrical head screw, is a common fastener, widely used in various mechanical equipment and electronic products. The DIN912 hex screw features a cylindrical head with a hexagonal hole at the top that requires the use of an hex wrench to tighten or loosen. This design allows the screw to provide greater torque during installation, while also preventing the screw from loosening during use. 2. Widely used : common in mechanical equipment, automobile manufacturing and other fields, used to connect parts and provide a stable fixed effect
DIN929 welded hex nuts are mainly used in scenarios that require high-strength connections and special shaped connections. This type of nut is connected to the connector by welding and is suitable for situations where conventional bolt connections cannot be made, such as when the connector is too thin or irregularly shaped. The welding process is equivalent to turning two separate parts into a whole, melting the metal at high temperature, mixing it together, and then cooling it. An alloy is added in the middle, relying on molecular force, and its strength is generally greater than that of the parent material.
It is used to support structural steel columns, lamp posts, heavy equipment, highway signs, and many other applications. Its hook provides resistance, preventing it from pulling out of the concrete foundation when force is applied. Stainless steel bent anchor bolts are used to secure embedded plates, signage structures, columns, and many other structural objects to concrete.
Cross recessed pan head wood screws are widely used in the following fields because of their unique structure: ● Furniture manufacturing: used to connect various parts of furniture to ensure its stability and strength. ● Automobile manufacturing: used for the tight connection inside the automobile to improve the safety and reliability of the automobile. ● Woodworking: used for the assembly and fixing of wood products to improve the durability of wood products. ● Mechanical manufacturing: used for the assembly and fixing of various mechanical equipment to ensure the normal operation of the equipment.
1.the small yellow croaker expansion screw is relatively strong, the small yellow croaker expansion screw tension is strong, can better play a fixed and stable role. When installing, be sure to tighten, screw in place, and then beat with a hammer, not only beautiful knot reliable with firm and stable fixed stable effect is particularly good. 2. especially suitable for hanging, arch structure, outdoor walls, stairs, radiators and other different occasions of columns, Angle steel, beams and other parts fixed and supported. The crosshead expansion screw is a kind of expansion screw, which is characterized by a variety of dimensions, convenient installation and firm fixing. Small yellow croaker expansion screw, the appearance is like a small fish, its main feature is shaped like a “hollow bolt” and has good expansion.
1. A threaded rod, also known as a stud, is a relatively long rod that is threaded on both ends; the thread may extend along the complete length of the rod.They are designed to be used in tension. 2. First, threaded rods can be used as transmission elements in mechanical devices. Second, threaded rods can also be used to fasten structures. In addition, threaded rods can also be used in adjustment devices. In addition, threaded rods also play an important role in the field of scientific experiments and measurements. 3. Wide application: Threaded rods are usually used in conjunction with nuts. By rotating the threaded rods, the purpose of clamping, fixing or adjusting objects can be achieved.It is widely used in engineering, construction and scientific experiments. Its main function is to support or connect mechanical components. Through threaded rods, mechanical components can be stably supported, reliably connected, powered, and precisely adjusted.
1. T-head bolts are characterized by high load carrying capacity and tensile strength, and can be used in a variety of different environments. Because of their unique shape, T-bolts can be easily used with nuts and washers, which allows for better load distribution and less stress concentration. In addition, T-bolts also have good seismic performance and can be used in vibration and shock environments. 2. T-head bolts have a wide range of uses and can be used to fix various equipment and components, such as machine frames, panels, supports, guides and so on. It can also be used in Bridges, construction, automobiles, ships and other fields. In these fields, T-bolts are widely used in a variety of structural connection and fastening occasions.
Screws are used to connect two objects. Generally, the head of the screw will protrude above the surface of the connected object, making the surface uneven. Countersunk screws can sink below the surface to make the surface flat. Hard objects need to drill countersunk holes at the corresponding position of the countersunk head. In short, the countersunk head means that the head of the screw can keep the surface flat after installation. And wood screws are used to screw into wood for connection or fastening.
1. The products are generally carbon steel or stainless steel, and the surface of carbon steel is cold and hot galvanized and dacromet surface treatment. It is suitable for light steel keel ceiling, ventilation pipe, cable bridge, tunnel and other anchoring parts that need to be suspended. Anchors are divided into medium and light duty series and can also be specially designed and processed according to customer requirements. 2. Widely used : mainly used in heavy anchoring occasions, such as mechanical equipment anchor, elevator support anchor, curtain wall ceiling and other heavy anchoring occasions. Customers can choose bolts with various head functions according to actual needs, such as outer hexagon bolts, C-hook bolts, O-shaped eye bolts, etc
