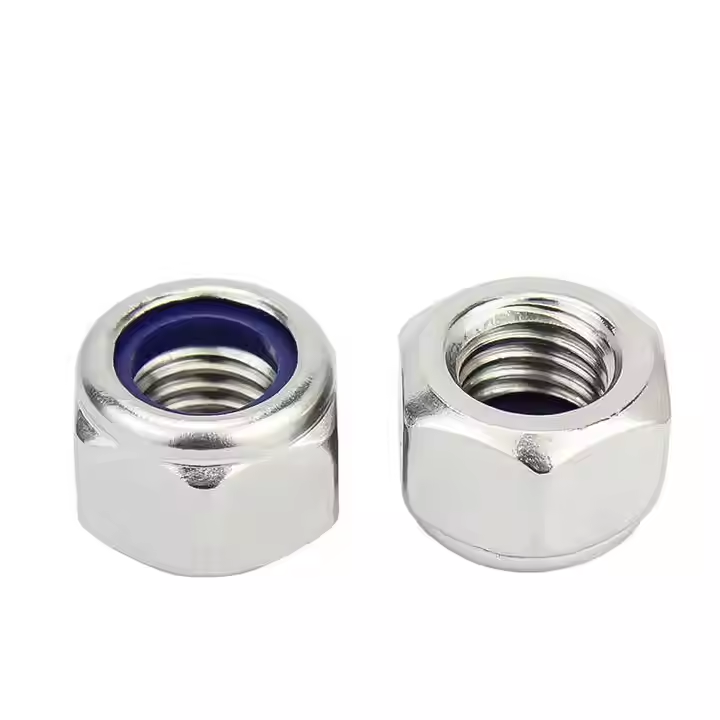

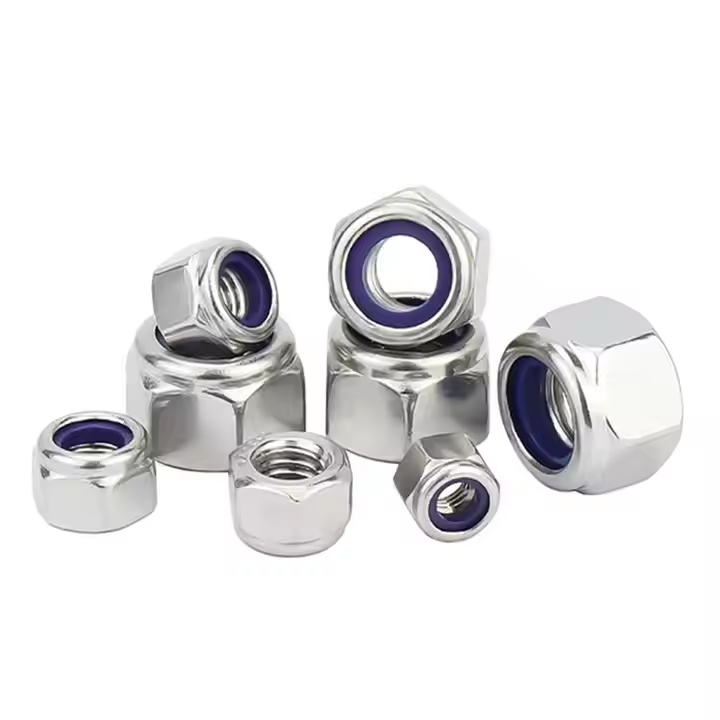

Hexagonal embedded locking nut is a type of fastener that can lock threads. It is widely used in fields such as mechanical manufacturing, automotive manufacturing, and electronic equipment. In high-speed mechanical equipment, locking nuts can effectively prevent thread loosening and ensure the safe and stable operation of the equipment.
| Product Name | DIN982 Hex Lock Nut with blue |
| Material | Carbon steel |
| Surface Finish | Yellow zinc ,Blue white zinc,White zinc,Decolourize |
| Colour | Yellow, Blue White, White |
| Standard Number | DIN982 |
| Grade | 4 8 10 A2-70 |
| Diameter | M4 M5 M6 M8 M10 M12 M14 M16 M18 M20 M22 M24 |
| Thread form | Coarse thread |
| Place of origin | Hebei, China |
| Brand | Muyi |
| Pack | Box+cardboard carton+pallet |
| The product can be customized | |
| Hexagonal embedded locking nut is a type of fastener that can lock threads. It is widely used in fields such as mechanical manufacturing, automotive manufacturing, and electronic equipment. In high-speed mechanical equipment, locking nuts can effectively prevent thread loosening and ensure the safe and stable operation of the equipment. | |

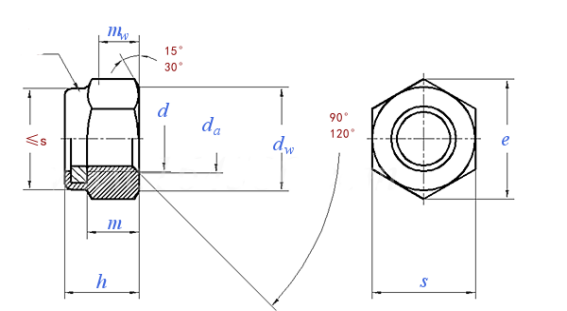

| Thread Spec D |
M3 | M4 | M5 | M6 | M8 | M10 | M12 | (M14) | M16 | M20 | M24 | M30 | M36 | |
| P | flight lead | 0.5 | 0.7 | 0.8 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2 | 2.5 | 3 | 3.5 | 4 |
| da | min | 3.45 | 4.6 | 5.75 | 6.75 | 8.75 | 10.8 | 13 | 15.1 | 17.3 | 21.6 | 25.9 | 32.4 | 38.9 |
| max | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 14 | 16 | 20 | 24 | 30 | 36 | |
| dw | min | 4.57 | 5.88 | 6.88 | 8.88 | 11.63 | 14.63 | 16.63 | 19.64 | 22.49 | 27.7 | 33.25 | 42.75 | 51.11 |
| e | min | 6.01 | 7.66 | 8.79 | 11.05 | 14.38 | 17.77 | 20.03 | 23.36 | 26.75 | 32.95 | 39.55 | 50.85 | 60.79 |
| h | max | 4.5 | 6 | 6.8 | 8 | 9.5 | 11.9 | 14.9 | 17 | 19.1 | 22.8 | 27.1 | 32.6 | 38.9 |
| min | 4.02 | 5.52 | 6.22 | 7.42 | 8.92 | 11.2 | 14.2 | 15.9 | 17.8 | 20.7 | 25 | 30.1 | 36.4 | |
| m | min | 2.15 | 2.9 | 4.4 | 4.9 | 6.44 | 8.04 | 10.37 | 12.1 | 14.1 | 16.9 | 20.2 | 24.3 | 29.4 |
| mw | min | 1.72 | 2.32 | 3.52 | 3.92 | 5.15 | 6.43 | 8.3 | 9.68 | 11.28 | 13.52 | 16.16 | 19.44 | 23.52 |
| s | max | 5.5 | 7 | 8 | 10 | 13 | 16 | 18 | 21 | 24 | 30 | 36 | 46 | 55 |
| min | 5.32 | 6.78 | 7.78 | 9.78 | 12.73 | 15.73 | 17.73 | 20.67 | 23.67 | 29.16 | 35 | 45 | 53.8 | |

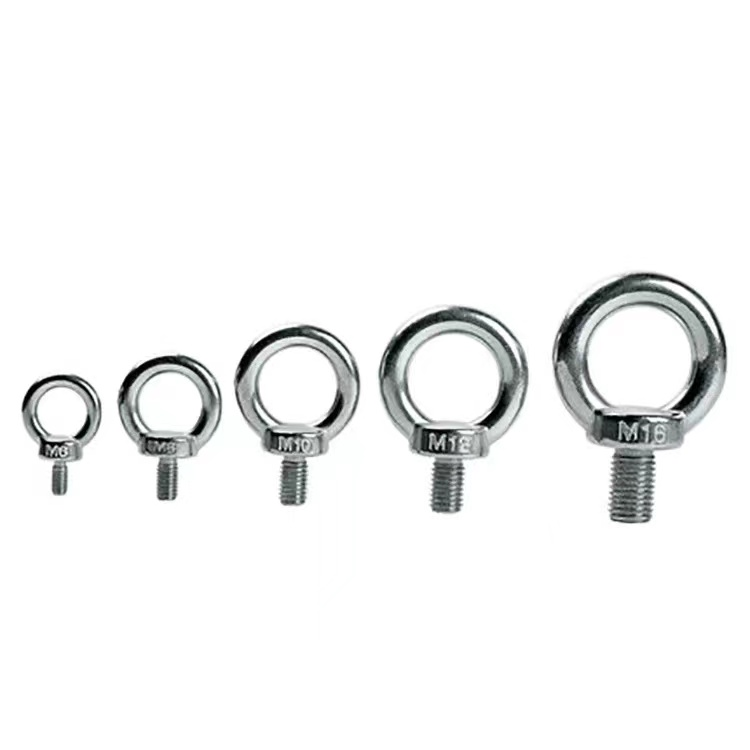

The application scenarios of sheep eye hook sleeves mainly include home decoration, kitchen construction, door and window binding, and toy and gift binding. Sheep eye hook sleeve is commonly used in home decoration and kitchen construction, which can meet various hook needs and provide a firm fixing point. In addition, it can also be used for door and window binding or toy gift binding, providing reliable fixing effect.
1. Fixed function: Chemical anchor bolts are mainly used for installing and fixing various components, such as post embedded parts in curtain wall and marble dry hanging construction, equipment installation, bridge guardrails, highway and building reinforcement and renovation, etc. It uses a special chemical adhesive to bond and fix the screw in the drilled hole of the concrete substrate, achieving anchoring of the fixed parts 2. Reinforcement function: In building reinforcement engineering, chemical anchor bolts are commonly used to improve the bearing capacity and stability of components. It can be used in conjunction with a concrete base to firmly fix the screw in the borehole through chemical adhesives, thereby enhancing the overall performance of the structure 3. Easy installation: The installation process of chemical anchor bolts is relatively fast, with rapid solidification and saving construction time. It does not require pre embedding and can be installed at any time during the construction process, suitable for various complex construction environments

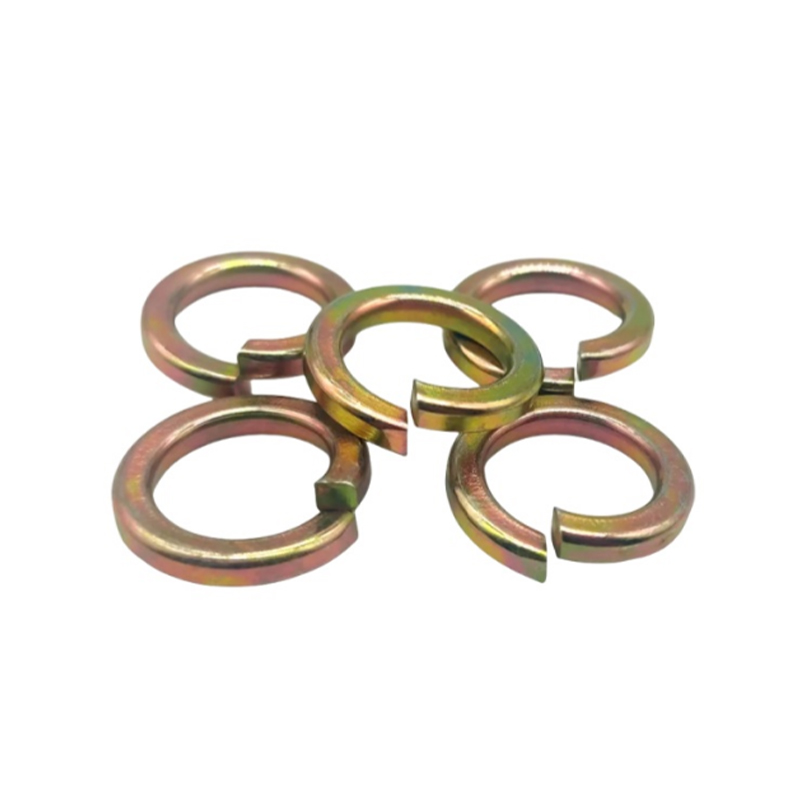

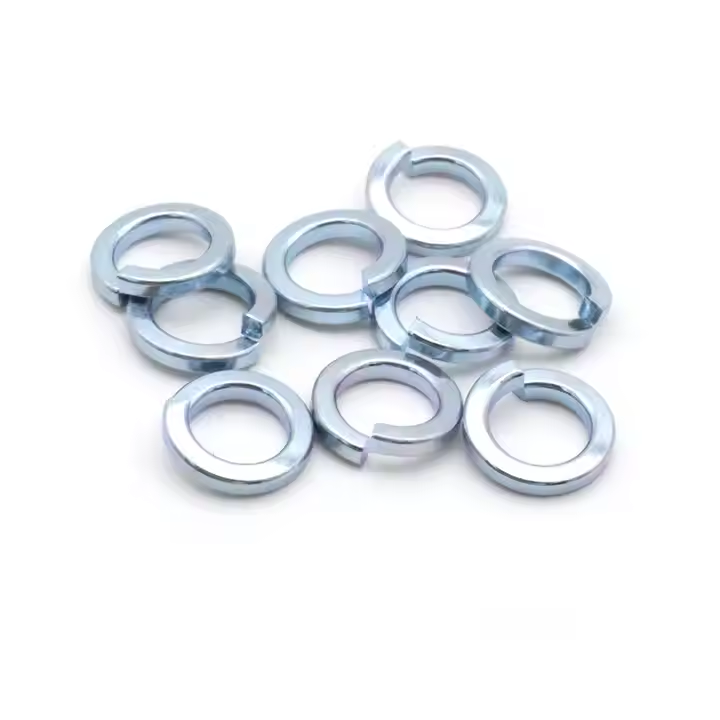

DIN127 spring washers are mainly used in bolt connections, especially in bolt connections with a strength grade of 5.8 or below. Its main purpose is to prevent bolt loosening by increasing the axial rebound force to compensate for the loss of preload force caused by compression, thereby preventing the loosening of threaded connections.
DIN935-1 hexagonal slotted nuts are mainly used to fix the front and rear axles of vehicles. By tightening the screws that pass through the front and rear axles, the frame and tires are fixed together. In order to prevent the nut from loosening, it is usually fixed by using an open-ended pin that passes through the groove of the slotted nut. The open-ended pin needs to pass through the middle of the wheel axle screw, and usually both ends of the wheel axle screw need to be drilled. The diameter of the hole and the width and depth of the slotted nut groove determine what specification of open-ended pin is selected.
Drop in anchors are mainly used for situations where the embedded depth is shallow, by tightening the nut to expand the expansion tube and achieve fastening. This type of screw is suitable for concrete substrates, easy to install, and has high bearing capacity.

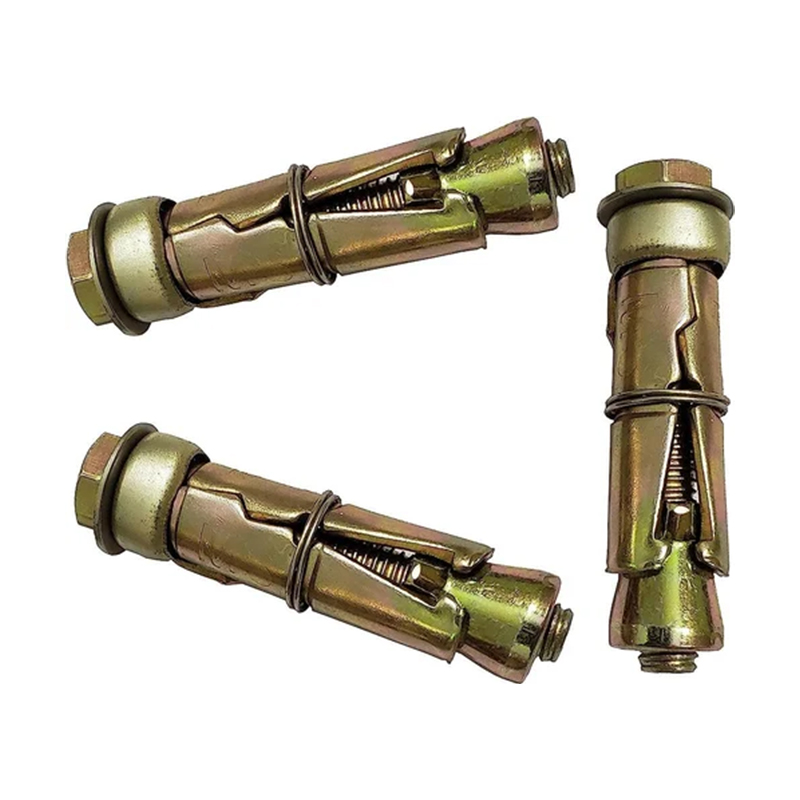

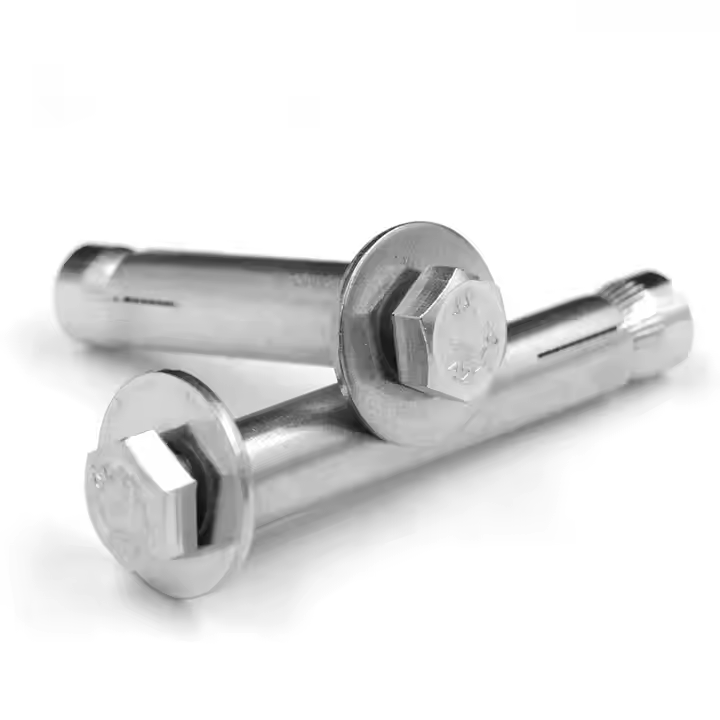

1. Characteristic: The wall thickness of the expansion tube is thicker than that of ordinary expansion bolts of the same specifications;The expansion tube is longer than that of ordinary expansion bolts of the same specifications;Several more knurled grooves are added to the expansion tube to increase the tensile strength;The size of the screw head is larger than that of the ordinary expansion bolt head;The matching washer is a large washer. 2. Requirements: The drill bit required for drilling should be 6 sizes larger than the product size. 3. Application:Elevator expansion anchors are a type of fastener specially used for elevator installation. They are usually made of high-quality steel and have strong seismic resistance and gripping power.
DIN937 hexagonal slotted thin nuts are mainly used for machines and equipment that require frequent disassembly, especially in situations where space is limited. This type of nut has six parallel short grooves at its bottom, which can be rotated using a wrench or pliers, making it easy to disassemble and install

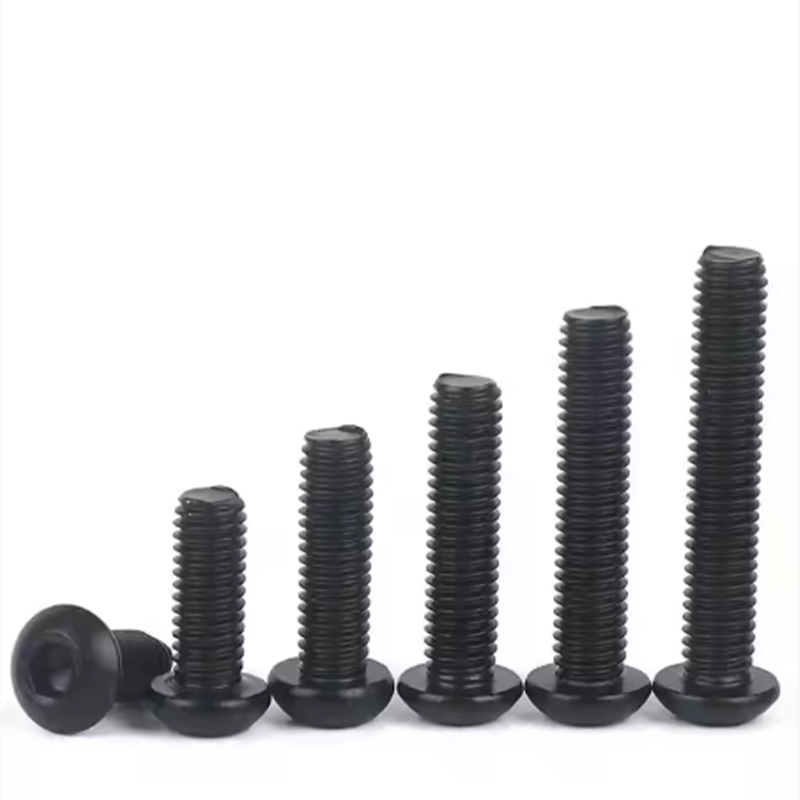

1.hexagon socket bolts ISO 7380 are widely used both indoors and outdoors. Outdoor applications are mostly for building installations, bridges and roads, and power facilities; indoor applications are mostly for mechanical equipment, medical equipment, and electronic equipment. 2.When hexagon socket bolts ISO 7380 are used in electronic equipment, medical equipment, and other places, stainless steel hexagon socket bolts ISO 7380 are generally selected because the surface color of stainless steel is more beautiful and the corrosion resistance is better, which can keep the machine beautiful for a long time. If it is a mechanical equipment with large vibration, it is recommended to choose high-strength hexagonal bolts.
