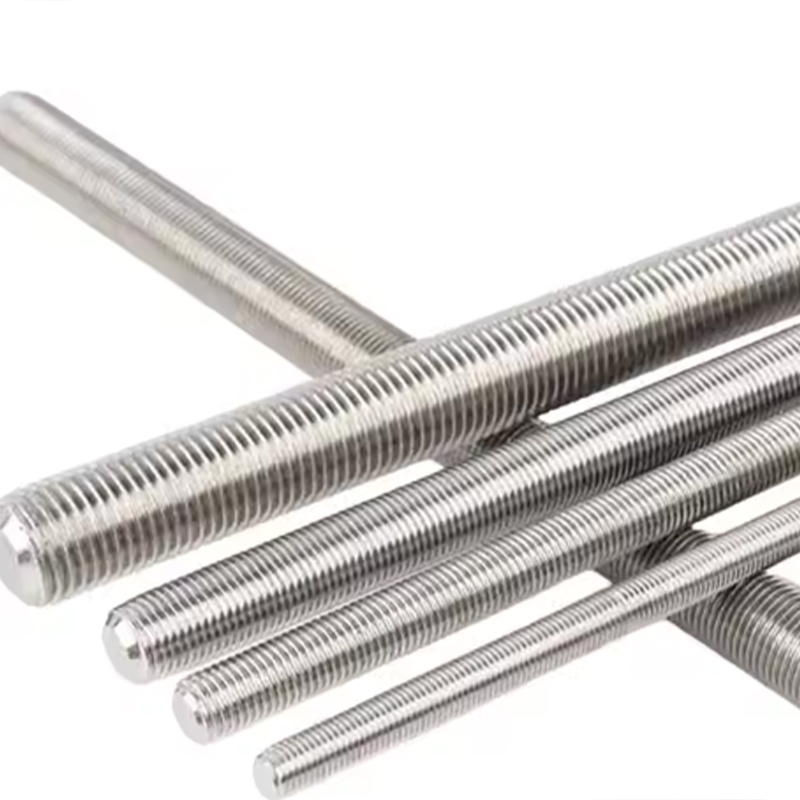

1. A threaded rod, also known as a stud, is a relatively long rod that is threaded on both ends; the thread may extend along the complete length of the rod.They are designed to be used in tension.
2. First, threaded rods can be used as transmission elements in mechanical devices. Second, threaded rods can also be used to fasten structures. In addition, threaded rods can also be used in adjustment devices. In addition, threaded rods also play an important role in the field of scientific experiments and measurements.
3. Wide application: Threaded rods are usually used in conjunction with nuts. By rotating the threaded rods, the purpose of clamping, fixing or adjusting objects can be achieved.It is widely used in engineering, construction and scientific experiments. Its main function is to support or connect mechanical components. Through threaded rods, mechanical components can be stably supported, reliably connected, powered, and precisely adjusted.
| Product Name | DIN975 Threaded Rods |
| Material | Carbon steel, Stainless steel |

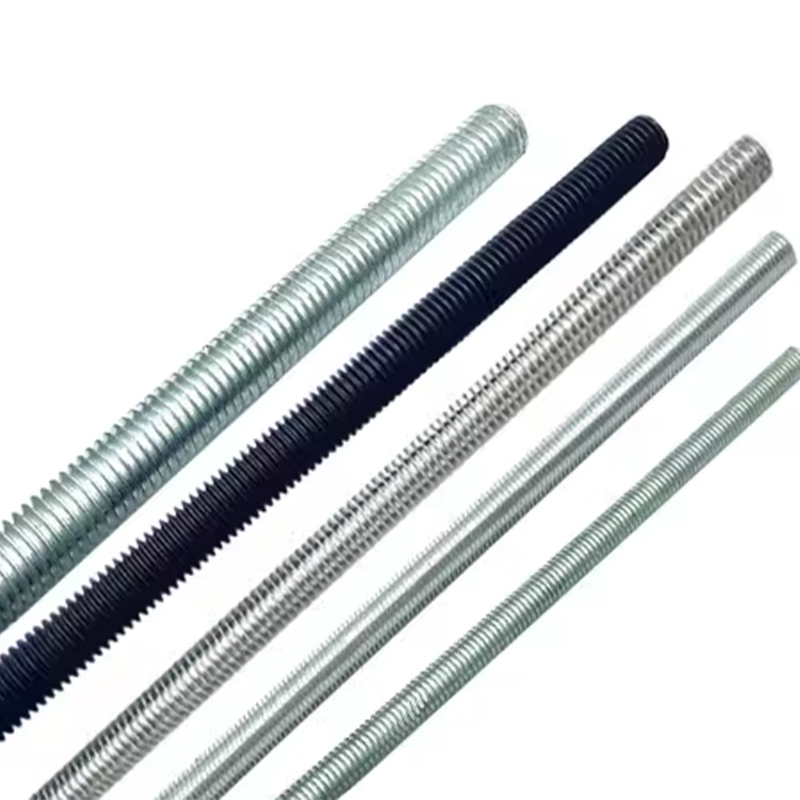

| Surface Finish | Yellow zinc, Blackened, Blue and white zinc, Bleached |
| Colour | Yellow, Black, Blue White, White |
| Standard Number | DIN975 |
| Grade | 4 8 10 A2-70 |
| Diameter | M2 M4 M5 M6 M7 M8 M10 M12 M14 M16 M18 M20...M52 |
| Thread form | Coarse thread, Medium thread, Fine thread |
| Place of origin | Hebei, China |
| Brand | Muyi |
| Pack | Box+cardboard carton+pallet |
| The product can be customized | |
| 1. A threaded rod, also known as a stud, is a relatively long rod that is threaded on both ends; the thread may extend along the complete length of the rod.They are designed to be used in tension. 2. First, threaded rods can be used as transmission elements in mechanical devices. Second, threaded rods can also be used to fasten structures. In addition, threaded rods can also be used in adjustment devices. In addition, threaded rods also play an important role in the field of scientific experiments and measurements. 3. Wide application: Threaded rods are usually used in conjunction with nuts. By rotating the threaded rods, the purpose of clamping, fixing or adjusting objects can be achieved.It is widely used in engineering, construction and scientific experiments. Its main function is to support or connect mechanical components. Through threaded rods, mechanical components can be stably supported, reliably connected, powered, and precisely adjusted. |
|

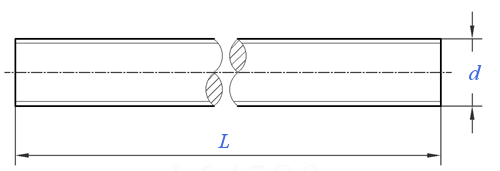

| Thread Spec D |
M2 | M2.5 | M3 | (M3.5) | M4 | M5 | M6 | M8 | M10 | M12 | (M14) | M16 | (M18) | ||
| P | flight lead | Coarse thread | 0.4 | 0.45 | 0.5 | 0.6 | 0.7 | 0.8 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2 | 2.5 |
| Fine thread1 | / | / | / | / | / | / | / | 1 | 1.25 | 1.25 | 1.5 | 1.5 | 1.5 | ||
| Fine thread2 | / | / | / | / | / | / | / | / | 1 | 1.5 | / | / | / | ||
| L | ±10 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | |
| Thread Spec D |
M20 | (M22) | M24 | (M27) | M30 | (M33) | M36 | (M39) | M42 | (M45) | M48 | (M52) | ||
| P | flight lead | Coarse thread | 2.5 | 2.5 | 3 | 3 | 3.5 | 3.5 | 4 | 4 | 4.5 | 4.5 | 5 | 5 |
| Fine thread1 | 1.5 | 1.5 | 2 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 3 | 3 | ||
| Fine thread2 | / | / | / | / | / | / | / | / | / | / | / | / | ||
| L | ±10 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | |
