1. Determine bearing capacity: The diameter of the nut is directly related to its bearing capacity. Generally speaking, the larger the diameter, the stronger the load-bearing capacity of the nut. This means that when subjected to high loads, it is necessary to choose nuts with larger diameters
2. Impact on installation space: The diameter of the nut can also affect its installation space requirements. When designing mechanical structures, it is necessary to consider the diameter of the nut to ensure sufficient space for installation and operation.
3. Standardized production: The DIN934 standard specifies the diameter of nuts, which helps to achieve standardized production of nuts. Standardized production not only improves production efficiency, but also ensures the quality and interchangeability of nuts.
The diameter parameter in DIN934 standard plays a key role in the application of nuts, which not only affects the function and performance of nuts, but also relates to the stability and safety of the entire mechanical structure.

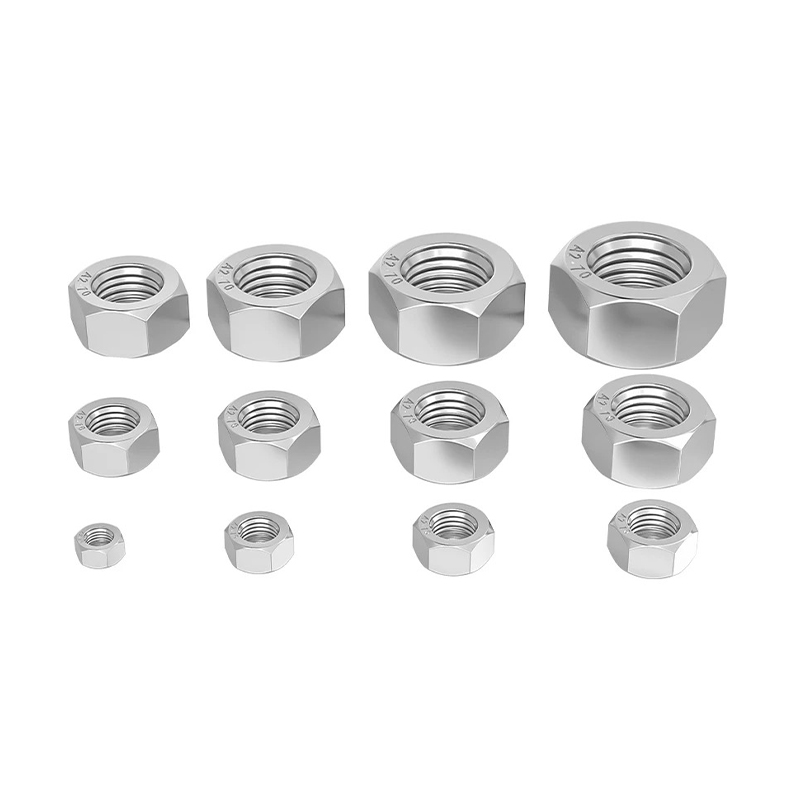

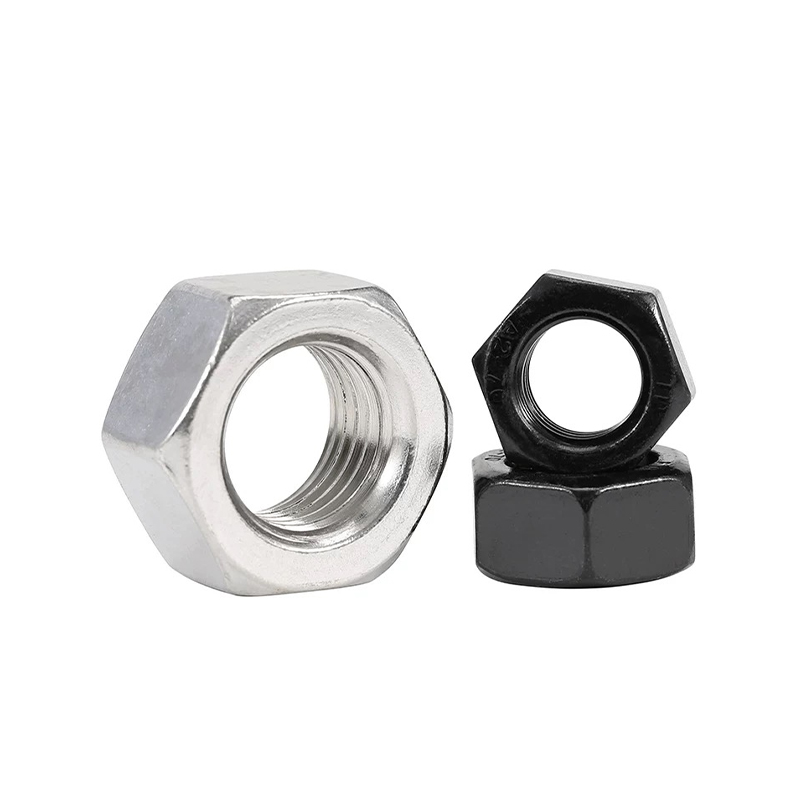

| Product Name | DIN934 hex nut |
| Material | Carbon steel, Stainless steel |
| Surface Finish | Yellow zinc, Blackened, Blue and white zinc, Bleached |
| Colour | Yellow, Black, Blue White, White |
| Standard Number | DIN 934 |
| Grade | 4 8 10 A2-70 |
| Diameter | M1 M1.2 M1.4 M1.7 M2 M2.3 M2.5 M2.6 M3 M3.5 M4 M5 M6 |
| Thread form | |
| Place of origin | Hebei, China |
| Brand | Muyi |
| Pack | Box+cardboard carton+pallet |
| The product can be customized | |
| 1. Determine bearing capacity: The diameter of the nut is directly related to its bearing capacity. Generally speaking, the larger the diameter, the stronger the load-bearing capacity of the nut. This means that when subjected to high loads, it is necessary to choose nuts with larger diameters 2. Impact on installation space: The diameter of the nut can also affect its installation space requirements. When designing mechanical structures, it is necessary to consider the diameter of the nut to ensure sufficient space for installation and operation. 3. Standardized production: The DIN934 standard specifies the diameter of nuts, which helps to achieve standardized production of nuts. Standardized production not only improves production efficiency, but also ensures the quality and interchangeability of nuts. The diameter parameter in DIN934 standard plays a key role in the application of nuts, which not only affects the function and performance of nuts, but also relates to the stability and safety of the entire mechanical structure. |
|

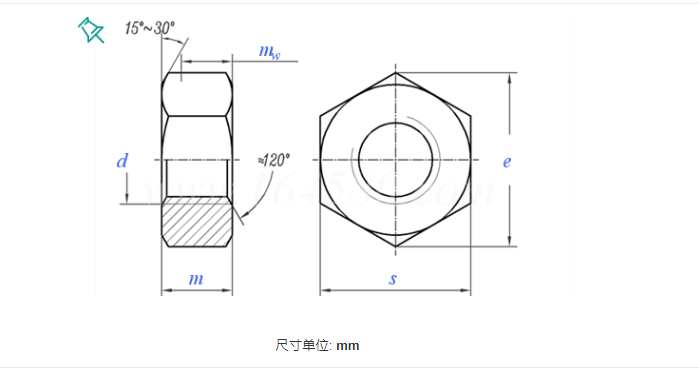

| 螺纹尺寸 | M1 | M1.2 | M1.4 | M1.6 | (M1.7) | M2 | (M2.3) | M2.5 | (M2.6) | M3 | (M3.5) | M4 | M5 | M6 | (M7) | M8 | ||||
| d | ||||||||||||||||||||
| P | pitch | UNC | 0.25 | 0.25 | 0.3 | 0.35 | 0.35 | 0.4 | 0.45 | 0.45 | 0.45 | 0.5 | 0.6 | 0.7 | 0.8 | 1 | 1 | 1.25 | ||
| UNF1 | / | / | / | / | / | / | / | / | / | / | / | / | / | / | / | 1 | ||||
| UNF2 | / | / | / | / | / | / | / | / | / | / | / | / | / | / | / | / | ||||
| m | max | 0.8 | 1 | 1.2 | 1.3 | 1.4 | 1.6 | 1.8 | 2 | 2 | 2.4 | 2.8 | 3.2 | 4 | 5 | 5.5 | 6.5 | |||
| min | 0.55 | 0.75 | 0.95 | 1.05 | 1.15 | 1.35 | 1.55 | 1.75 | 1.75 | 2.15 | 2.55 | 2.9 | 3.7 | 4.7 | 5.2 | 6.14 | ||||
| mw | min | 0.44 | 0.6 | 0.76 | 0.84 | 0.92 | 1.08 | 1.24 | 1.4 | 1.4 | 1.72 | 2.04 | 2.32 | 2.96 | 3.76 | 4.16 | 4.91 | |||
| s | max | 2.5 | 3 | 3 | 3.2 | 3.5 | 4 | 4.5 | 5 | 5 | 5.5 | 6 | 7 | 8 | 10 | 11 | 13 | |||
| min | 2.4 | 2.9 | 2.9 | 3.02 | 3.38 | 3.82 | 4.32 | 4.82 | 4.82 | 5.32 | 5.82 | 6.78 | 7.78 | 9.78 | 10.73 | 12.73 | ||||
| e ① | min | 2.71 | 3.28 | 3.28 | 3.41 | 3.82 | 4.32 | 4.88 | 5.45 | 5.45 | 6.01 | 6.58 | 7.66 | 8.79 | 11.05 | 12.12 | 14.38 | |||
| * | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | ||||
| mpcs(Steel)≈kg | 0.03 | 0.054 | 0.063 | 0.076 | 0.1 | 0.142 | 0.2 | 0.28 | 0.72 | 0.384 | 0.514 | 0.81 | 1.23 | 2.5 | 3.12 | 5.2 | ||||
1. This Strut Channel Support Solar Panel Bracket features a sturdy steel construction, ensuring a long-lasting and reliable mounting solution for solar panel system. 3. Wide application: The cross-sectional shape of c shape u strut channel steel gives it excellent strength and rigidity, and has good compressive resistance. C shape u strut channel steel is widely used in building structures, supporting structures, and machinery manufacturing.
How to use:The new American-style core expansion nail only needs to make a 6mm hole on the ground or wall. The depth is the same as that of the expansion nail. Put the expansion nail into the hole and hammer the head of the expansion nail with a hammer. The tail of the core nail will expand during the hammering process. The nail will be tightly stuck in the casing and will not be pulled out. The use process saves time and effort, and is more beautiful than the pull-out screw. ① Drill a hole in the wall according to the size requirements; ②Insert the expansion screw through the fixed object into the hole; ③Hit the iron nail to expand the inside.
Hexagonal embedded locking nut is a type of fastener that can lock threads. It is widely used in fields such as mechanical manufacturing, automotive manufacturing, and electronic equipment. In high-speed mechanical equipment, locking nuts can effectively prevent thread loosening and ensure the safe and stable operation of the equipment.
Hexagonal embedded locking nut is a type of fastener that can lock threads. It is widely used in fields such as mechanical manufacturing, automotive manufacturing, and electronic equipment. In high-speed mechanical equipment, locking nuts can effectively prevent thread loosening and ensure the safe and stable operation of the equipment.
The application scenarios of sheep eye hook sleeves mainly include home decoration, kitchen construction, door and window binding, and toy and gift binding. Sheep eye hook sleeve is commonly used in home decoration and kitchen construction, which can meet various hook needs and provide a firm fixing point. In addition, it can also be used for door and window binding or toy gift binding, providing reliable fixing effect.
1. Metal-frame anchor are mainly used for expansion anchors of doors and windows. The product is mainly composed of expansion tube screw taper nut.It can firmly fix machines, doors and windows, structural parts, equipment or various appliances on walls, bases or concrete foundations. 2. Advantage: Metal frame anchors have many advantages such as simple installation, firm fixation and convenient construction. 3. Application: Metal frame anchors are widely used in many industries, such as door and window installation, floor installation, fixing heavy objects, etc. In the decoration industry, they can be used to fix decoration materials.
Through its specially designed shape, DIN981 round nuts can provide high locking force, ensuring a tight connection between components. This type of nut comes in multiple specifications, suitable for different bolt diameters and connection requirements. Made of galvanized or stainless steel materials, it has good corrosion resistance and is suitable for various environments. Tightening and loosening can be achieved through simple rotation movements, making the operation simple.
DIN928 welded square nuts are widely used in multiple fields, including mechanical manufacturing, automotive industry, aerospace, photovoltaics, transportation, construction, and more. The characteristics of these application areas require high-strength and reliable fasteners, and DIN928 welded square nuts precisely meet these requirements. It can withstand high-strength tensile and shear forces, suitable for situations that require strong forces and vibrations. The design of the four corners provides better welding performance, making the connection more secure and reliable. It can be installed through welding or threaded connection, making installation simple and convenient. Suitable for various industrial fields, ensuring stability and reliability of connections.
DIN929 welded hex nuts are mainly used in scenarios that require high-strength connections and special shaped connections. This type of nut is connected to the connector by welding and is suitable for situations where conventional bolt connections cannot be made, such as when the connector is too thin or irregularly shaped. The welding process is equivalent to turning two separate parts into a whole, melting the metal at high temperature, mixing it together, and then cooling it. An alloy is added in the middle, relying on molecular force, and its strength is generally greater than that of the parent material.
GB854 Tab Washers With Long Tab is mainly used to prevent bolts or nuts from loosening in vibration environments, ensuring the stability of the connection.

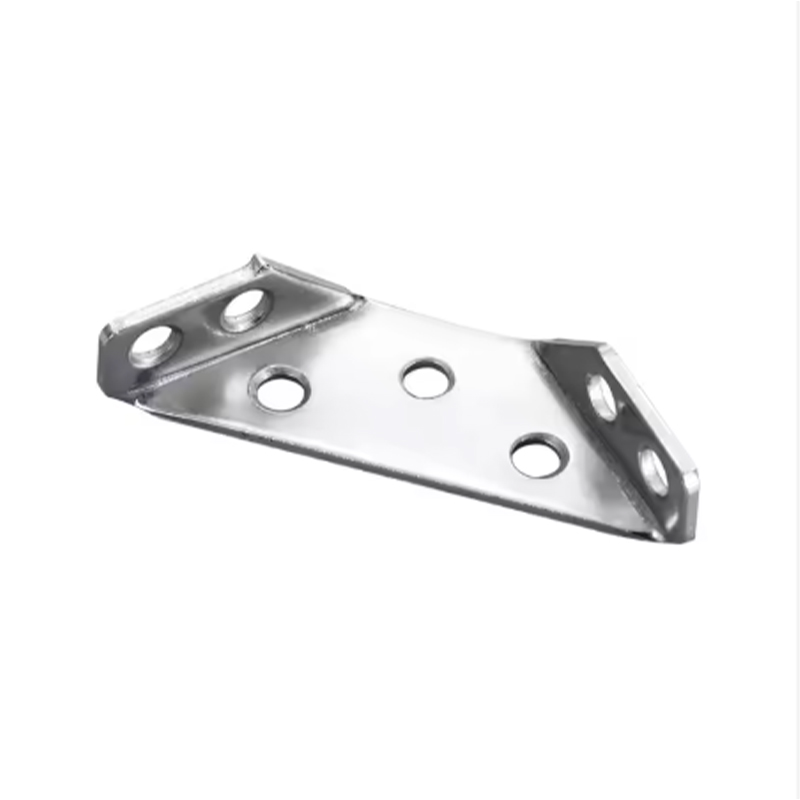

Specification:①Thickened multifunctional angle code ②Ordinary multifunctional angle code Instalation scope:used for all kinds of tables,chairs,beds,laminated cabinet,etc.
Hexagonal embedded locking nut is a type of fastener that can lock threads. It is widely used in fields such as mechanical manufacturing, automotive manufacturing, and electronic equipment. In high-speed mechanical equipment, locking nuts can effectively prevent thread loosening and ensure the safe and stable operation of the equipment.
Product analysis: countersunk hole design, parallel angle code, brushed finish, high-quality stainless steel material, smooth edges without burrs Scope of application: suitable for all kinds of tables, chairs, desks, stools, beds, cabinets, shelves, etc.
DIN127 spring washers are mainly used in bolt connections, especially in bolt connections with a strength grade of 5.8 or below. Its main purpose is to prevent bolt loosening by increasing the axial rebound force to compensate for the loss of preload force caused by compression, thereby preventing the loosening of threaded connections.
The outer tongue stop washer can distribute the load on the screw or bolt to a larger surface, thereby reducing the possibility of loosening and improving the reliability of the connection. During the assembly process, the outer tongue stop washer can serve as a buffer and protection to prevent scratches and damage to threads, surfaces, and parts.
It has a hanging function and is used to hang building decorations under cement prefabricated boards, wooden boards, gypsum boards, decorative boards or other board ceilings; The sheep’s eye bolt has a large cross-sectional diameter, long screw and thread lengths, and can withstand high loads when installed on suspended ceilings. It is safe, stable, and not easily loosened.
