1. Hex nuts are mainly used in conjunction with bolts or screws to achieve the connection and fastening of two or more parts. The design of hex nuts enables them to have good torque transmission capabilities and can withstand large axial and radial loads.
2. Characteristic: There must be enough operating space during installation. You can use an adjustable wrench, open-end wrench or glasses wrench during installation. All of the above wrenches require a large operating space.
3. Wide application: It is widely used and is characterized by its strong tightening force. Hex nuts cover almost all areas where fasteners are needed. For example: construction engineering, machinery manufacturing, electronic products and home repair, etc.
| Product Name | DIN934 Hex Nut |
| Material | Carbon steel, Stainless steel |
| Surface Finish | Yellow zinc, Blackened, Blue and white zinc, Bleached |
| Colour | Yellow, Black, Blue White, White |
| Standard Number | DIN934 |
| Grade | 4 8 10 A2-70 |
| Diameter | M3 M4 M5 M6 M7 M8 M10 M12 M14 M16 M18 M20 |
| Thread form | Coarse thread, Medium thread, Fine thread |
| Place of origin | Hebei, China |
| Brand | Muyi |
| Pack | Box+cardboard carton+pallet |
| The product can be customized | |
| 1. Hex nuts are mainly used in conjunction with bolts or screws to achieve the connection and fastening of two or more parts. The design of hex nuts enables them to have good torque transmission capabilities and can withstand large axial and radial loads. 2. Characteristic: There must be enough operating space during installation. You can use an adjustable wrench, open-end wrench or glasses wrench during installation. All of the above wrenches require a large operating space. 3. Wide application: It is widely used and is characterized by its strong tightening force. Hex nuts cover almost all areas where fasteners are needed. For example: construction engineering, machinery manufacturing, electronic products and home repair, etc. |
|

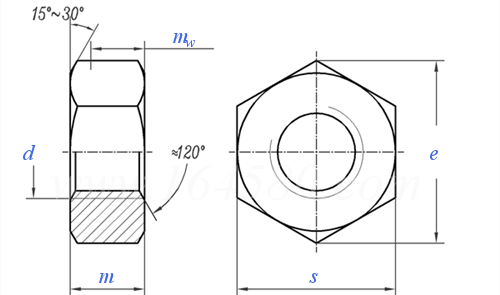

| Thread Spec D |
M1 | M1.2 | M1.4 | M1.6 | (M1.7) | M2 | (M2.3) | M2.5 | (M2.6) | M3 | (M3.5) | M4 | M5 | M6 | (M7) | M8 | ||
| P | flight lead | Coarse thread | 0.25 | 0.25 | 0.3 | 0.35 | 0.35 | 0.4 | 0.45 | 0.45 | 0.45 | 0.5 | 0.6 | 0.7 | 0.8 | 1 | 1 | 1.25 |
| Fine thread1 | / | / | / | / | / | / | / | / | / | / | / | / | / | / | / | 1 | ||
| Fine thread2 | / | / | / | / | / | / | / | / | / | / | / | / | / | / | / | / | ||
| m | max | 0.8 | 1 | 1.2 | 1.3 | 1.4 | 1.6 | 1.8 | 2 | 2 | 2.4 | 2.8 | 3.2 | 4 | 5 | 5.5 | 6.5 | |
| min | 0.55 | 0.75 | 0.95 | 1.05 | 1.15 | 1.35 | 1.55 | 1.75 | 1.75 | 2.15 | 2.55 | 2.9 | 3.7 | 4.7 | 5.2 | 6.14 | ||
| mw | min | 0.44 | 0.6 | 0.76 | 0.84 | 0.92 | 1.08 | 1.24 | 1.4 | 1.4 | 1.72 | 2.04 | 2.32 | 2.96 | 3.76 | 4.16 | 4.91 | |
| s | max=nominal | 2.5 | 3 | 3 | 3.2 | 3.5 | 4 | 4.5 | 5 | 5 | 5.5 | 6 | 7 | 8 | 10 | 11 | 13 | |
| min | 2.4 | 2.9 | 2.9 | 3.02 | 3.38 | 3.82 | 4.32 | 4.82 | 4.82 | 5.32 | 5.82 | 6.78 | 7.78 | 9.78 | 10.73 | 12.73 | ||
| e | min | 2.71 | 3.28 | 3.28 | 3.41 | 3.82 | 4.32 | 4.88 | 5.45 | 5.45 | 6.01 | 6.58 | 7.66 | 8.79 | 11.05 | 12.12 | 14.38 | |
| Thread Spec D |
M10 | M12 | (M14) | M16 | (M18) | M20 | (M22) | M24 | (M27) | M30 | (M33) | M36 | (M39) | M42 | (M45) | M48 | ||
| P | flight lead | Coarse thread | 1.5 | 1.75 | 2 | 2 | 2.5 | 2.5 | 2.5 | 3 | 3 | 3.5 | 3.5 | 4 | 4 | 4.5 | 4.5 | 5 |
| Fine thread1 | 1 | 1.5 | 1.5 | 1.5 | 1.5 | 2 | 1.5 | 2 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 3 | ||
| Fine thread2 | 1.25 | 1.25 | / | / | 2 | 1.5 | 2 | / | / | / | / | / | / | / | / | / | ||
| m | max | 8 | 10 | 11 | 13 | 15 | 16 | 18 | 19 | 22 | 24 | 26 | 29 | 31 | 34 | 36 | 38 | |
| min | 7.64 | 9.64 | 10.3 | 12.3 | 14.3 | 14.9 | 16.9 | 17.7 | 20.7 | 22.7 | 24.7 | 27.4 | 29.4 | 32.4 | 34.4 | 36.4 | ||
| mw | min | 6.11 | 7.71 | 8.24 | 9.84 | 11.44 | 11.92 | 13.52 | 14.16 | 16.56 | 18.16 | 19.76 | 21.92 | 23.52 | 25.9 | 27.5 | 29.1 | |
| s | max=nominal | 17 | 19 | 22 | 24 | 27 | 30 | 32 | 36 | 41 | 46 | 50 | 55 | 60 | 65 | 70 | 75 | |
| min | 16.73 | 18.67 | 21.67 | 23.67 | 26.16 | 29.16 | 31 | 35 | 40 | 45 | 49 | 53.8 | 58.8 | 63.1 | 68.1 | 73.1 | ||
| e | min | 18.9 | 21.1 | 24.49 | 26.75 | 29.56 | 32.95 | 35.03 | 39.55 | 45.2 | 50.85 | 55.37 | 60.79 | 66.44 | 71.3 | 76.95 | 82.6 | |
| Thread Spec D |
(M52) | M56 | (M60) | M64 | (M68) | M72 | (M76) | M80 | (M85) | M90 | M100 | M110 | M125 | M140 | M160 | M8 | ||
| P | flight lead | Coarse thread | 5 | 5.5 | 5.5 | 6 | 6 | / | / | / | / | / | / | / | / | / | / | 1.25 |
| Fine thread1 | 3 | 4 | 4 | 4 | / | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 1 | ||
| Fine thread2 | / | / | / | / | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | / | / | / | ||
| m | max | 42 | 45 | 48 | 51 | 54 | 58 | 61 | 64 | 68 | 72 | 80 | 88 | 100 | 112 | 128 | 6.5 | |
| min | 40.4 | 43.4 | 46.4 | 49.1 | 52.1 | 56.1 | 59.1 | 62.1 | 66.1 | 70.1 | 78.1 | 85.8 | 97.8 | 109.8 | 125.5 | 6.14 | ||
| mw | min | 32.3 | 34.7 | 37.1 | 39.3 | 41.7 | 44.9 | 47.3 | 49.7 | 52.9 | 56.1 | 62.5 | 68.6 | 78.2 | 87.8 | 100 | 4.91 | |
| s | max=nominal | 80 | 85 | 90 | 95 | 100 | 105 | 110 | 115 | 120 | 130 | 145 | 155 | 180 | 200 | 230 | 13 | |
| min | 78.1 | 82.8 | 87.8 | 92.8 | 97.8 | 102.8 | 107.8 | 112.8 | 117.8 | 127.5 | 142.5 | 152.5 | 177.5 | 195.4 | 225.4 | 12.73 | ||
| e | min | 88.25 | 93.56 | 99.21 | 104.86 | 110.51 | 116.16 | 121.81 | 127.46 | 133.11 | 144.08 | 161.02 | 172.32 | 200.57 | 220.8 | 254.7 | 14.38 | |
Hex nuts are used in conjunction with bolts and screws to primarily connect and tighten mechanical components. Hexagonal nuts of different types and grades are suitable for different occasions to meet different precision and surface treatment requirements. Widely applicable, with strong fastening force, suitable for occasions requiring large operating space.
1. Hex nuts are mainly used in conjunction with bolts or screws to achieve the connection and fastening of two or more parts. The design of hex nuts enables them to have good torque transmission capabilities and can withstand large axial and radial loads. 2. Characteristic: There must be enough operating space during installation. You can use an adjustable wrench, open-end wrench or glasses wrench during installation. All of the above wrenches require a large operating space. 3. Wide application: It is widely used and is characterized by its strong tightening force. Hex nuts cover almost all areas where fasteners are needed. For example: construction engineering, machinery manufacturing, electronic products and home repair, etc.
1. Determine bearing capacity: The diameter of the nut is directly related to its bearing capacity. Generally speaking, the larger the diameter, the stronger the load-bearing capacity of the nut. This means that when subjected to high loads, it is necessary to choose nuts with larger diameters 2. Impact on installation space: The diameter of the nut can also affect its installation space requirements. When designing mechanical structures, it is necessary to consider the diameter of the nut to ensure sufficient space for installation and operation. 3. Standardized production: The DIN934 standard specifies the diameter of nuts, which helps to achieve standardized production of nuts. Standardized production not only improves production efficiency, but also ensures the quality and interchangeability of nuts. The diameter parameter in DIN934 standard plays a key role in the application of nuts, which not only affects the function and performance of nuts, but also relates to the stability and safety of the entire mechanical structure.
