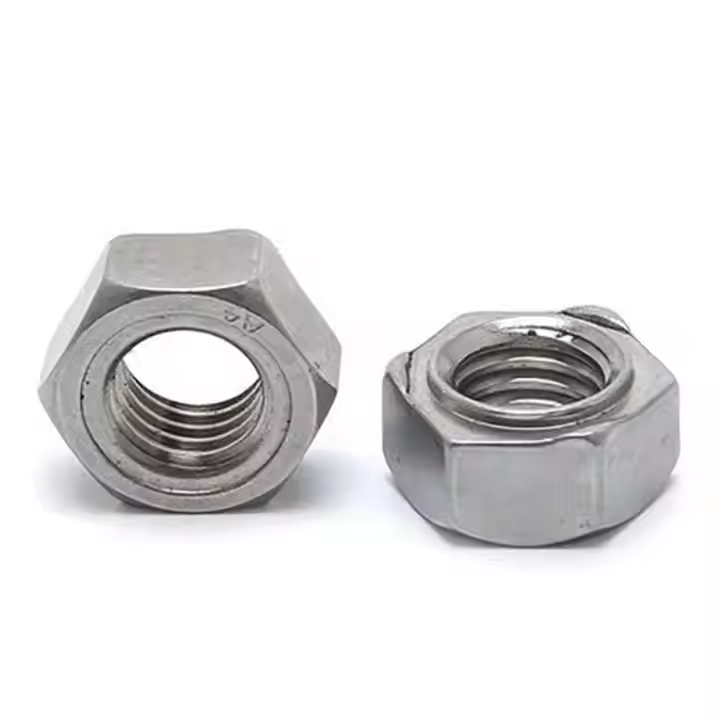

DIN929 welded hex nuts are mainly used in scenarios that require high-strength connections and special shaped connections. This type of nut is connected to the connector by welding and is suitable for situations where conventional bolt connections cannot be made, such as when the connector is too thin or irregularly shaped. The welding process is equivalent to turning two separate parts into a whole, melting the metal at high temperature, mixing it together, and then cooling it. An alloy is added in the middle, relying on molecular force, and its strength is generally greater than that of the parent material.

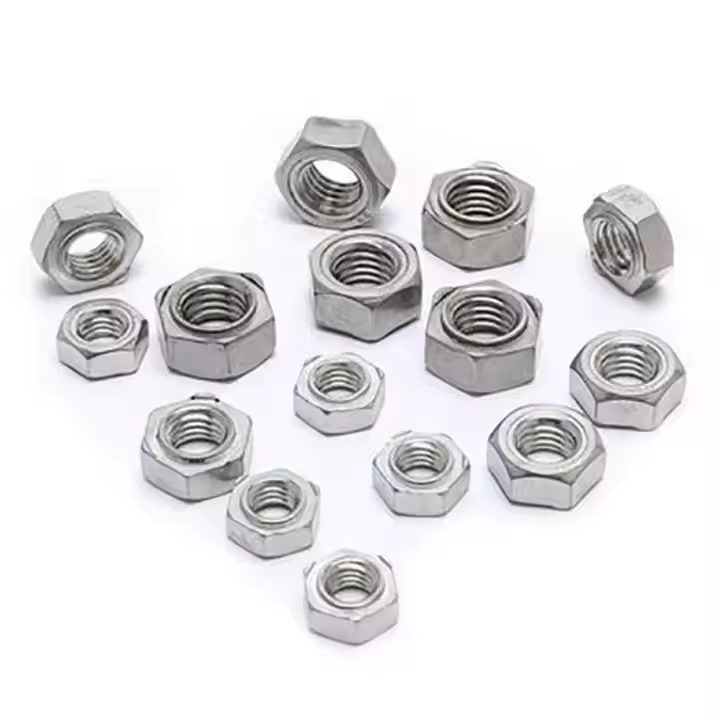

| Product Name | DIN929 Hexagon Weld Nuts |
| Material | Carbon steel, Stainless steel |
| Surface Finish | Original color, Decolourize |
| Colour | White |
| Standard Number | DIN929 |
| Grade | 4 6 A2-70 |
| Diameter | M4 M5 M6 M8 M10 M12 M14 M16 |
| Thread form | Coarse thread |
| Place of origin | Hebei, China |
| Brand | Muyi |
| Pack | Box+cardboard carton+pallet |
| The product can be customized | |
| DIN929 welded hex nuts are mainly used in scenarios that require high-strength connections and special shaped connections. This type of nut is connected to the connector by welding and is suitable for situations where conventional bolt connections cannot be made, such as when the connector is too thin or irregularly shaped. The welding process is equivalent to turning two separate parts into a whole, melting the metal at high temperature, mixing it together, and then cooling it. An alloy is added in the middle, relying on molecular force, and its strength is generally greater than that of the parent material. | |

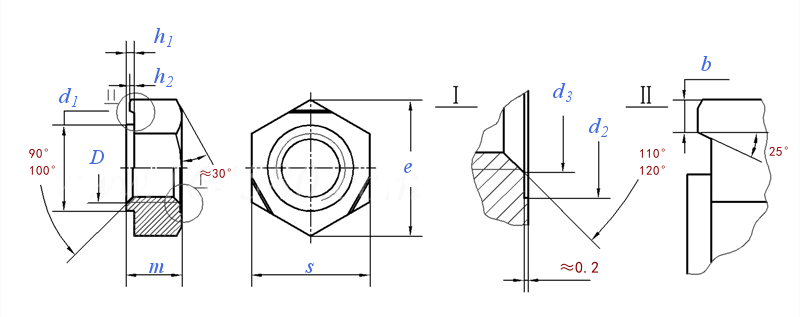

| Thread Spec D |
M3 | M4 | M5 | M6 | M8 | M10 | M12 | M14 | M16 | ||
| P | Flight lead | Coarse thread | 0.5 | 0.7 | 0.8 | 1 | 1.25 | / | 1.75 | 2 | 2 |
| Fine thread1 | / | / | / | / | 1 | / | 1.25 | 1.5 | 1.5 | ||
| Fine thread2 | / | / | / | / | / | * | 1.5 | / | / | ||
| b | nominal | 0.8 | 0.8 | 0.8 | 0.9 | 1 | 1.25 | 1.25 | 1.5 | 1.5 | |
| max | 1 | 1 | 1 | 1.12 | 1.25 | 1.55 | 1.55 | 1.9 | 1.9 | ||
| min | 0.6 | 0.6 | 0.6 | 0.68 | 0.75 | 0.95 | 0.95 | 1.1 | 1.1 | ||
| d1 | nominal | 4.5 | 6 | 7 | 8 | 10.5 | 13.5 | 14.8 | 16.8 | 18.8 | |
| max | 4.47 | 5.97 | 6.96 | 7.96 | 10.45 | 13.45 | 14.75 | 16.75 | 18.735 | ||
| min | 4.395 | 5.895 | 6.87 | 7.87 | 10.34 | 13.34 | 14.64 | 16.64 | 18.605 | ||
| d2 | min=nominal | 4.5 | 6 | 7 | 8 | 10.5 | 13.5 | 14.8 | 16.8 | 18.8 | |
| max | 4.68 | 6.18 | 7.22 | 8.22 | 10.77 | 13.77 | 15.07 | 17.07 | 19.13 | ||
| d3 | max | 3.15 | 4.2 | 5.25 | 6.3 | 8.4 | 11.7 | 12.6 | 14.7 | 16.8 | |
| e | min | 8.15 | 9.83 | 10.95 | 12.02 | 15.38 | 20.91 | 20.91 | 24.27 | 26.51 | |
| h1 | max | 0.55 | 0.65 | 0.7 | 0.75 | 0.9 | 1.4 | 1.4 | 1.8 | 1.8 | |
| min | 0.45 | 0.55 | 0.6 | 0.6 | 0.75 | 1.2 | 1.2 | 1.6 | 1.6 | ||
| h2 | max | 0.25 | 0.35 | 0.4 | 0.4 | 0.5 | 0.8 | 0.8 | 1 | 1 | |
| min | 0.15 | 0.25 | 0.3 | 0.3 | 0.35 | 0.6 | 0.6 | 0.8 | 0.8 | ||
| m | max=nominal | 3 | 3.5 | 4 | 5 | 6.5 | 10 | 10 | 11 | 13 | |
| min | 2.75 | 3.2 | 3.7 | 4.7 | 6.14 | 9.64 | 9.64 | 10.57 | 12.57 | ||
| s | max=nominal | 7.5 | 9 | 10 | 11 | 14 | 19 | 19 | 22 | 24 | |
| min | 7.28 | 8.78 | 9.78 | 10.73 | 13.73 | 18.67 | 18.67 | 21.67 | 23.67 | ||
| 1000 pcs/weight kg |
0.78 | 1.13 | 1.73 | 2.5 | 5.27 | 14 | 13.7 | 21.3 | 28.5 | ||
