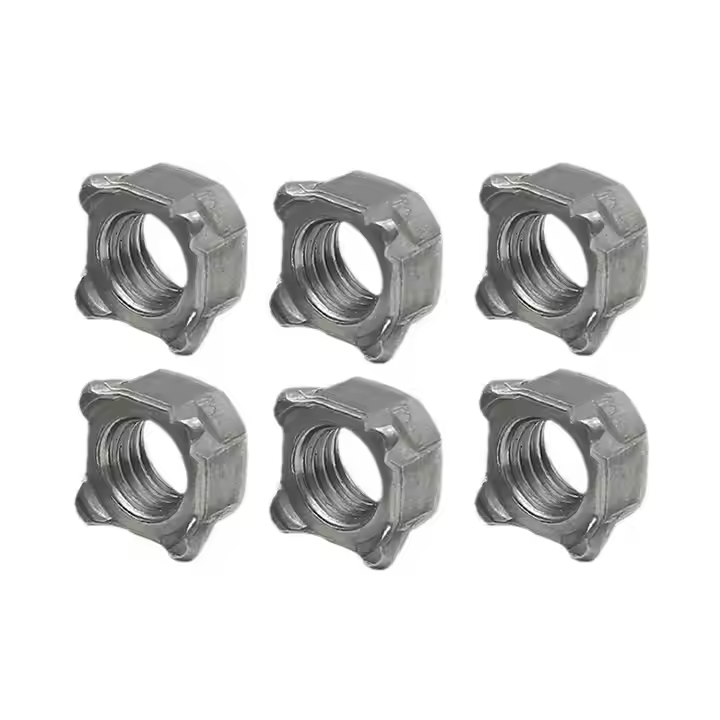

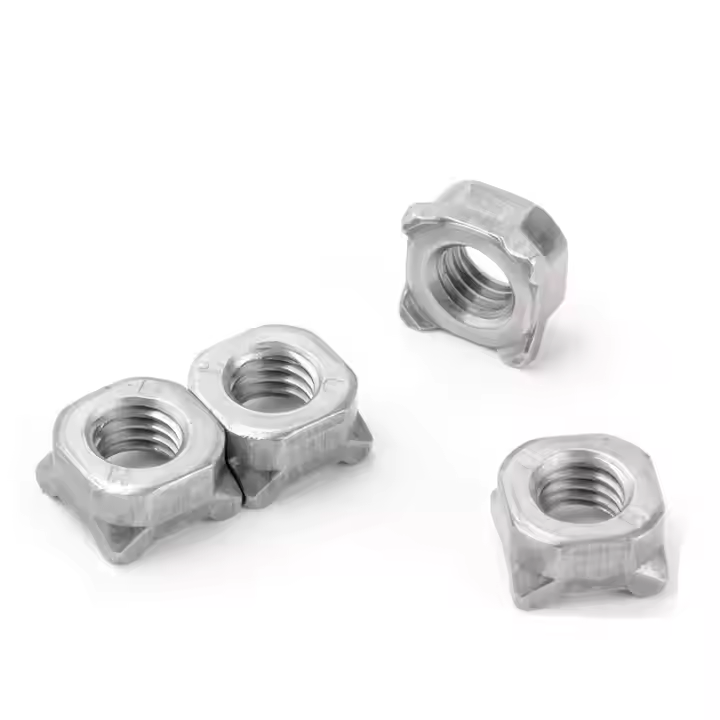

DIN928 welded square nuts are widely used in multiple fields, including mechanical manufacturing, automotive industry, aerospace, photovoltaics, transportation, construction, and more. The characteristics of these application areas require high-strength and reliable fasteners, and DIN928 welded square nuts precisely meet these requirements. It can withstand high-strength tensile and shear forces, suitable for situations that require strong forces and vibrations. The design of the four corners provides better welding performance, making the connection more secure and reliable. It can be installed through welding or threaded connection, making installation simple and convenient. Suitable for various industrial fields, ensuring stability and reliability of connections.
| Product Name | DIN928 Square weld nut |
| Material | Carbon steel, Stainless steel |
| Surface Finish | Original color, Decolourize |
| Colour | White |
| Standard Number | DIN928 |
| Grade | 6 A2-70 |
| Diameter | M4 M5 M6 M8 M10 M12 |
| Thread form | Coarse thread |
| Place of origin | Hebei, China |
| Brand | Muyi |
| Pack | Box+cardboard carton+pallet |
| The product can be customized | |
| DIN928 welded square nuts are widely used in multiple fields, including mechanical manufacturing, automotive industry, aerospace, photovoltaics, transportation, construction, and more. The characteristics of these application areas require high-strength and reliable fasteners, and DIN928 welded square nuts precisely meet these requirements. It can withstand high-strength tensile and shear forces, suitable for situations that require strong forces and vibrations. The design of the four corners provides better welding performance, making the connection more secure and reliable. It can be installed through welding or threaded connection, making installation simple and convenient. Suitable for various industrial fields, ensuring stability and reliability of connections. | |

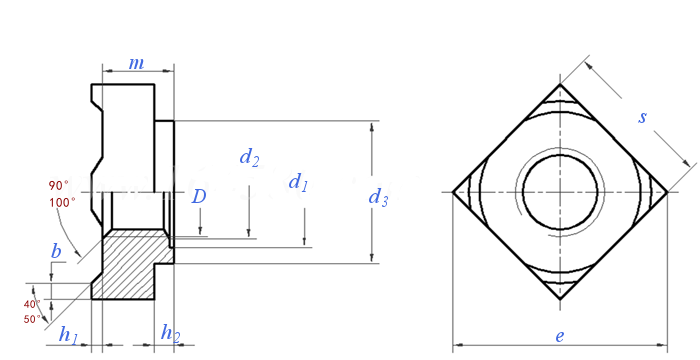

| Thread Spec D |
M4 | M5 | M6 | M8 | M10 | M12 | M14 | M16 | |
| P | Coarse thread | 0.7 | 0.8 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2 |
| Fine thread1 | / | / | / | 1 | 1 | 1.25 | 1.5 | 1.5 | |
| Fine thread2 | / | / | / | / | 1.25 | 1.5 | - | - | |
| b | nominal | 0.8 | 1 | 1.2 | 1.5 | 1.8 | 2 | 2.5 | 2.5 |
| max | 0.95 | 1.15 | 1.35 | 1.65 | 2 | 2.2 | 2.7 | 2.7 | |
| min | 0.65 | 0.85 | 1.05 | 1.35 | 1.6 | 1.8 | 2.3 | 2.3 | |
| d1 | min=nominal | 5 | 6 | 7.5 | 10 | 12.5 | 13.5 | 16.8 | 18.8 |
| max | 5.18 | 6.18 | 7.72 | 10.22 | 12.77 | 13.77 | 17.07 | 19.13 | |
| d2 | max | 4.2 | 5.25 | 6.3 | 8.4 | 10.5 | 12.6 | 14.7 | 16.8 |
| d3 | min | 6.4 | 8.2 | 9.1 | 12.8 | 15.6 | 17.4 | 20.4 | 22.4 |
| e | min | 9 | 12 | 13 | 18 | 22 | 25 | 28 | 32 |
| h1 | nominal | 0.6 | 0.8 | 0.8 | 1 | 1.2 | 1.4 | 1.4 | 1.6 |
| max | 0.7 | 0.9 | 0.9 | 1.1 | 1.3 | 1.5 | 1.5 | 1.7 | |
| min | 0.5 | 0.7 | 0.7 | 0.9 | 1.1 | 1.3 | 1.3 | 1.5 | |
| h2 | min | 0.4 | 0.6 | 0.7 | 1.1 | 1.25 | 1.75 | 1.75 | 2 |
| max | 1.3 | 1.5 | 1.8 | 2 | 2.2 | 3 | 3.2 | 4 | |
| m | max=nominal | 3.5 | 4.2 | 5 | 6.5 | 8 | 9.5 | 11 | 13 |
| min | 3.2 | 3.9 | 4.7 | 6.14 | 7.64 | 9.14 | 10.57 | 12.57 | |
| s | max=nominal | 7 | 9 | 10 | 14 | 17 | 19 | 22 | 24 |
| min | 6.64 | 8.64 | 9.64 | 13.57 | 16.57 | 18.48 | 21.48 | 23.48 | |
| 1000 pcs/weight kg |
0.81 | 1.7 | 2.4 | 6.5 | 11.3 | 16.5 | 26.7 | 35.8 | |
