1. Preventing loosening: The main function of spring washers is to prevent loosening of fasteners (such as nuts and bolts) through their elasticity and oblique friction. When the nut is tightened, the spring washer is compressed, generating a reverse force that increases the friction between the nut and bolt, effectively preventing loosening
2. Reduce friction: Spring washers can also reduce friction between nuts and bolts, making fasteners less likely to loosen when subjected to vibration. This characteristic is particularly important for mechanical equipment that is frequently subjected to vibration or impact
3. Expand contact area: Although flat washers are mainly used to expand contact area and disperse pressure, spring washers can also play a similar role to some extent. Especially when the strength of the connected parts is low, using flat pads or flange bolts can increase the contact area, while spring washers can further prevent loosening
4. Special applications: In some special cases, the use of spring washers depends on specific engineering requirements.

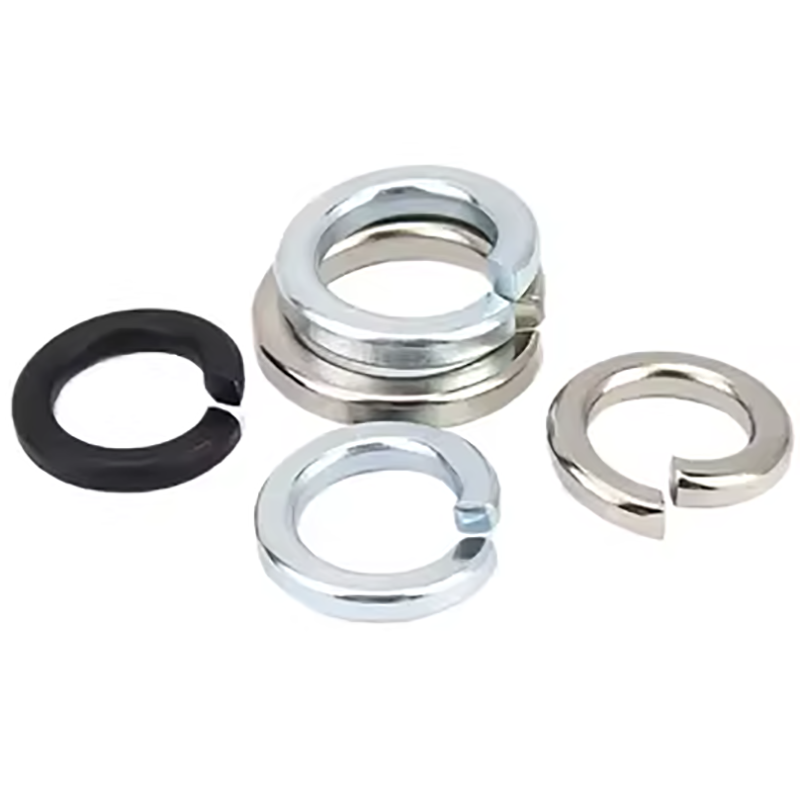

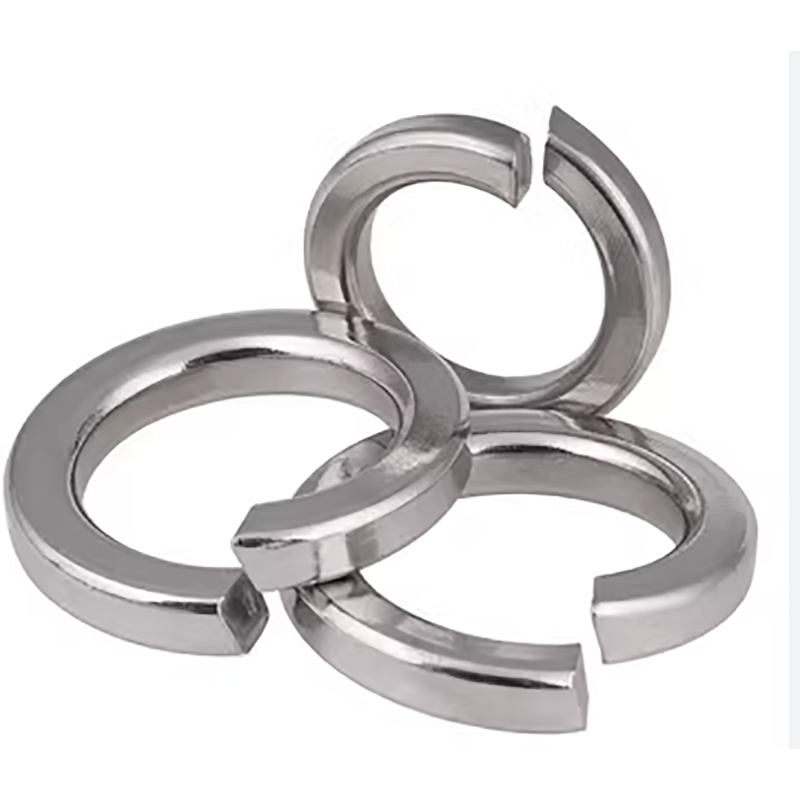

| Product Name | DIN7980 spring washer |
| Material | Carbon steel, Stainless steel |
| Surface Finish | Blackened, Blue and white zinc, |
| Colour | Black, Blue white |
| Standard Number | |
| Grade | 4 8 10 A2-70 |
| Diameter | |
| Thread form | |
| Place of origin | Hebei, China |
| Brand | Muyi |
| Pack | Box+cardboard carton+pallet |
| The product can be customized | |
| 1. Preventing loosening: The main function of spring washers is to prevent loosening of fasteners (such as nuts and bolts) through their elasticity and oblique friction. When the nut is tightened, the spring washer is compressed, generating a reverse force that increases the friction between the nut and bolt, effectively preventing loosening 2. Reduce friction: Spring washers can also reduce friction between nuts and bolts, making fasteners less likely to loosen when subjected to vibration. This characteristic is particularly important for mechanical equipment that is frequently subjected to vibration or impact 3. Expand contact area: Although flat washers are mainly used to expand contact area and disperse pressure, spring washers can also play a similar role to some extent. Especially when the strength of the connected parts is low, using flat pads or flange bolts can increase the contact area, while spring washers can further prevent loosening 4. Special applications: In some special cases, the use of spring washers depends on specific engineering requirements. |
|

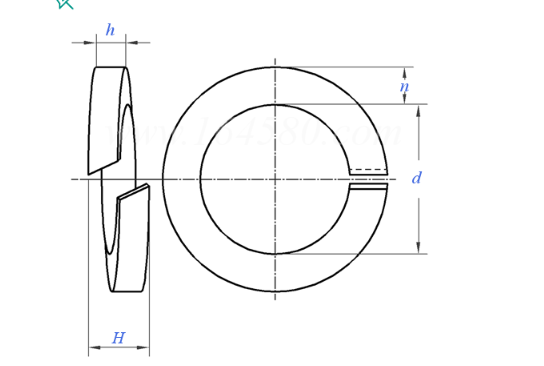

| 公称直径 | Φ3 | Φ3.5 | Φ4 | Φ5 | Φ6 | Φ8 | Φ10 | Φ12 | Φ14 | Φ16 | |
| d | 最小值 | 3.1 | 3.6 | 4.1 | 5.1 | 6.1 | 8.1 | 10.2 | 12.2 | 14.2 | 16.2 |
| 最大值 | 3.4 | 3.9 | 4.4 | 5.4 | 6.5 | 8.5 | 10.7 | 12.7 | 14.7 | 17 | |
| h | 公称 | 1 | 1 | 1.2 | 1.6 | 1.6 | 2 | 2.5 | 2.5 | 3 | 3.5 |
| 最大值 | 1.1 | 1.1 | 1.3 | 1.7 | 1.7 | 2.1 | 2.65 | 2.65 | 3.2 | 3.7 | |
| 最小值 | 0.9 | 0.9 | 1.1 | 1.5 | 1.5 | 1.9 | 2.35 | 2.35 | 2.8 | 3.3 | |
| n | 公称 | 1 | 1 | 1.2 | 1.6 | 1.6 | 2 | 2.5 | 2.5 | 3 | 3.5 |
| 最大值 | 1.1 | 1.1 | 1.3 | 1.7 | 1.7 | 2.1 | 2.65 | 2.65 | 3.2 | 3.7 | |
| 最小值 | 0.9 | 0.9 | 1.1 | 1.5 | 1.5 | 1.9 | 2.35 | 2.35 | 2.8 | 3.3 | |
| H | 最小值 | 2 | 2 | 2.4 | 3.2 | 3.2 | 4 | 5 | 5 | 6 | 7 |
| 最大值 | 2.36 | 2.36 | 2.83 | 3.78 | 3.78 | 4.72 | 5.9 | 5.9 | 7.1 | 8.25 | |
| 适用螺纹 | M3 | M3.5 | M4 | M5 | M6 | M8 | M10 | M12 | M14 | M16 | |
| 千件重(钢制)≈kg | 0.105 | 0.114 | 0.195 | 0.37 | 0.425 | 1.06 | 1.96 | 2.28 | 3.8 | 5.94 | |
