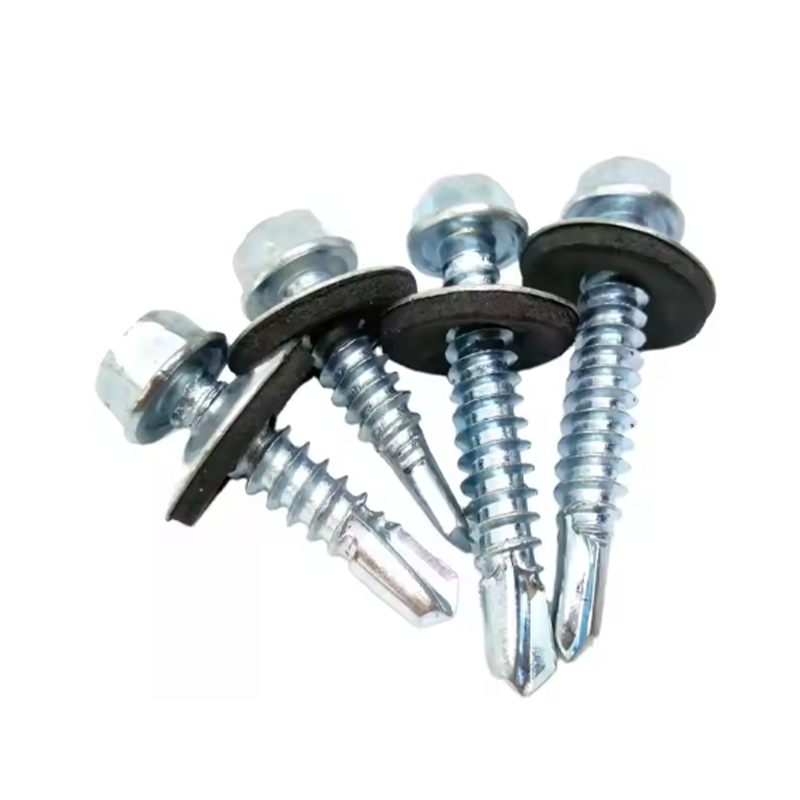

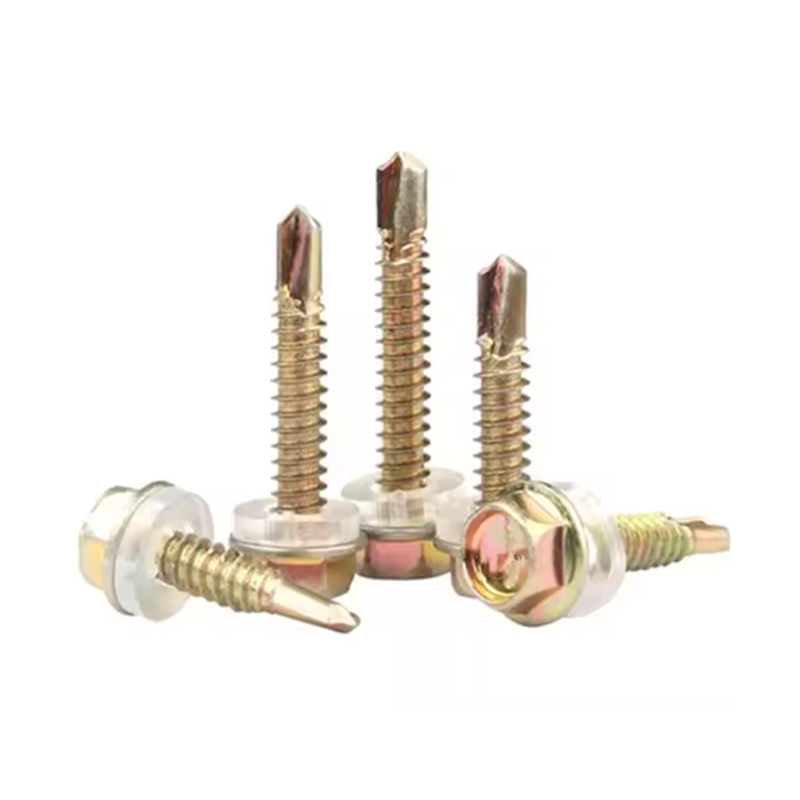

1.DIN7504K refers to a self-drilling screw with a hexagonal head, a flanged head, and a pointed end.The tail of a self-drilling screw is different from that of an ordinary screw. It is not a pointed tail, but is like a drill bit. This tail allows the screw to drill holes by itself without the need for pre-made holes when screwing into steel plates, wood, etc.
2. Advantages: The biggest advantage is that it does not require auxiliary processing, and can be directly drilled and tapped on the material, which greatly saves construction time. In addition, DIN7504K has higher toughness and maintenance, and will not easily loosen after long-term use, thereby enhancing the stability of the structure.
3. Wide application: Hex self-drilling screws are widely used in the construction industry, especially in the fixing of color steel tiles on steel structures. Because of their easy and firm installation, they can effectively improve construction efficiency and quality. In addition, hexa self-drilling screws are also commonly used to fix thin plates in simple buildings, showing their practicality in a variety of construction environments.
| Product Name | DIN7504K Hex Head Drilling Screws With Tapping Screw Thread With Collar |
| Material | Carbon steel, Stainless steel |
| Surface Finish | Yellow zinc, Blue and white zinc, Bleached |
| Colour | Yellow, Blue White, White |
| Standard Number | DIN7504K |
| Grade | 4 8 10 A2-70 |
| Diameter | M3 M3.5 M4 M4.5 M5 M5.5 M6 |
| Thread form | Coarse thread, Fine thread |
| Place of origin | Hebei, China |
| Brand | Muyi |
| Pack | Box+cardboard carton+pallet |
| The product can be customized | |
| 1.DIN7504K refers to a self-drilling screw with a hexagonal head, a flanged head, and a pointed end.The tail of a self-drilling screw is different from that of an ordinary screw. It is not a pointed tail, but is like a drill bit. This tail allows the screw to drill holes by itself without the need for pre-made holes when screwing into steel plates, wood, etc. 2. Advantages: The biggest advantage is that it does not require auxiliary processing, and can be directly drilled and tapped on the material, which greatly saves construction time. In addition, DIN7504K has higher toughness and maintenance, and will not easily loosen after long-term use, thereby enhancing the stability of the structure. 3. Wide application: Hex self-drilling screws are widely used in the construction industry, especially in the fixing of color steel tiles on steel structures. Because of their easy and firm installation, they can effectively improve construction efficiency and quality. In addition, hexa self-drilling screws are also commonly used to fix thin plates in simple buildings, showing their practicality in a variety of construction environments. |
|

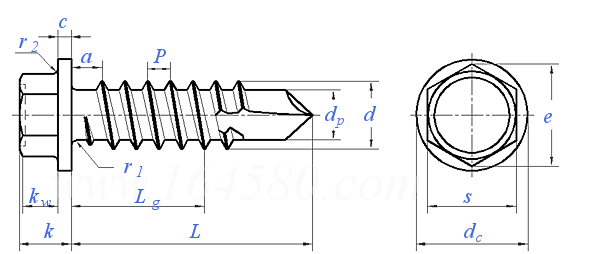

| Thread specification | ST2.9 | ST3.5 | (ST3.9) | ST4.2 | ST4.8 | (ST5.5) | ST6.3 | ||
| P | Pitch | 1.1 | 1.3 | 1.3 | 1.4 | 1.6 | 1.8 | 1.8 | |
| a | max | 1.1 | 1.3 | 1.3 | 1.4 | 1.6 | 1.8 | 1.8 | |
| c | min | 0.4 | 0.6 | 0.6 | 0.8 | 0.9 | 1 | 1 | |
| dc | max | 6.3 | 8.3 | 8.3 | 8.8 | 10.5 | 11 | 13.5 | |
| min | 5.8 | 7.6 | 7.6 | 8.1 | 9.8 | 10 | 12.2 | ||
| e | min | 4.28 | 5.96 | 5.96 | 7.59 | 8.71 | 8.71 | 10.95 | |
| k | max | 2.8 | 3.4 | 3.4 | 4.1 | 4.3 | 5.4 | 5.9 | |
| min | 2.5 | 3 | 3 | 3.6 | 3.8 | 4.8 | 5.3 | ||
| Kw | min | 1.3 | 1.5 | 1.5 | 1.8 | 2.2 | 2.7 | 3.1 | |
| r | max | 0.4 | 0.5 | 0.5 | 0.6 | 0.7 | 0.8 | 0.9 | |
| s | max | 4 | 5.5 | 5.5 | 7 | 8 | 8 | 10 | |
| min | 3.82 | 5.32 | 5.32 | 6.78 | 7.78 | 7.78 | 9.78 | ||
| dp | 2.3 | 2.8 | 3.1 | 3.6 | 4.1 | 4.8 | 5.8 | ||
| Drilling range (plate thickness) | 0.7~1.9 | 0.7~2.25 | 0.7~2.4 | 1.75~3 | 1.75~4.4 | 1.75~5.25 | 2~6 | ||
