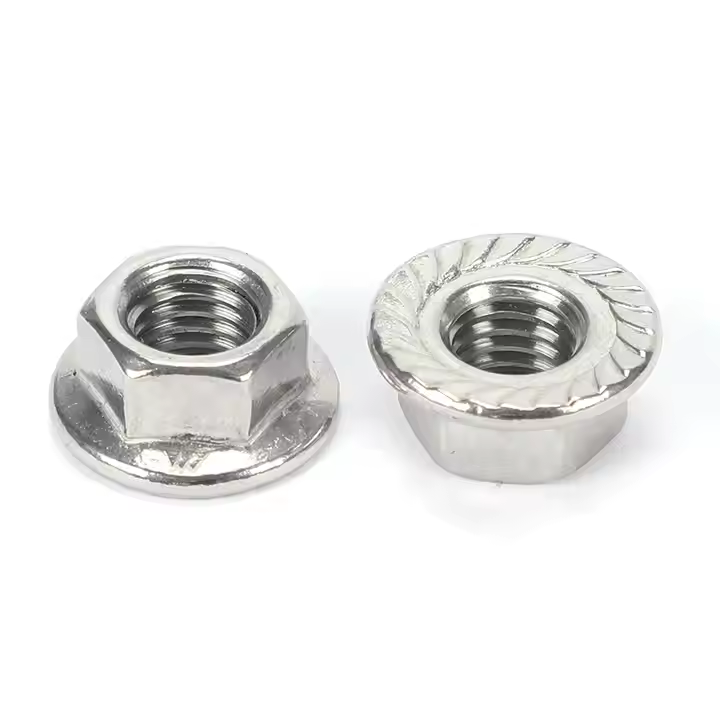

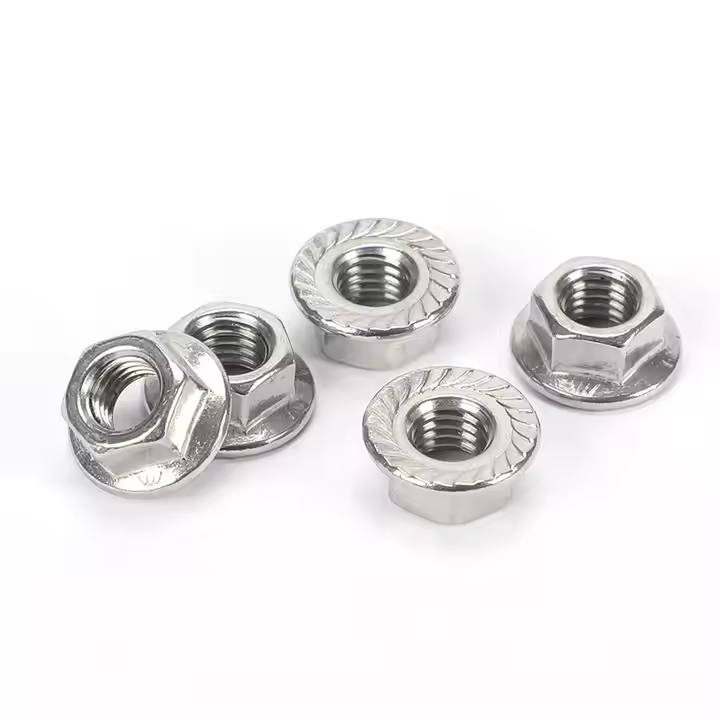

Product Name DIN6923 Equipped with anti slip teeth Hex Flange Nut Material Carbon steel, Stainless steel Surface Finish Yellow zinc, Blackened, Blue and white zinc, Bleached Colour Yellow, Black, Blue White, White Standard Number DIN6923 Grade 4 8 10 A2-70 ...
| Product Name | DIN6923 Equipped with anti slip teeth Hex Flange Nut |
| Material | Carbon steel, Stainless steel |
| Surface Finish | Yellow zinc, Blackened, Blue and white zinc, Bleached |
| Colour | Yellow, Black, Blue White, White |
| Standard Number | DIN6923 |
| Grade | 4 8 10 A2-70 |
| Diameter | M3 M4 M5 M6 M7 M8 M10 M12 M14 M16 M18 M20 |
| Thread form | Coarse thread, Medium thread, Fine thread |
| Place of origin | Hebei, China |
| Brand | Muyi |
| Pack | Box+cardboard carton+pallet |
| The product can be customized | |
| 1. Increase the contact surface and force area: One end of the hexagonal flange nut has a wide flange (i.e. flange surface), which increases the contact area between the nut and the workpiece. According to the principles of mechanics, the larger the force area, the smaller the pressure on the force surface, thereby improving the load-bearing capacity and stability of the nut. 2. Sealing: Due to the hexagonal flange nut having a flange surface fixed on one end of the nut body and a cap fixed on the other end, this design has good sealing performance during use, which can effectively prevent harmful substances such as rainwater, moisture, dust, etc. from entering the nut body, prevent the nut body from rusting, and thus extend its service life. 3. Wide application: Hexagonal flange nuts are widely used in various industrial and civilian fields. For example, they are commonly used in applications such as pipeline connections, stamped parts, and castings that require increased contact surface stability. In addition, hexagonal flange nuts are also used in heavy machinery, automotive engines, and other applications that require high preload force and good anti loosening performance. |
|
| Thread Spec D |
M5 | M6 | M8 | M10 | M12 | M14 | M16 | M20 | ||
| P | flight lead | Coarse thread | 0.8 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2 | 2.5 |
| Fine thread1 | / | / | 1 | 1.25 | 1.5 | 1.5 | 1.5 | 1.5 | ||
| Fine thread2 | / | / | / | -1 | -1.25 | / | / | / | ||
| c | min | 1 | 1.1 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 | 3 | |
| da | min | 5 | 6 | 8 | 10 | 12 | 14 | 16 | 20 | |
| max | 5.75 | 6.75 | 8.75 | 10.8 | 13 | 15.1 | 17.3 | 21.6 | ||
| dc | max | 11.8 | 14.2 | 17.9 | 21.8 | 26 | 29.9 | 34.5 | 42.8 | |
| dw | min | 9.8 | 12.2 | 15.8 | 19.6 | 23.8 | 27.6 | 31.9 | 39.9 | |
| e | min | 8.79 | 11.05 | 14.38 | 16.64 | 20.03 | 23.36 | 26.75 | 32.95 | |
| m | max | 5 | 6 | 8 | 10 | 12 | 14 | 16 | 20 | |
| min | 4.7 | 5.7 | 7.6 | 9.6 | 11.6 | 13.3 | 15.3 | 18.9 | ||
| mw | min | 2.2 | 3.1 | 4.5 | 5.5 | 6.7 | 7.8 | 9 | 11.1 | |
| s | max=nominal | 8 | 10 | 13 | 15 | 18 | 21 | 24 | 30 | |
| min | 7.78 | 9.78 | 12.73 | 14.73 | 17.73 | 20.67 | 23.67 | 29.67 | ||
| r | max | 0.3 | 0.36 | 0.48 | 0.6 | 0.72 | 0.88 | 0.96 | 1.2 | |
