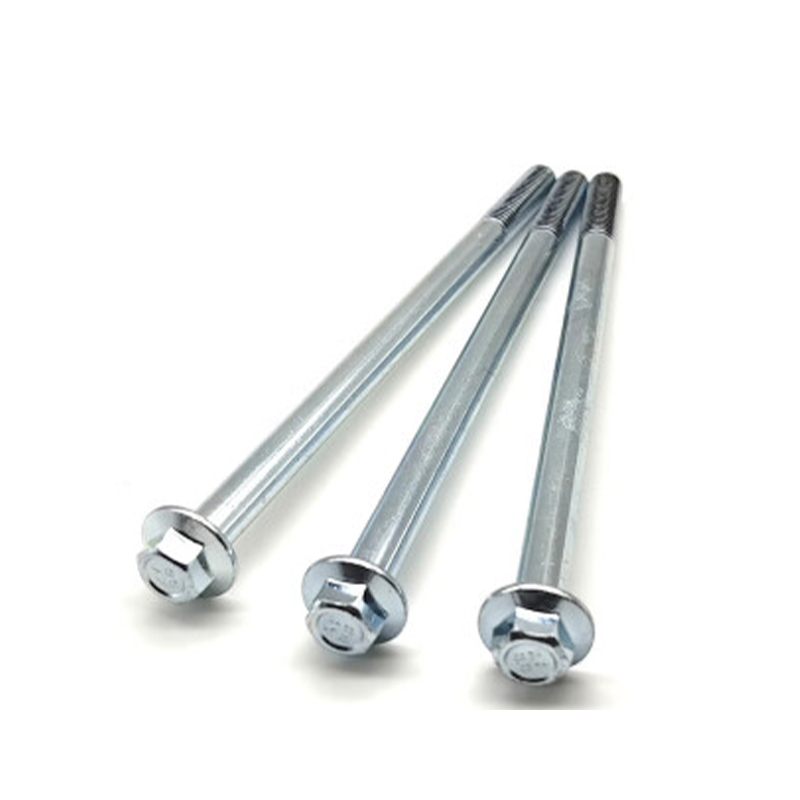

1. Flange screw is a kind of fastener composed of two parts: hexagonal head and flange (the gasket under the hexagonal is fixed together with the hexagonal) and screw (cylinder with external thread), which needs to be matched with the nut for fastening and connecting two parts with through holes.
2. Hexagonal flange bolt is a particularly common industrial equipment used in industry, because it has the characteristics of accurate decoration and strong endurance, it has been widely used, it is widely used in road and railway Bridges, including industrial and civil construction, cranes, excavators and other heavy machinery
| Product Name | DIN6921 Hex Flange Bolts |

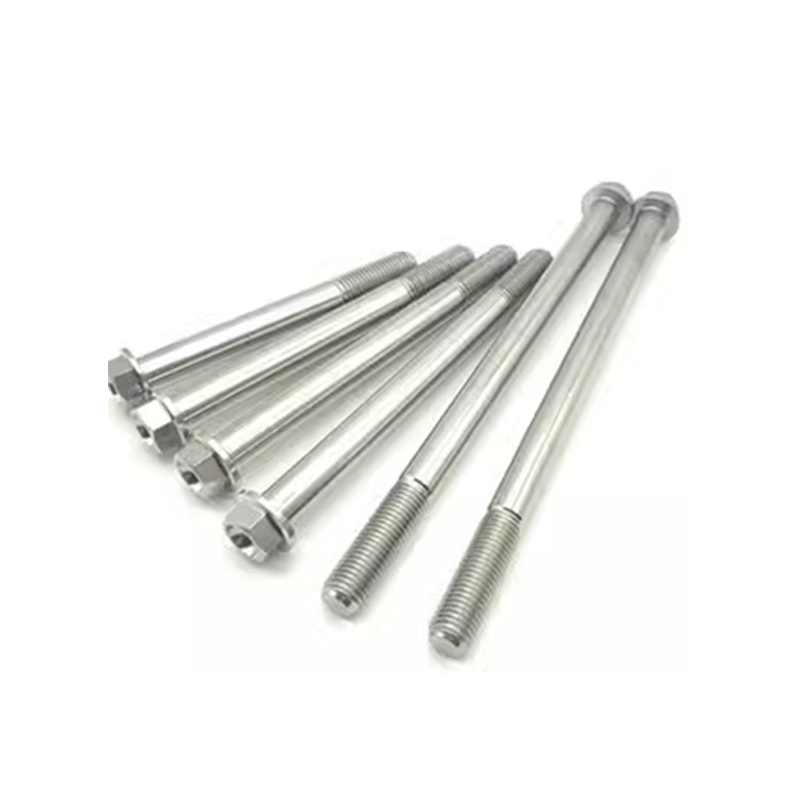

| Material | Carbon steel, Stainless steel |
| Surface Finish | Yellow zinc, Blackened, Blue and white zinc, Bleached |
| Colour | Yellow, Black, Blue White, White |
| Standard Number | DIN6921 |
| Grade | 4.8/6.8/8.8/10.9/12.9 |
| Diameter | M5 M6 M8 M10 M12 M14 M16 M20 |
| Thread form | Coarse thread, Fine thread |
| Place of origin | Hebei, China |
| Brand | Muyi |
| Pack | Box+cardboard carton+pallet |
| The product can be customized | |
| 1. Flange screw is a kind of fastener composed of two parts: hexagonal head and flange (the gasket under the hexagonal is fixed together with the hexagonal) and screw (cylinder with external thread), which needs to be matched with the nut for fastening and connecting two parts with through holes. 2. Hexagonal flange bolt is a particularly common industrial equipment used in industry, because it has the characteristics of accurate decoration and strong endurance, it has been widely used, it is widely used in road and railway Bridges, including industrial and civil construction, cranes, excavators and other heavy machinery |
|

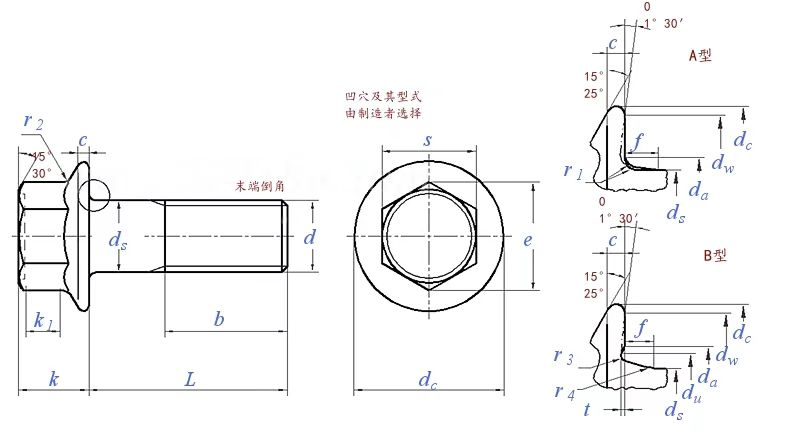

| Thread Spec d |
M5 | M6 | M8 | M10 | M12 | M14 | M16 | M20 | |||
| P | thread pitch | Coarse thread | 0.8 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2 | 2.5 | |
| Fine thread1 | / | / | 1 | 1.25 | 1.5 | 1.5 | 1.5 | 1.5 | |||
| Fine thread2 | / | / | / | 1 | 1.25 | / | / | / | |||
| b | L≤125 | 16 | 18 | 22 | 26 | 30 | 34 | 38 | 46 | ||
| 125＜L≤200 | / | / | 28 | 32 | 36 | 40 | 44 | 52 | |||
| L＞200 | / | / | / | / | / | / | 57 | 65 | |||
| c | min | 1 | 1.1 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 | 3 | ||
| da | A | max | 5.7 | 6.8 | 9.2 | 11.2 | 13.7 | 15.7 | 17.7 | 22.4 | |
| B | max | 6.2 | 7.4 | 10 | 12.6 | 15.2 | 17.7 | 20.7 | 25.7 | ||
| dc | max | 11.8 | 14.2 | 18 | 22.3 | 26.6 | 30.5 | 35 | 43 | ||
| ds | max | 5 | 6 | 8 | 10 | 12 | 14 | 16 | 20 | ||
| min | 4.82 | 5.82 | 7.78 | 9.78 | 11.73 | 13.73 | 15.73 | 19.67 | |||
| du | max | 5.5 | 6.6 | 9 | 11 | 13.5 | 15.5 | 17.5 | 22 | ||
| dw | min | 9.8 | 12.2 | 15.8 | 19.6 | 23.8 | 27.6 | 31.9 | 39.9 | ||
| e | min | 8.71 | 10.95 | 14.26 | 16.5 | 17.62 | 19.86 | 23.15 | 29.87 | ||
| f | max | 1.4 | 2 | 2 | 2 | 3 | 3 | 3 | 4 | ||
| k | max | 5.4 | 6.6 | 8.1 | 9.2 | 11.5 | 12.8 | 14.4 | 17.1 | ||
| k1 | min | 2 | 2.5 | 3.2 | 3.6 | 4.6 | 5.1 | 5.8 | 6.8 | ||
| r1 | min | 0.25 | 0.4 | 0.4 | 0.4 | 0.6 | 0.6 | 0.6 | 0.8 | ||
| r2 | max | 0.3 | 0.4 | 0.5 | 0.6 | 0.7 | 0.9 | 1 | 1.2 | ||
| r3 | min | 0.1 | 0.1 | 0.15 | 0.2 | 0.25 | 0.3 | 0.35 | 0.4 | ||
| r4 | ≈ | 3 | 3.4 | 4.3 | 4.3 | 6.4 | 6.4 | 6.4 | 8.5 | ||
| s | max = nominal | 8 | 10 | 13 | 15 | 16 | 18 | 21 | 27 | ||
| min | 7.78 | 9.78 | 12.73 | 14.73 | 15.73 | 17.73 | 20.67 | 26.67 | |||
| t | max | 0.15 | 0.2 | 0.25 | 0.3 | 0.35 | 0.45 | 0.5 | 0.65 | ||
| min | 0.05 | 0.05 | 0.1 | 0.15 | 0.15 | 0.2 | 0.25 | 0.3 | |||
