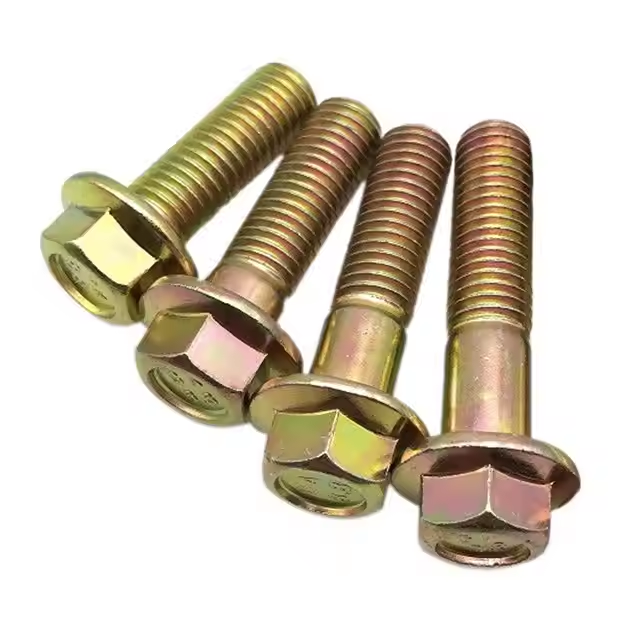

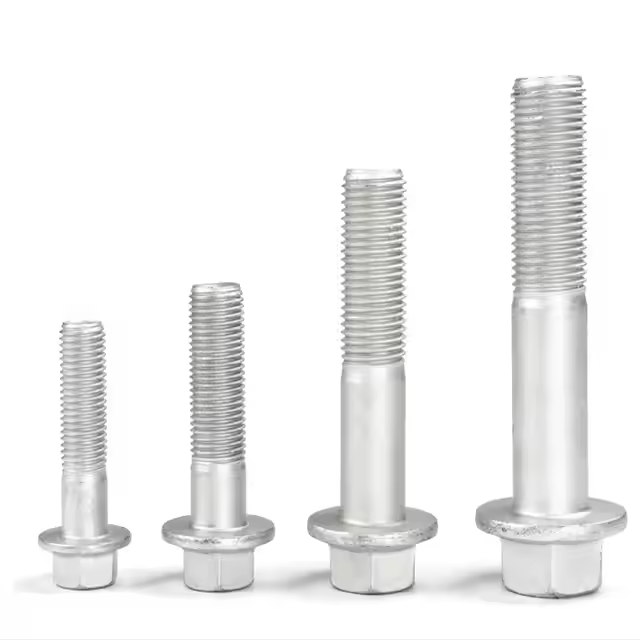

DIN6921 flange bolts are widely used in various mechanical equipment and engineering structures, especially in application scenarios facing high tension or strong shear working conditions. Its design features include high strength, high precision, corrosion resistance, and mature technology, ensuring the safety and quality of the connection.
| Product Name | DIN6921 Hex Flange Bolt Half thread |
| Material | Carbon steel, stainless steel |
| Surface Finish | Blue white zinc,Natural color |
| Colour | Blue white, White |
| Standard Number | DIN6921 |
| Grade | 8.8 |
| Diameter | M6 M8 M10 M12 M14 |
| Length | 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100 |
| Thread form | Coarse thread |
| Thread | Half thread |
| Place of origin | Hebei, China |
| Brand | Muyi |
| Pack | Box+cardboard carton+pallet |
| The product can be customized | |
| DIN6921 flange bolts are widely used in various mechanical equipment and engineering structures, especially in application scenarios facing high tension or strong shear working conditions. Its design features include high strength, high precision, corrosion resistance, and mature technology, ensuring the safety and quality of the connection. | |

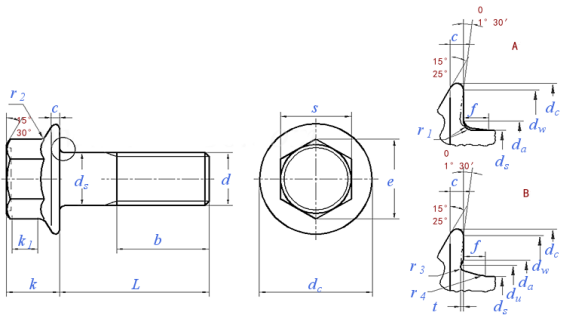

| P | Flight lead | Coarse thread | 1 | 1.25 | 1.5 | 1.75 | 2 |
| Fine thread1 | / | 1 | 1.25 | 1.5 | 1.5 | ||
| Fine thread2 | / | / | 1 | 1.25 | / | ||
| b | L≤125 | 18 | 22 | 26 | 30 | 34 | |
| 125<L≤200 | / | 28 | 32 | 36 | 40 | ||
| L>200 | / | / | / | / | / | ||
| c | min | 1.1 | 1.2 | 1.5 | 1.8 | 2.1 | |
| da | A | max | 6.8 | 9.2 | 11.2 | 13.7 | 15.7 |
| B | max | 7.4 | 10 | 12.6 | 15.2 | 17.7 | |
| dc | max | 14.2 | 18 | 22.3 | 26.6 | 30.5 | |
| ds | max | 6 | 8 | 10 | 12 | 14 | |
| min | 5.82 | 7.78 | 9.78 | 11.73 | 13.73 | ||
| du | max | 6.6 | 9 | 11 | 13.5 | 15.5 | |
| dw | min | 12.2 | 15.8 | 19.6 | 23.8 | 27.6 | |
| e | min | 10.95 | 14.26 | 16.5 | 17.62 | 19.86 | |
| f | max | 2 | 2 | 2 | 3 | 3 | |
| k | max | 6.6 | 8.1 | 9.2 | 11.5 | 12.8 | |
| k1 | min | 2.5 | 3.2 | 3.6 | 4.6 | 5.1 | |
| r1 | min | 0.4 | 0.4 | 0.4 | 0.6 | 0.6 | |
| r2 | max | 0.4 | 0.5 | 0.6 | 0.7 | 0.9 | |
| r3 | min | 0.1 | 0.15 | 0.2 | 0.25 | 0.3 | |
| r4 | ≈ | 3.4 | 4.3 | 4.3 | 6.4 | 6.4 | |
| s | max=nominal | 10 | 13 | 15 | 16 | 18 | |
| min | 9.78 | 12.73 | 14.73 | 15.73 | 17.73 | ||
| t | max | 0.2 | 0.25 | 0.3 | 0.35 | 0.45 | |
| min | 0.05 | 0.1 | 0.15 | 0.15 | 0.2 | ||
