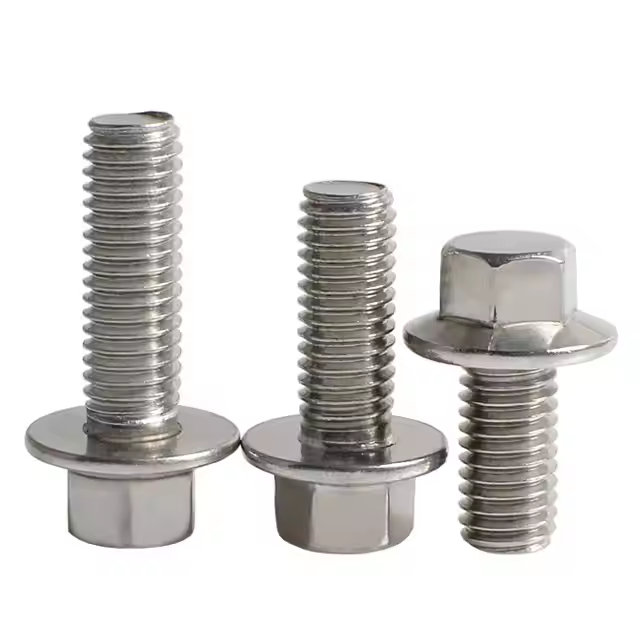

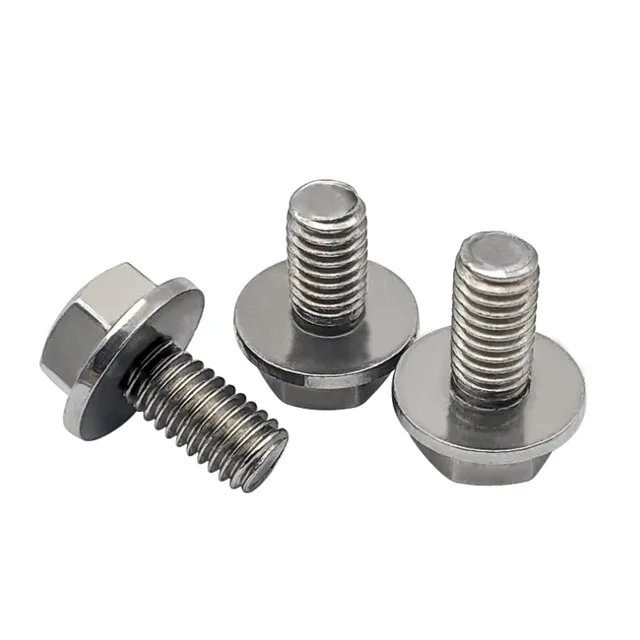

The head of a hex flange bolt consists of two parts: the hexagonal head and the flange face. Its “support area to stress area ratio” is larger than that of a regular hexagonal head bolt, so this type of bolt can withstand higher pre tightening forces and has better anti loosening performance. Therefore, it is widely used in products such as automotive engines and heavy machinery. Hexagonal head bolts with holes and grooves can be mechanically locked to prevent loosening during use.
| Product Name | DIN6921 Hex Flange Bolt Full thread |
| Material | Carbon steel |
| Surface Finish | Blue white zinc, Blackened, Natural color |
| Colour | Blue white, Black, White |
| Standard Number | DIN6921 |
| Grade | 8.8 |
| Diameter | M6 M8 M10 M12 M14 |
| Length | 8 10 12 16 20 25 30 35 40 |
| Thread form | Coarse thread |
| Thread | Full thread |
| Place of origin | Hebei, China |
| Brand | Muyi |
| Pack | Box+cardboard carton+pallet |
| The product can be customized | |
| The head of a hex flange bolt consists of two parts: the hexagonal head and the flange face. Its "support area to stress area ratio" is larger than that of a regular hexagonal head bolt, so this type of bolt can withstand higher pre tightening forces and has better anti loosening performance. Therefore, it is widely used in products such as automotive engines and heavy machinery. Hexagonal head bolts with holes and grooves can be mechanically locked to prevent loosening during use. | |
| P | Flight lead | Coarse thread | 1 | 1.25 | 1.5 | 1.75 | 2 |
| Fine thread1 | / | 1 | 1.25 | 1.5 | 1.5 | ||
| Fine thread2 | / | / | 1 | 1.25 | / | ||
| b | L≤125 | 18 | 22 | 26 | 30 | 34 | |
| 125<L≤200 | / | 28 | 32 | 36 | 40 | ||
| L>200 | / | / | / | / | / | ||
| c | min | 1.1 | 1.2 | 1.5 | 1.8 | 2.1 | |
| da | A | max | 6.8 | 9.2 | 11.2 | 13.7 | 15.7 |
| B | max | 7.4 | 10 | 12.6 | 15.2 | 17.7 | |
| dc | max | 14.2 | 18 | 22.3 | 26.6 | 30.5 | |
| ds | max | 6 | 8 | 10 | 12 | 14 | |
| min | 5.82 | 7.78 | 9.78 | 11.73 | 13.73 | ||
| du | max | 6.6 | 9 | 11 | 13.5 | 15.5 | |
| dw | min | 12.2 | 15.8 | 19.6 | 23.8 | 27.6 | |
| e | min | 10.95 | 14.26 | 16.5 | 17.62 | 19.86 | |
| f | max | 2 | 2 | 2 | 3 | 3 | |
| k | max | 6.6 | 8.1 | 9.2 | 11.5 | 12.8 | |
| k1 | min | 2.5 | 3.2 | 3.6 | 4.6 | 5.1 | |
| r1 | min | 0.4 | 0.4 | 0.4 | 0.6 | 0.6 | |
| r2 | max | 0.4 | 0.5 | 0.6 | 0.7 | 0.9 | |
| r3 | min | 0.1 | 0.15 | 0.2 | 0.25 | 0.3 | |
| r4 | ≈ | 3.4 | 4.3 | 4.3 | 6.4 | 6.4 | |
| s | max=nominal | 10 | 13 | 15 | 16 | 18 | |
| min | 9.78 | 12.73 | 14.73 | 15.73 | 17.73 | ||
| t | max | 0.2 | 0.25 | 0.3 | 0.35 | 0.45 | |
| min | 0.05 | 0.1 | 0.15 | 0.15 | 0.2 | ||
