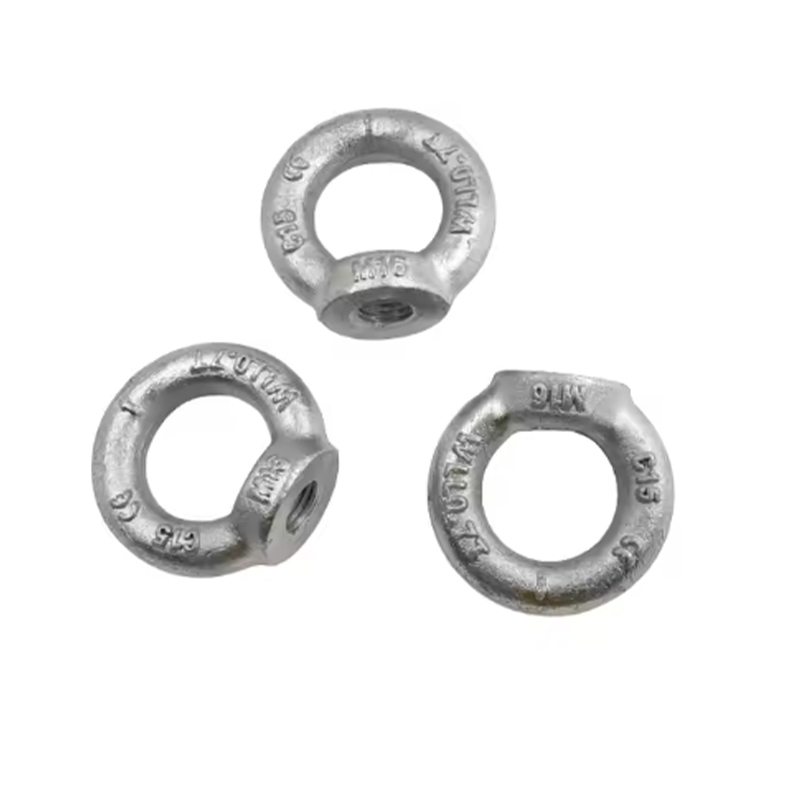

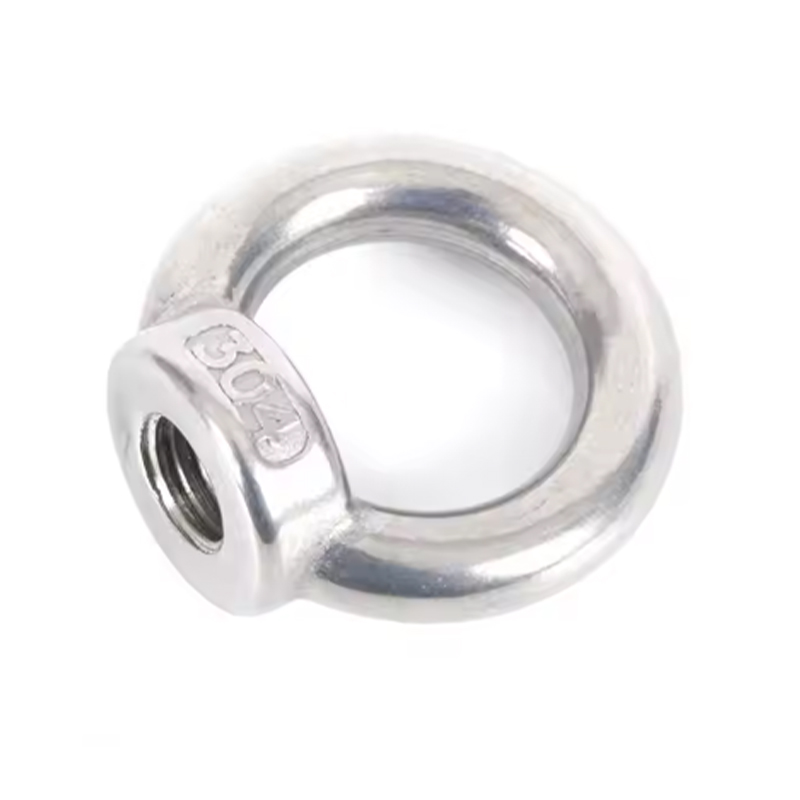

1. The eye lifting nut is a part that is used to tighten the nut together with the bolt or screw. It is an essential component for all manufacturing machinery.There is a thread under the nut, which can be drilled according to its different specifications and fixed with the screw.Eye lifting nuts are often used in conjunction with external threaded columns to lift various equipment, such as molds, chassis, motors, etc.
2. Wide application: Eye lifting nuts are widely used in many fields to provide safe and reliable connection, such as industrial lifting, aerospace, construction engineering and steel structure.
| Product Name | DIN582 Eye Lifting Nuts |
| Material | Carbon steel, Stainless steel |
| Surface Finish | Blue and white zinc, Bleached |
| Colour | Blue White, White |
| Standard Number | DIN582 |
| Grade | 4.8/5.8/8.8/10.9/12.9/A2-70 |
| Diameter | M6 M8 M10 M12 M14 M16 M18 M20......M100*6 |
| Thread form | Coarse thread, Fine thread |
| Place of origin | Hebei, China |
| Brand | Muyi |
| Pack | Box+cardboard carton+pallet |
| The product can be customized | |
| 1. The eye lifting nut is a part that is used to tighten the nut together with the bolt or screw. It is an essential component for all manufacturing machinery.There is a thread under the nut, which can be drilled according to its different specifications and fixed with the screw.Eye lifting nuts are often used in conjunction with external threaded columns to lift various equipment, such as molds, chassis, motors, etc. 2. Wide application: Eye lifting nuts are widely used in many fields to provide safe and reliable connection, such as industrial lifting, aerospace, construction engineering and steel structure. |
|

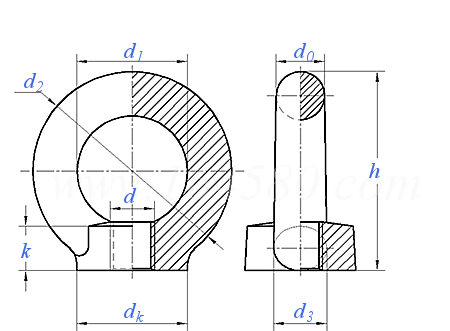

| Thread Spec D |
M6 | M8 | M10 | M12 | M14 | M16 | M18 | M20 | M22 | M24 | M27 | M30 | M33 | ||
| dk | Nominal | 20 | 20 | 25 | 30 | 35 | 35 | 40 | 40 | 50 | 50 | 65 | 65 | 75 | |
| min | 19.5 | 19.5 | 24.5 | 29.5 | 34.5 | 34.5 | 39.5 | 39.5 | 49.4 | 49.4 | 64.3 | 64.3 | 74.3 | ||
| max | 20.9 | 20.9 | 25.9 | 30.9 | 36.1 | 36.1 | 41.1 | 41.1 | 51.2 | 51.2 | 66.3 | 66.3 | 76.5 | ||
| d2 | Nominal | 36 | 36 | 45 | 54 | 63 | 63 | 72 | 72 | 90 | 90 | 108 | 108 | 126 | |
| min | 35.5 | 35.5 | 44.5 | 53.5 | 62.5 | 62.5 | 71.5 | 71.5 | 89.4 | 89.4 | 107.3 | 107.3 | 125.2 | ||
| max | 37.1 | 37.1 | 46.1 | 55.1 | 64.1 | 64.1 | 73.1 | 73.1 | 91.2 | 91.2 | 109.5 | 109.5 | 127.7 | ||
| d1 | Nominal | 20 | 20 | 25 | 30 | 35 | 35 | 40 | 40 | 50 | 50 | 60 | 60 | 70 | |
| min | 19.1 | 19.1 | 24.1 | 29.1 | 33.9 | 33.9 | 38.9 | 38.9 | 48.8 | 48.8 | 58.7 | 58.7 | 68.5 | ||
| max | 20.5 | 20.5 | 25.5 | 30.5 | 35.5 | 35.5 | 40.5 | 40.5 | 50.6 | 50.6 | 60.7 | 60.7 | 70.7 | ||
| k | Nominal | 8.5 | 8.5 | 10 | 11 | 13 | 13 | 16 | 16 | 20 | 20 | 25 | 25 | 30 | |
| min | 8 | 8 | 9.5 | 10.5 | 12.5 | 12.5 | 15.5 | 15.5 | 19.5 | 19.5 | 24.4 | 24.4 | 29.3 | ||
| max | 9.4 | 9.4 | 10.9 | 11.9 | 13.9 | 13.9 | 16.9 | 16.9 | 21.1 | 21.1 | 26.2 | 26.2 | 31.3 | ||
| h | Nominal | 36 | 36 | 45 | 53 | 62 | 62 | 71 | 71 | 90 | 90 | 109 | 109 | 128 | |
| min | 35.5 | 35.5 | 44.5 | 52.5 | 61.5 | 61.5 | 70.5 | 70.5 | 89.4 | 89.4 | 108.3 | 108.3 | 127.2 | ||
| max | 37.1 | 37.1 | 46.1 | 54.1 | 63.1 | 63.1 | 72.1 | 72.1 | 91.2 | 91.2 | 110.5 | 110.5 | 129.7 | ||
| d0 | Nominal | 8 | 8 | 10 | 12 | 14 | 14 | 16 | 16 | 20 | 20 | 24 | 24 | 28 | |
| min | 7.5 | 7.5 | 9.5 | 11.5 | 13.5 | 13.5 | 15.5 | 15.5 | 19.5 | 19.5 | 23.4 | 23.4 | 27.3 | ||
| max | 8.9 | 8.9 | 10.9 | 12.9 | 14.9 | 14.9 | 16.9 | 16.9 | 21.1 | 21.1 | 25.2 | 25.2 | 29.3 | ||
| d3 | Nominal | 10 | 10 | 12 | 14 | 16 | 16 | 19 | 19 | 24 | 24 | 28 | 28 | 32 | |
| min | 9.5 | 9.5 | 11.5 | 13.5 | 15.5 | 15.5 | 18.5 | 18.5 | 23.5 | 23.5 | 27.4 | 27.4 | 31.3 | ||
| max | 10.9 | 10.9 | 12.9 | 14.9 | 16.9 | 16.9 | 19.9 | 19.9 | 25.1 | 25.1 | 29.2 | 29.2 | 33.3 | ||
| Thread Spec D |
M36 | M39 | M42 | M45 | M48 | M52 | M56 | M60 | M64 | M72×6 | M80×6 | M100×6 | ||
| dk | Nominal | 75 | 85 | 85 | 100 | 100 | 110 | 110 | 120 | 120 | 150 | 170 | 190 | |
| min | 74.3 | 84.3 | 84.3 | 99.2 | 99.2 | 108.9 | 108.9 | 118.9 | 118.9 | 148.8 | 168.5 | 188.5 | ||
| max | 76.5 | 86.5 | 86.5 | 101.7 | 101.7 | 112.1 | 112.1 | 122.1 | 122.1 | 152.4 | 173 | 193 | ||
| d2 | Nominal | 126 | 144 | 144 | 166 | 166 | 184 | 184 | 206 | 206 | 260 | 296 | 330 | |
| min | 125.2 | 143.2 | 143.2 | 164.9 | 164.9 | 182.8 | 182.8 | 204.8 | 204.8 | 258.5 | 294.3 | 328.3 | ||
| max | 127.7 | 145.7 | 145.7 | 168.1 | 168.1 | 186.4 | 186.4 | 208.4 | 208.4 | 263 | 299.3 | 333.3 | ||
| d1 | Nominal | 70 | 80 | 80 | 90 | 90 | 100 | 100 | 110 | 110 | 140 | 160 | 180 | |
| min | 68.5 | 78.5 | 78.5 | 88.3 | 88.3 | 98.1 | 98.1 | 107.9 | 107.9 | 137.6 | 157.3 | 177 | ||
| max | 70.7 | 80.7 | 80.7 | 90.8 | 90.8 | 100.9 | 100.9 | 111.1 | 111.1 | 141.2 | 161.3 | 181.5 | ||
| k | Nominal | 30 | 35 | 35 | 40 | 40 | 45 | 45 | 50 | 50 | 60 | 70 | 80 | |
| min | 29.3 | 34.3 | 34.3 | 39.2 | 39.2 | 44.1 | 44.1 | 49.1 | 49.1 | 58.9 | 68.8 | 78.8 | ||
| max | 31.3 | 36.5 | 36.5 | 41.7 | 41.7 | 46.9 | 46.9 | 51.9 | 51.9 | 62.1 | 72.4 | 82.4 | ||
| h | Nominal | 128 | 147 | 147 | 168 | 168 | 187 | 187 | 208 | 208 | 260 | 298 | 330 | |
| min | 127.2 | 146.2 | 146.2 | 166.9 | 166.9 | 185.8 | 185.8 | 206.8 | 206.8 | 258.5 | 296.3 | 328.3 | ||
| max | 129.7 | 148.7 | 148.7 | 170.1 | 170.1 | 189.4 | 189.4 | 210.4 | 210.4 | 263 | 301.3 | 333.3 | ||
| d0 | Nominal | 28 | 32 | 32 | 38 | 38 | 42 | 42 | 48 | 48 | 60 | 68 | 75 | |
| min | 27.3 | 31.3 | 31.3 | 37.2 | 37.2 | 41.1 | 41.1 | 47.1 | 47.1 | 58.9 | 66.8 | 73.8 | ||
| max | 29.3 | 33.3 | 33.3 | 39.7 | 39.7 | 43.9 | 43.9 | 49.9 | 49.9 | 62.1 | 70.4 | 77.4 | ||
| d3 | Nominal | 32 | 38 | 38 | 46 | 46 | 50 | 50 | 58 | 58 | 72 | 80 | 88 | |
| min | 31.3 | 37.3 | 37.3 | 45.2 | 45.2 | 49.1 | 49.1 | 57.1 | 57.1 | 70.9 | 78.8 | 86.8 | ||
| max | 33.3 | 39.5 | 39.5 | 47.7 | 47.7 | 51.9 | 51.9 | 59.9 | 59.9 | 74.1 | 82.4 | 90.4 | ||
