1. Foundation bolts are screw rods used to fasten equipment to concrete foundations. When installed on a concrete foundation, the J-shaped or L-shaped end of the bolt is buried in the concrete.
2. Foundation bolts can be divided into fixed foundation bolts, movable foundation bolts, expansion foundation bolts and adhesive anchor bolts. According to the different shapes, they can be divided into: L-shaped embedded bolts, 9-shaped embedded bolts, U-shaped embedded bolts, welded embedded bolts and bottom plate embedded bolts.
3. Application: Foundation bolts are generally used in infrastructure such as railways, highways, power companies, factories, mines, bridges, tower cranes, large-span steel structures and large buildings. They have strong stability.

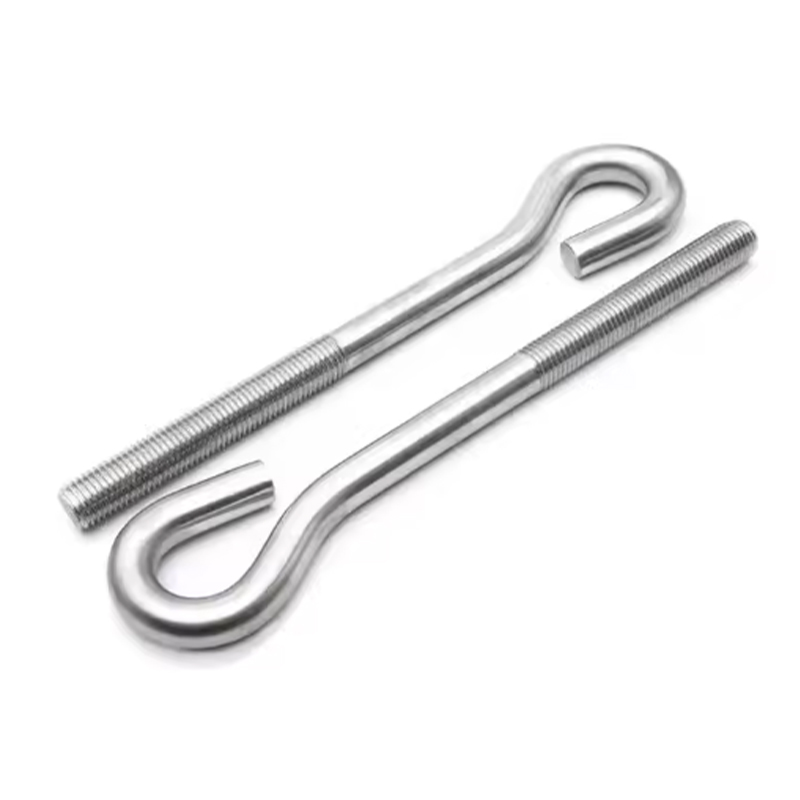

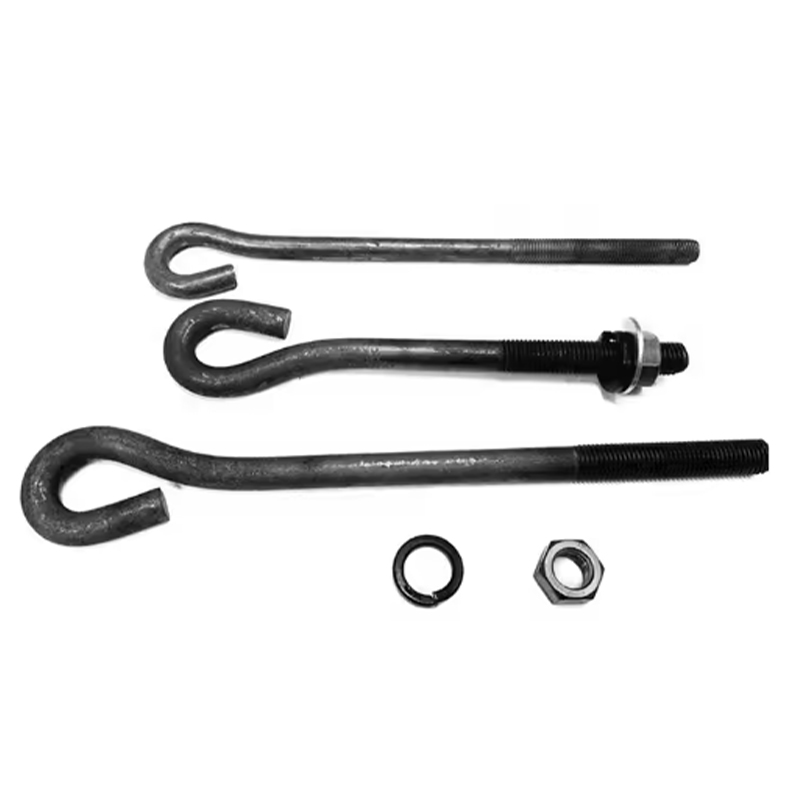

| Product Name | DIN529(Type A）Foundation Bolt |
| Material | Carbon steel, Stainless steel |
| Surface Finish | Blackened, Bleached |
| Colour | Black, White |
| Standard Number | DIN529 (A) |
| Grade | 4 8 10 A2-70 |
| Diameter | M8 M10 M12 M16 M20 M24 M30......M72*6 |
| Thread form | Coarse thread, Fine thread |
| Place of origin | Hebei, China |
| Brand | Muyi |
| Pack | Box+cardboard carton+pallet |
| The product can be customized | |
| 1. Foundation bolts are screw rods used to fasten equipment to concrete foundations. When installed on a concrete foundation, the J-shaped or L-shaped end of the bolt is buried in the concrete. 2. Foundation bolts can be divided into fixed foundation bolts, movable foundation bolts, expansion foundation bolts and adhesive anchor bolts. According to the different shapes, they can be divided into: L-shaped embedded bolts, 9-shaped embedded bolts, U-shaped embedded bolts, welded embedded bolts and bottom plate embedded bolts. 3. Application: Foundation bolts are generally used in infrastructure such as railways, highways, power companies, factories, mines, bridges, tower cranes, large-span steel structures and large buildings. They have strong stability. |
|

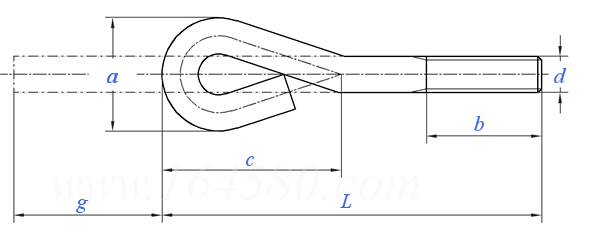

| Thread Spec d |
M8 | M10 | M12 | M16 | M20 | M24 | M30 | M36 | M42 | M48 | M56 | M64 | M72×6 | ||
| a | Nominal | 24 | 30 | 36 | 48 | 60 | 75 | 95 | 115 | 135 | 155 | 180 | 200 | 240 | |
| max | 27 | 33 | 39 | 51 | 63 | 78 | 98 | 118 | 138 | 158 | 183 | 203 | 243 | ||
| min | 21 | 27 | 33 | 45 | 57 | 72 | 92 | 112 | 132 | 152 | 177 | 197 | 237 | ||
| c | Nominal | 45 | 55 | 65 | 85 | 105 | 125 | 155 | 190 | 220 | 250 | 290 | 335 | 370 | |
| max | 50 | 60 | 70 | 90 | 110 | 130 | 160 | 195 | 225 | 255 | 295 | 340 | 375 | ||
| min | 40 | 50 | 60 | 80 | 100 | 120 | 150 | 185 | 215 | 245 | 285 | 330 | 365 | ||
| g | ≈ | 30 | 38 | 45 | 60 | 75 | 90 | 115 | 135 | 155 | 180 | 210 | 235 | 260 | |
| b | min=nominal | 20 | 25 | 30 | 40 | 50 | 60 | 75 | 90 | 105 | 120 | 140 | 160 | 180 | |
| max | 22.5 | 28 | 33.5 | 44 | 55 | 66 | 82 | 98 | 114 | 130 | 151 | 172 | 192 | ||
