Surface treatment: In order to improve the corrosion resistance, the joint bolts can adopt a variety of surface treatment methods, such as hot-dip galvanizing, infiltration plating, white plating, color plating, etc. In addition, high-strength bolts are usually treated with boiled black blue to enhance their appearance and corrosion resistance.

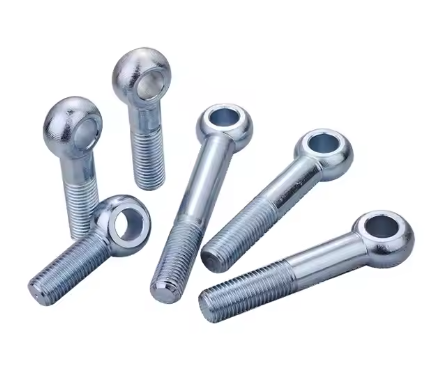

| Product Name | DIN444 Eye Bolts |
| Material | Carbon steel, Stainless steel |

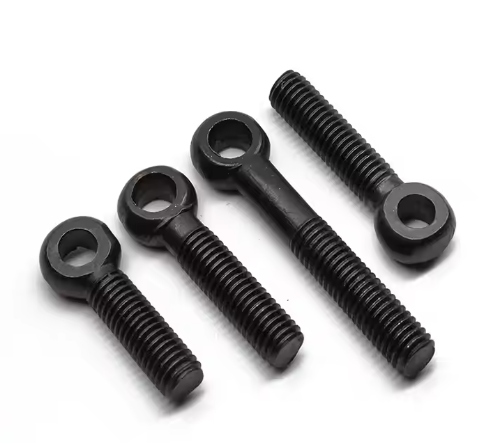

| Surface Finish | Yellow zinc, Blackened, Blue and white zinc, Bleached |
| Colour | Yellow, Black, Blue White, White |
| Standard Number | DIN444 |
| Grade | 4 8 10 A2-70 |
| Diameter | M5 M6 M8 M10 M12 M16 M20 M24 M30 M36 M39 |
| Thread form | Coarse thread, Fine thread |
| Place of origin | Hebei, China |
| Brand | Muyi |
| Pack | Box+cardboard carton+pallet |
| The product can be customized | |
| 1. Surface treatment: In order to improve the corrosion resistance, the joint bolts can adopt a variety of surface treatment methods, such as hot-dip galvanizing, infiltration plating, white plating, color plating, etc. In addition, high-strength bolts are usually treated with boiled black blue to enhance their appearance and corrosion resistance. 2.Sealing problem: In valves and other equipment, the sealing performance of the eye bolt is very important. Any poor sealing may cause the valve to leak, drip, etc., so the quality of the eye bolt must be ensured to ensure the safety and reliability of the overall system. 3. Wide application: Because the use of the eye bolt is convenient and quick, and it is used with the matching nut to connect and tighten, it has a wide range of applications. Eye bolts are widely used in low-temperature and high-pressure valves, pressure pipelines, fluid engineering, oil drilling equipment, oilfield equipment and other fields. They are often used in occasions or tools for disassembly and connection, such as the valve industry, folding bicycles, and baby carriages. |
|

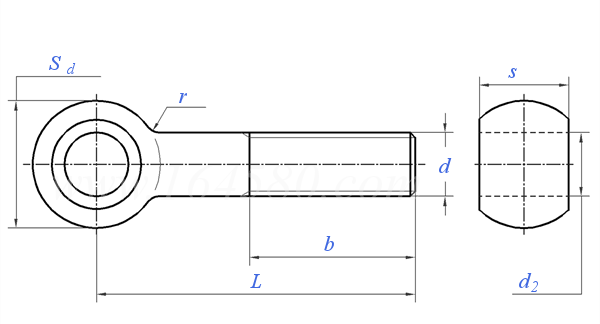

| Thread Spec d |
M5 | M6 | M8 | M10 | M12 | M16 | M20 | M24 | (M27) | ||
| P | Pitch | 0.8 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2.5 | 3 | 3 | |
| b | L≤125 | 16 | 18 | 22 | 26 | 30 | 38 | 46 | 54 | 60 | |
| 125＜L≤200 | - | - | 28 | 32 | 36 | 44 | 52 | 60 | 66 | ||
| L＞200 | - | - | - | - | 49 | 57 | 65 | 73 | 79 | ||
| d2 | min=nominal | 5 | 6 | 8 | 10 | 12 | 16 | 18 | 22 | 24 ② | |
| max | 5.03 | 6.03 | 8.036 | 10.036 | 12.043 | 16.043 | 18.043 | 22.052 | 24.052 | ||
| Sd | max | 12 | 14 | 18 | 20 | 25 | 32 | 40 | 45 | 50 | |
| Type A | min | 10.9 | 12.9 | 16.9 | 18.7 | 23.7 | 30.4 | 38.4 | 43.4 | 48.4 | |
| Type B and C | min | 11.57 | 13.57 | 17.57 | 19.48 | 24.48 | 31.38 | 39.38 | 44.38 | 49.38 | |
| r | Nominal | 2.5 | 4 | 4 | 4 | 6 | 6 | 6 | 10 | 10 | |
| max | 3.75 | 6 | 6 | 6 | 9 | 9 | 9 | 15 | 15 | ||
| min | 1.875 | 3 | 3 | 3 | 4.5 | 4.5 | 4.5 | 7.5 | 7.5 | ||
| e | Type A | max | 8 | 9 | 11 | 14 | 17 | 19 | 24 | 28 | 30 |
| min | 7.52 | 8.52 | 10.3 | 13.3 | 16.3 | 18.16 | 23.16 | 27.16 | 29.16 | ||
| Type B and C | max | 6 | 7 | 9 | 12 | 14 | 17 | 22 | 25 | 27 | |
| min | 5.88 | 6.85 | 8.85 | 11.82 | 13.82 | 16.82 | 21.79 | 24.79 | 26.79 | ||
| Thread Spec D |
(M27) | M30 | M30 | (M33) | M36 | M36 | (M39) | (M39) | ||
| P | Pitch | 3 | 3.5 | 3.5 | 3.5 | 4 | 4 | 4 | 4 | |
| b | L≤125 | 60 | 66 | 66 | - | - | - | - | - | |
| 125＜L≤200 | 66 | 72 | 72 | 78 | 84 | 84 | 90 | 90 | ||
| L＞200 | 79 | 85 | 85 | 91 | 97 | 97 | 103 | 103 | ||
| d2 | min=nominal | 25 | 27 ② | 28 | 30 | 32 | 33 ② | 35 | 36 ② | |
| max | 25.052 | 27.052 | 28.052 | 30.052 | 32.062 | 33.062 | 35.062 | 36.062 | ||
| Sd | max | 50 | 55 | 55 | 60 | 65 | 65 | 70 | 70 | |
| Type A | min | 48.4 | 53.1 | 53.1 | 58.1 | 63.1 | 63.1 | 68.1 | 68.1 | |
| Type B and C | min | 49.38 | 54.26 | 54.26 | 59.26 | 64.26 | 64.26 | 69.26 | 69.26 | |
| r | Nominal | 10 | 10 | 10 | 16 | 16 | 16 | 16 | 16 | |
| max | 15 | 15 | 15 | 22.4 | 22.4 | 22.4 | 22.4 | 22.4 | ||
| min | 7.5 | 7.5 | 7.5 | 12.8 | 12.8 | 12.8 | 12.8 | 12.8 | ||
| e | Type A | max | 30 | 34 | 34 | 38 | 41 | 41 | 46 | 46 |
| min | 29.16 | 33 | 33 | 37 | 40 | 40 | 45 | 45 | ||
| Type B and C | max | 27 | 30 | 30 | 34 | 38 | 38 | 41 | 41 | |
| min | 26.79 | 29.79 | 29.79 | 33.75 | 37.75 | 37.75 | 40.75 | 40.75 | ||
1.DIN6923 hexagon flange nut and general hexagon nut compared with the size and thread specifications are basically the same, but more than the hexagon nut with one ring flange, equivalent to the washer and nut are integrated, and there is a ring of non-slip tooth grain on the flange surface, also known as tooth flange nut. 2. Widely used : hexagon flange nuts mainly play a role in increasing the contact surface with the workpiece, mostly used in pipelines, fasteners and some stamping parts and casting parts. The flange face of DIN6923 flange nut itself has the function of anti-slip and stop, and it does not need to add flat pad and spring pad when assembling, which is more convenient to use
1.The head of the bolt is spherical with holes, the spherical surface is smooth, the installation of the Eye Bolts is relatively simple, and it is often used for the occasion of opening and disassembling or the tooling assembly.The thread precision of the Eye Bolts is high, which can improve the quality of the whole workpiece as an accessory. 2.Eye Bolts are widely used in: low temperature and high pressure valves, pressure pipelines, fluid engineering, oil drilling and production equipment, oilfield equipment and other fields, often in the disconnecting occasions or tools such as the valve industry, folding bicycles, strollers are used, because the use of Eye Bolts is convenient and fast, and the use of matching nuts plays the role of connection fastening, a wide range of applications.
