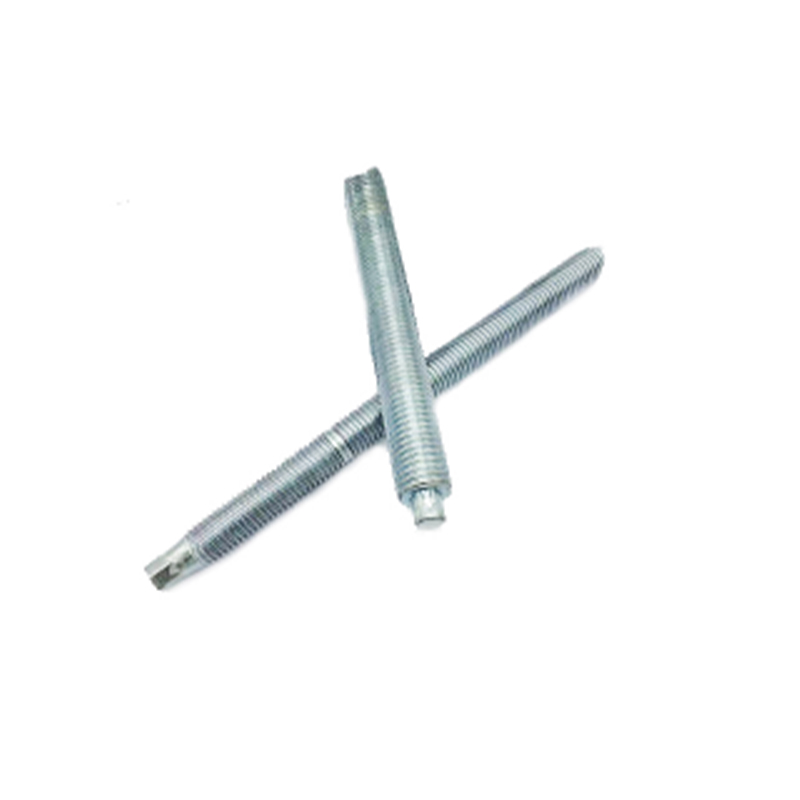

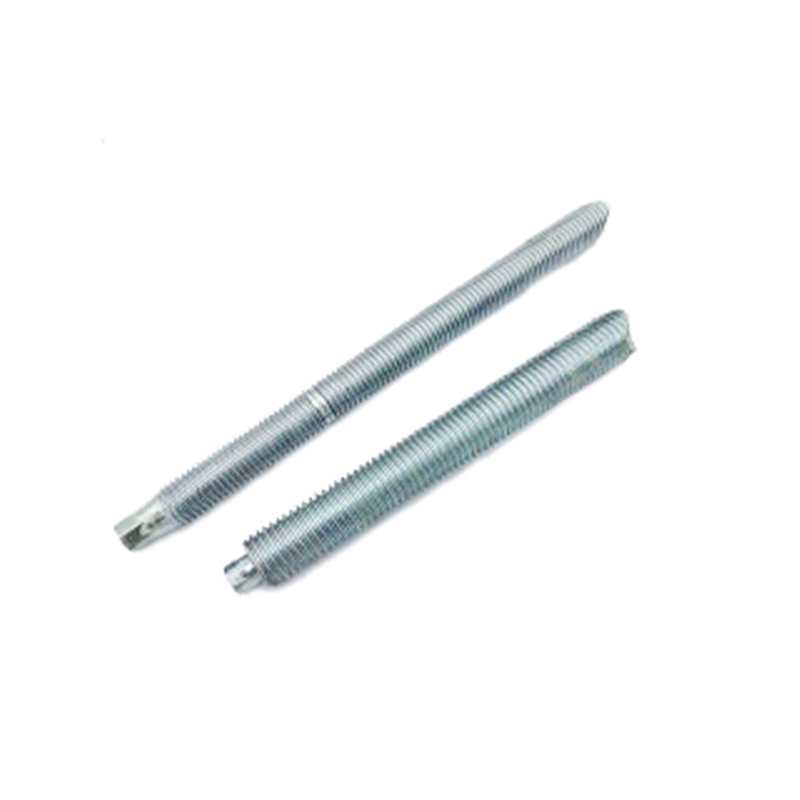

1. Fixed function: Chemical anchor bolts are mainly used for installing and fixing various components, such as post embedded parts in curtain wall and marble dry hanging construction, equipment installation, bridge guardrails, highway and building reinforcement and renovation, etc. It uses a special chemical adhesive to bond and fix the screw in the drilled hole of the concrete substrate, achieving anchoring of the fixed parts
2. Reinforcement function: In building reinforcement engineering, chemical anchor bolts are commonly used to improve the bearing capacity and stability of components. It can be used in conjunction with a concrete base to firmly fix the screw in the borehole through chemical adhesives, thereby enhancing the overall performance of the structure
3. Easy installation: The installation process of chemical anchor bolts is relatively fast, with rapid solidification and saving construction time. It does not require pre embedding and can be installed at any time during the construction process, suitable for various complex construction environments
| Product Name | chemical anchor bolt |
| Material | Carbon steel, Stainless steel |
| Surface Finish | White zinc, blue white zinc |
| Colour | White, Blue White |
| Standard Number | |
| Grade | 4 8 10 A2-70 |
| Diameter | M12 M16 M20 M24 M30 M36 M42 M48 M56 M64 |
| Thread form | |
| Place of origin | Hebei, China |
| Brand | Muyi |
| Pack | Box+cardboard carton+pallet |
| The product can be customized | |
| 1. Fixed function: Chemical anchor bolts are mainly used for installing and fixing various components, such as post embedded parts in curtain wall and marble dry hanging construction, equipment installation, bridge guardrails, highway and building reinforcement and renovation, etc. It uses a special chemical adhesive to bond and fix the screw in the drilled hole of the concrete substrate, achieving anchoring of the fixed parts 2. Reinforcement function: In building reinforcement engineering, chemical anchor bolts are commonly used to improve the bearing capacity and stability of components. It can be used in conjunction with a concrete base to firmly fix the screw in the borehole through chemical adhesives, thereby enhancing the overall performance of the structure 3. Easy installation: The installation process of chemical anchor bolts is relatively fast, with rapid solidification and saving construction time. It does not require pre embedding and can be installed at any time during the construction process, suitable for various complex construction environments |
|
| Thread size d |
M12 | M16 | M20 | M24 | M30 | M36 | M42 | M48 | M56 | M64 | |
| D | Drilling diameter | 15 | 20 | 25 | 30 | 36 | 42 | 48 | 55 | 62 | 72 |
| t | Installation depth |
110 | 125 | 170 | 210 | 280 | 300 | 350 | 400 | 500 | 600 |
| h | Leakage length of bolt |
30 | 35 | 40 | 50 | 60 | 80 | 90 | 100 | 120 | 130 |
| Weight | With nuts and washers |
0.113 | 0.202 | 0.336 | 0.505 | 0.857 | 1.32 | 1.94 | 2.76 | 3.87 | 5.1 |
Solar panel aluminum middle clamps are designed for 30-50 mm solar modules with frames. The design is accurate. The middle clamp provides a solid connection between the panels and secures the panels to the guide rail.
1.Installation steps: ① Punch a hole ② Hammer the casing into the air ③ Screw the screw into the wall anchor ④ Installation is complete 2.Scope of application: Suitable for home decoration, industrial building materials, medical equipment, etc. 3.Product features: small and light, easy to carry, easy to take, strong and durable
1. Core type expansion bolt is a common connector, widely used in construction, bridge, mechanical equipment and other fields. It has the advantages of simple installation, high bearing capacity, good seismic performance and so on 2 Core expansion is mainly used in buildings to install suspended ceilings, walls, steel structures, wire trough pipe supports, air pipes, door and window frames and other places that need to be fixed. The expansion anchor has the characteristics of simple installation, reliable, strong bearing capacity and wide application range. At the same time, it can also adjust the distance between the fixed object and the substrate by tightening the screws.
1.The head of the bolt is spherical with holes, the spherical surface is smooth, the installation of the Eye Bolts is relatively simple, and it is often used for the occasion of opening and disassembling or the tooling assembly.The thread precision of the Eye Bolts is high, which can improve the quality of the whole workpiece as an accessory. 2.Eye Bolts are widely used in: low temperature and high pressure valves, pressure pipelines, fluid engineering, oil drilling and production equipment, oilfield equipment and other fields, often in the disconnecting occasions or tools such as the valve industry, folding bicycles, strollers are used, because the use of Eye Bolts is convenient and fast, and the use of matching nuts plays the role of connection fastening, a wide range of applications.
1.Hexagonal bolts are widely used both indoors and outdoors. Outdoor applications are mostly for building installations, bridges and roads, and power facilities; indoor applications are mostly for mechanical equipment, medical equipment, and electronic equipment. 2.When hexagonal bolts are used in electronic equipment, medical equipment, and other places, stainless steel hexagonal bolts are generally selected because the surface color of stainless steel is more beautiful and the corrosion resistance is better, which can keep the machine beautiful for a long time. If it is a mechanical equipment with large vibration, it is recommended to choose high-strength hexagonal bolts.
1. Fixation and connection: The main function of U-bolts is to fix and connect various equipment or objects. Due to its unique U-shaped design, it can firmly secure tubular or sheet-like objects, ensuring that they do not loosen or move during use. For example, in the automotive industry, U-bolts are commonly used to connect and secure steel plate springs to maintain the stability of the car chassis 2. Able to withstand multiple forces: U-bolts can withstand tensile and shear forces, and have strong vibration resistance. This means that it can maintain stability under different stress conditions, making it suitable for applications that require high stability. For example, in bridge, tunnel, and railway construction, U-bolts are widely used to ensure the stability and safety of the structure In summary, U-bolts play an important role in fixing, connecting, withstanding various forces, space utilization, and wide application fields. Its design and material selection make it one of the indispensable fasteners in many industries.
Hexagonal expansion stainless steel is widely used in steel structures, mechanical equipment, bridge engineering, construction engineering, power equipment, subway engineering and other fields. It is suitable for steel, brick walls, concrete and other materials with hollow or solid substrates, and has strong adaptability and reliability.
DIN127 spring washers are mainly used in bolt connections, especially in bolt connections with a strength grade of 5.8 or below. Its main purpose is to prevent bolt loosening by increasing the axial rebound force to compensate for the loss of preload force caused by compression, thereby preventing the loosening of threaded connections.
1. How to use：When using the wedge anchor, you need to first use an impact electric drill to drill a hole of the corresponding size on the fixed body, then install the bolt and expansion tube into the hole, and tighten the nut to expand the bolt, expansion tube, mounting piece and fixed body into one. 2. Characteristics: Wedge Anchors do not have high requirements for the depth and cleanliness of concrete cavities and are easy to install. 3. Application: Wedge anchors are usually used in heavy-duty facilities and are suitable for concrete and dense natural stone, metal structures, metal profiles, base plates, support plates, brackets, railings, windows, curtain walls, machines, beams, girders, brackets, etc.
1. The eye lifting nut is a part that is used to tighten the nut together with the bolt or screw. It is an essential component for all manufacturing machinery.There is a thread under the nut, which can be drilled according to its different specifications and fixed with the screw.Eye lifting nuts are often used in conjunction with external threaded columns to lift various equipment, such as molds, chassis, motors, etc. 2. Wide application: Eye lifting nuts are widely used in many fields to provide safe and reliable connection, such as industrial lifting, aerospace, construction engineering and steel structure.
DIN125 gaskets are mainly used to connect two objects, fill gaps, and play a role in sealing, supporting, and fastening. It is widely used in various mechanical equipment, pipeline systems and other connections, with good sealing performance and mechanical strength.
1. T-block fixture is a commonly used mechanical fixture, mainly used for fixing and processing workpieces. According to the shape and processing requirements of the workpiece, the T-block fixture can be flexibly assembled to meet the needs of different scenarios. 2. Widely used : T-block fixture is widely used in instruments, meters, telecommunications, electronics industry and other fields. In the process of machine tool processing, such as milling, planer, etc., the T-block fixture can improve the processing
DIN125 gaskets are mainly used to connect two objects, fill gaps, and play a role in sealing, supporting, and fastening. It is widely used in various mechanical equipment, pipeline systems and other connections, with good sealing performance and mechanical strength.
DIN935-1 hexagonal slotted nuts are mainly used to fix the front and rear axles of vehicles. By tightening the screws that pass through the front and rear axles, the frame and tires are fixed together. In order to prevent the nut from loosening, it is usually fixed by using an open-ended pin that passes through the groove of the slotted nut. The open-ended pin needs to pass through the middle of the wheel axle screw, and usually both ends of the wheel axle screw need to be drilled. The diameter of the hole and the width and depth of the slotted nut groove determine what specification of open-ended pin is selected.
As a common fastener, square head bolt is a special type of bolt with a square head and unique shape and characteristics. It is widely used in mechanical manufacturing, construction industry, automobile manufacturing and other fields. 1. Mechanical manufacturing: Square head bolts are widely used in the field of mechanical manufacturing, such as mechanical equipment, machine tools, transmission devices, etc. 2. Construction industry: In the construction field, square head bolts are commonly used to fix various components such as beams, slabs, columns, etc. 3. Automotive manufacturing: In the process of automotive manufacturing, square head bolts are used to secure automotive components such as engines, transmissions, etc.
1. Tire wire anchor is a kind of fastener often encountered in daily life, mainly used for fixing. 2. Application: Tire wire anchors are usually used in heavy-load facilities with high tension and shear forces. They are suitable for concrete and dense natural stone, metal structures, metal profiles, base plates, support plates, brackets, railings, windows, curtain walls, machines, beams, girders, brackets, etc.
