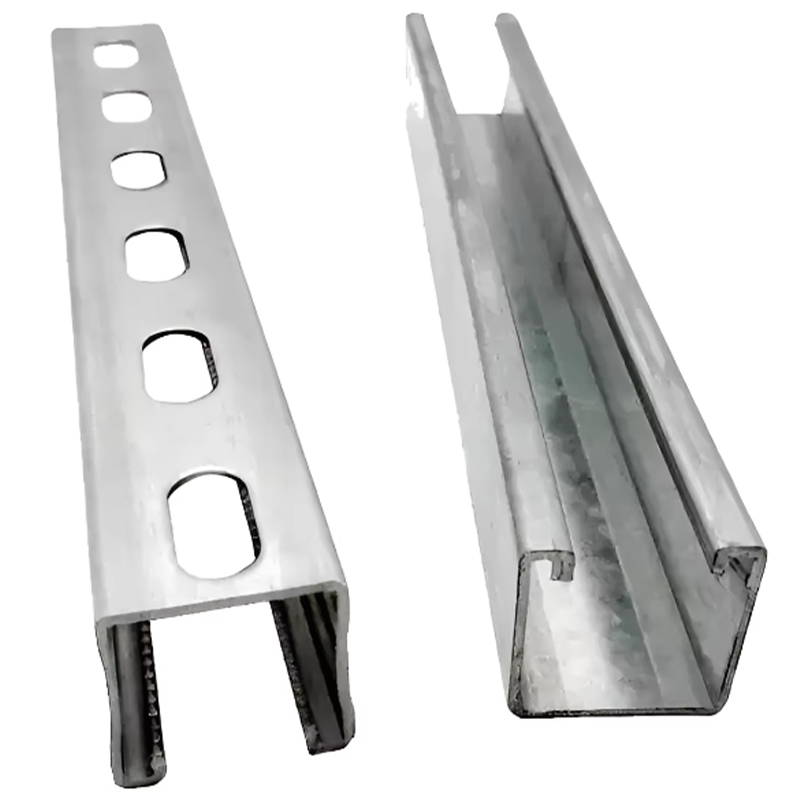

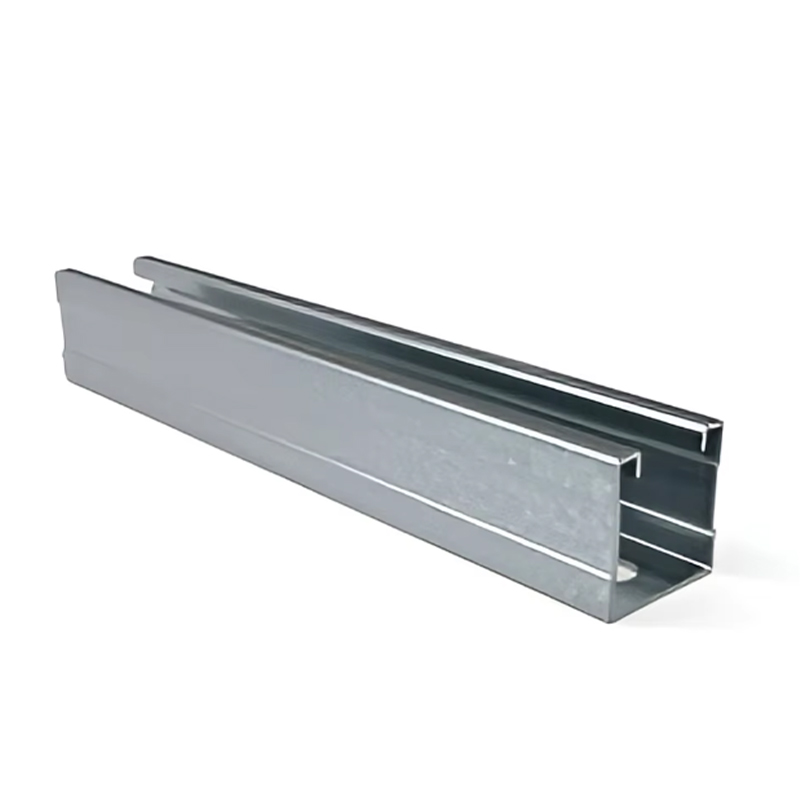

1. This Strut Channel Support Solar Panel Bracket features a sturdy steel construction, ensuring a long-lasting and reliable mounting solution for solar panel system.

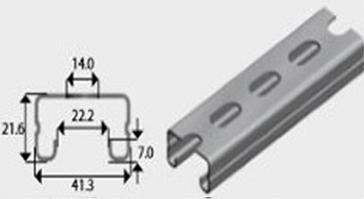

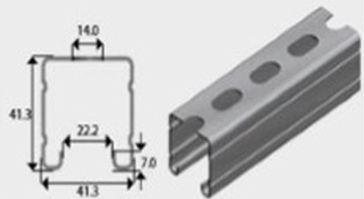

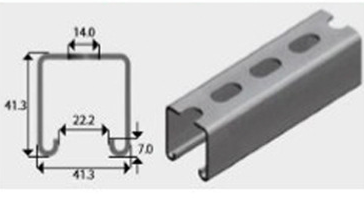

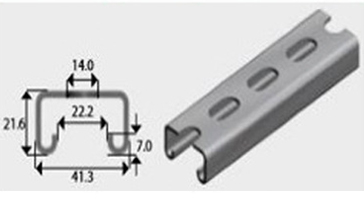

3. Wide application: The cross-sectional shape of c shape u strut channel steel gives it excellent strength and rigidity, and has good compressive resistance. C shape u strut channel steel is widely used in building structures, supporting structures, and machinery manufacturing.
| Product Name | C Shape U Strut Channel Steel |
| Material | Carbon steel, Stainless steel |
| Surface Finish | Yellow zinc, Blackened, Blue and white zinc, Bleached |
| Colour | Yellow, Black, Blue White, White |
| Standard Number | DIN,ASME,ASNI,ISO,GB |
| Grade | 4 8 10 A2-70 |
| Perforated Or Not | Is Perforated |
| Place of origin | Hebei, China |
| Brand | Muyi |
| Pack | Box+cardboard carton+pallet |
| The product can be customized | |
| 1. This Strut Channel Support Solar Panel Bracket features a sturdy steel construction, ensuring a long-lasting and reliable mounting solution for solar panel system.
3. Wide application: The cross-sectional shape of c shape u strut channel steel gives it excellent strength and rigidity, and has good compressive resistance. C shape u strut channel steel is widely used in building structures, supporting structures, and machinery manufacturing. |
|
The function of the forced expansion fastening bolt is to expand the expansion sheet by knocking, thereby fixing the object on the wall.
GB855 Tab Washers With Long Tab And Wing are mainly used to prevent bolts or nuts from loosening, and are commonly used in mechanical connections that require high reliability and stability. Its structural feature is that one ear is folded towards the bolt head, and the other ear is folded towards the connecting piece (with a small hole on the connecting piece), achieving the anti loosening function of the bolt through this design.
Stud is used to connect the fixed link function of the machine, both ends have threads, the middle is a screw, there are thick and thin. The thick one is called the thick rod or type A, and the thin one is called the thin rod or type B. Mainly used for connecting parts too thick do not use bolts or due to frequent disassembly should not use screw connection occasions, the stud is usually one end screwed into the screw hole, one end is connected with a nut. Each end of an equal length stud is configured with nuts. Generally used in mining machinery, bridge construction, automobiles, motorcycles, boiler steel structure, hanging tower, long-span steel structure and large buildings, flange connectors, machinery and equipment, pipelines, pump plants, motor plants, construction projects, sewage pipes, machine tools, engines and so on.
Drop in anchors are mainly used for situations where the embedded depth is shallow, by tightening the nut to expand the expansion tube and achieve fastening. This type of screw is suitable for concrete substrates, easy to install, and has high bearing capacity.
DIN928 welded square nuts are widely used in multiple fields, including mechanical manufacturing, automotive industry, aerospace, photovoltaics, transportation, construction, and more. The characteristics of these application areas require high-strength and reliable fasteners, and DIN928 welded square nuts precisely meet these requirements. It can withstand high-strength tensile and shear forces, suitable for situations that require strong forces and vibrations. The design of the four corners provides better welding performance, making the connection more secure and reliable. It can be installed through welding or threaded connection, making installation simple and convenient. Suitable for various industrial fields, ensuring stability and reliability of connections.
1. Metal-frame anchor are mainly used for expansion anchors of doors and windows. The product is mainly composed of expansion tube screw taper nut.It can firmly fix machines, doors and windows, structural parts, equipment or various appliances on walls, bases or concrete foundations. 2. Advantage: Metal frame anchors have many advantages such as simple installation, firm fixation and convenient construction. 3. Application: Metal frame anchors are widely used in many industries, such as door and window installation, floor installation, fixing heavy objects, etc. In the decoration industry, they can be used to fix decoration materials.
1. Determine bearing capacity: The diameter of the nut is directly related to its bearing capacity. Generally speaking, the larger the diameter, the stronger the load-bearing capacity of the nut. This means that when subjected to high loads, it is necessary to choose nuts with larger diameters 2. Impact on installation space: The diameter of the nut can also affect its installation space requirements. When designing mechanical structures, it is necessary to consider the diameter of the nut to ensure sufficient space for installation and operation. 3. Standardized production: The DIN934 standard specifies the diameter of nuts, which helps to achieve standardized production of nuts. Standardized production not only improves production efficiency, but also ensures the quality and interchangeability of nuts. The diameter parameter in DIN934 standard plays a key role in the application of nuts, which not only affects the function and performance of nuts, but also relates to the stability and safety of the entire mechanical structure.
1. T-block fixture is a commonly used mechanical fixture, mainly used for fixing and processing workpieces. According to the shape and processing requirements of the workpiece, the T-block fixture can be flexibly assembled to meet the needs of different scenarios. 2. Widely used : T-block fixture is widely used in instruments, meters, telecommunications, electronics industry and other fields. In the process of machine tool processing, such as milling, planer, etc., the T-block fixture can improve the processing
1.A washer is a seal that fills the gap between two mating surfaces, allowing the two workpieces to be connected together without leakage even when compressed. 2.A washer can fill some irregularities on the surface, allowing for some imperfections in the mating surfaces of the workpieces. washer are generally made by cutting and splitting thin sheets. 3.Generally speaking, the ideal washer material is one that allows a certain degree of deformation so that it can deform and fill the corresponding space (including some slight irregularities) during assembly. Some washer require the addition of sealants directly to the surface in order for the gasket to work properly.
The outer tongue stop washer can distribute the load on the screw or bolt to a larger surface, thereby reducing the possibility of loosening and improving the reliability of the connection. During the assembly process, the outer tongue stop washer can serve as a buffer and protection to prevent scratches and damage to threads, surfaces, and parts.
1. A threaded rod, also known as a stud, is a relatively long rod that is threaded on both ends; the thread may extend along the complete length of the rod.They are designed to be used in tension. 2. First, threaded rods can be used as transmission elements in mechanical devices. Second, threaded rods can also be used to fasten structures. In addition, threaded rods can also be used in adjustment devices. In addition, threaded rods also play an important role in the field of scientific experiments and measurements. 3. Wide application: Threaded rods are usually used in conjunction with nuts. By rotating the threaded rods, the purpose of clamping, fixing or adjusting objects can be achieved.It is widely used in engineering, construction and scientific experiments. Its main function is to support or connect mechanical components. Through threaded rods, mechanical components can be stably supported, reliably connected, powered, and precisely adjusted.
1. Fixation and connection: The main function of U-bolts is to fix and connect various equipment or objects. Due to its unique U-shaped design, it can firmly secure tubular or sheet-like objects, ensuring that they do not loosen or move during use. For example, in the automotive industry, U-bolts are commonly used to connect and secure steel plate springs to maintain the stability of the car chassis 2. Able to withstand multiple forces: U-bolts can withstand tensile and shear forces, and have strong vibration resistance. This means that it can maintain stability under different stress conditions, making it suitable for applications that require high stability. For example, in bridge, tunnel, and railway construction, U-bolts are widely used to ensure the stability and safety of the structure In summary, U-bolts play an important role in fixing, connecting, withstanding various forces, space utilization, and wide application fields. Its design and material selection make it one of the indispensable fasteners in many industries.
1.the small yellow croaker expansion screw is relatively strong, the small yellow croaker expansion screw tension is strong, can better play a fixed and stable role. When installing, be sure to tighten, screw in place, and then beat with a hammer, not only beautiful knot reliable with firm and stable fixed stable effect is particularly good. 2. especially suitable for hanging, arch structure, outdoor walls, stairs, radiators and other different occasions of columns, Angle steel, beams and other parts fixed and supported. The crosshead expansion screw is a kind of expansion screw, which is characterized by a variety of dimensions, convenient installation and firm fixing. Small yellow croaker expansion screw, the appearance is like a small fish, its main feature is shaped like a “hollow bolt” and has good expansion.
1. Increase the contact surface and force area: One end of the hexagonal flange nut has a wide flange (i.e. flange surface), which increases the contact area between the nut and the workpiece. According to the principles of mechanics, the larger the force area, the smaller the pressure on the force surface, thereby improving the load-bearing capacity and stability of the nut. 2. Sealing: Due to the hexagonal flange nut having a flange surface fixed on one end of the nut body and a cap fixed on the other end, this design has good sealing performance during use, which can effectively prevent harmful substances such as rainwater, moisture, dust, etc. from entering the nut body, prevent the nut body from rusting, and thus extend its service life. 3. Wide application: Hexagonal flange nuts are widely used in various industrial and civilian fields. For example, they are commonly used in applications such as pipeline connections, stamped parts, and castings that require increased contact surface stability. In addition, hexagonal flange nuts are also used in heavy machinery, automotive engines, and other applications that require high preload force and good anti loosening performance.
DIN937 hexagonal slotted thin nuts are mainly used for machines and equipment that require frequent disassembly, especially in situations where space is limited. This type of nut has six parallel short grooves at its bottom, which can be rotated using a wrench or pliers, making it easy to disassemble and install
1It is mainly used to fix pipes such as water pipes or sheet springs such as automobiles, and its material characteristics, density, bending strength, impact toughness, compression strength, elastic modulus, tensile strength, temperature resistance and color are determined according to the use environment 2. U-type is generally used in trucks, it is used to stabilize the chassis and frame of the car. For example, leaf springs are connected with U-bolts. U-bolt is widely used, the main uses: construction installation, mechanical parts connection, vehicles, ships, Bridges, tunnels and railways.
